F/UTP CAT 5E BC PE Twisted Pair Steel Messenger Cable

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: CE, RoHS, VDE, UL
Model Number: F/UTP CAT 5E PE with Messenger
Minimum Order Quantity: 10 KM
Packaging Details: 305M, 1000FT, Pull Box, Pallet
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: 0.50±0.005mm Solid Bare Copper Pairs: 4 Pairs
Insulation: 1.03±0.05 Mm HDPE Colors: Blue-White/Blue,Orange-White/Orange
Shielded 1: PET Foil Drain Wire: 0.40±0.005mm TC
Overall Shield: Al/PET Foil,Foil Face Out Rip Cord: Cotton Or Fibre
Out Jacket: 6.3±0.2 Mm PE Messenger: 1.2mm Or 7×0.4mm GSW
High Light:

CAT 5E Steel Messenger Cable

,

Twisted Pair Steel Messenger Cable

,

CAT5E Network Cable PET Foil


Product Description

F/UTP CAT 5E BC PE Twisted Pair Steel Messenger Cable
F/UTP CAT 5E PE with Messenger (NO. 7112141)

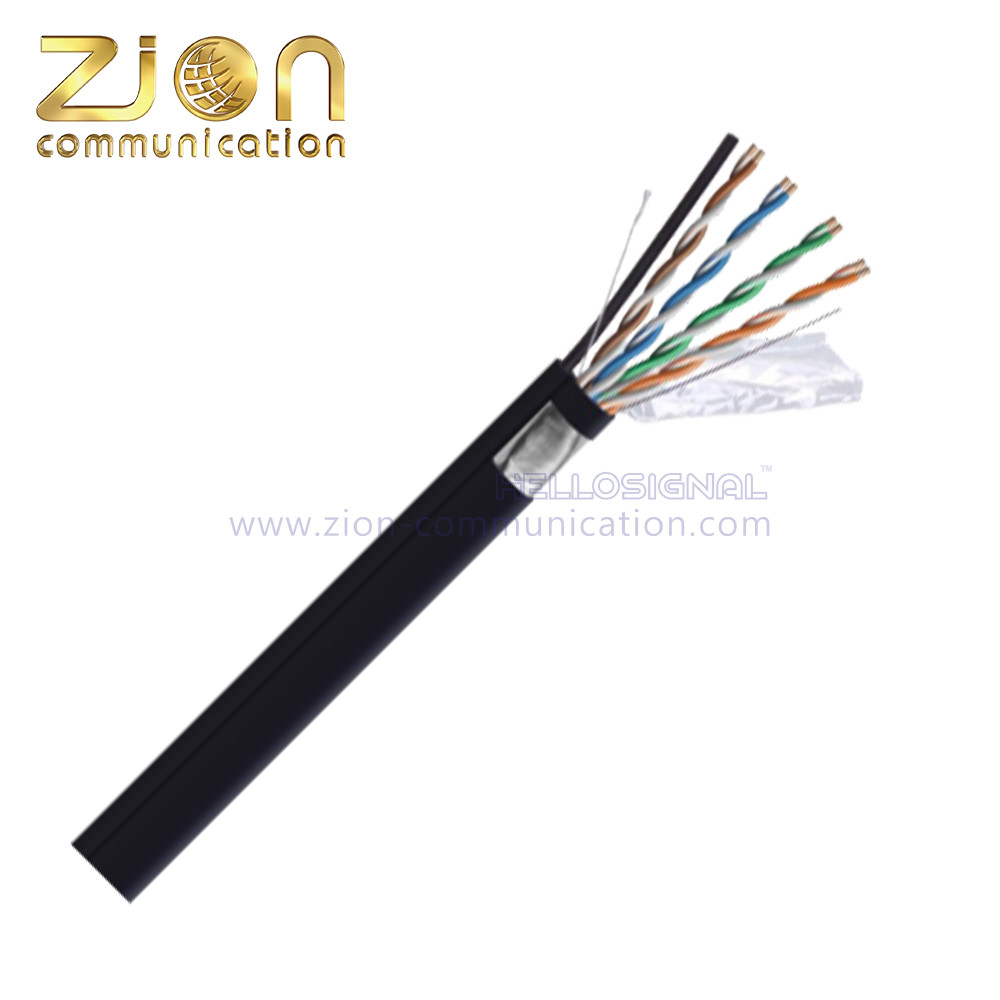

    F/UTP CAT 5E BC PE Twisted Pair Steel Messenger Cable 0     F/UTP CAT 5E BC PE Twisted Pair Steel Messenger Cable 1
COMPLIANCE (Reference Standard and Certificates)
· ISO/IEC 11801-1 Ed.1.0
· ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D
· UL444,UL1581,UL1666,IEC60332-1,EN50399

Application Support
· 1000BASE-T , 100BASE-T , 10BASE-T
· 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4

ConstructionElectrical Characteristics
Conductor:0.50±0.005mm Solid Bare CopperDC Resistance<9.38 Ohms/100m @20℃
Pairs:4 PairsDC Resistance unbalance5% @ 20℃
Insulation:1.03±0.05 mm HDPEMutual Capacitance5.6 nF/100m
Insulation Colors:Blue-White/Blue,Orange-White/OrangeCharacteristic Impedance1 - 100 MHz : 100±15 Ohms
Green-White/Green,Brown-White/Brown100 - 350 MHz : 100±22 Ohms
Shielded 1:PET FoilMax Frequency100MHz
Drain Wire:0.40±0.005mm TCCapacitance Unbalance330 pF/100m
Overall Shield:Al/PET Foil,Foil face outNVP(传输速率)67%
Rip Cord:Cotton or FibreDelay Skew≤ 45ns/100m
Out Jacket:6.3±0.2 mm PE
Messenger:1.2mm or 7×0.4mm GSW
※ GSW= Galvanized steel wire


Performance Characteristics
FrequencyRL
(Min.)
Insertion Loss(Max.)Propagation Delay (Max.)Delay Skew(Max.)NEXT
(Min.)
PSNEXT (Min.)ELNEXT (Min.)PSELNEXT (Min.)
MHzdBdB/100mns/100mns/100mdBdBdB/100mdB/100m
120.02.2570.045.065.062.061.061.0
423.04.2552.045.056.053.048.048.0
1025.06.5545.045.050.047.041.041.0
1625.08.4543.045.047.044.036.036.0
2025.09.3542.045.045.042.034.034.0
31.2523.611.6540.045.042.039.031.031.0
62.521.517.0539.045.038.035.025.025.0
10020.122.0538.045.035.032.021.021.0
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations
MarkingHELLOSIGNAL NO.7112141 F/UTP CAT5E 4PR 24AWG PE with Messenger ...305M(1000FT) (or Per customer's request)
