| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL |
| Model Number: | F/UTP CAT6 LSZH ARMOUR LSZH |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 305M, 1000FT, Pull Box, Pallet |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | 0.57±0.005mm/23AWG Solid Bare Copper | Pairs: | 4 Pairs |
|---|---|---|---|
| Insulation: | HDPE, O.D.: 1.01±0.03 Mm, | Colors: | White, Blue, Orange, Green, Brown |
| Shield: | AL/PET Foil | Inner Jacket: | LSZH; O.D.:7.2±0.5mm; Thickness:0.9mm (Average) |
| Armored: | Corrugated Steel Tube; Thickness:0.15mm | Out Jacket: | LSZH; O.D.:11.7±0.5mm; Thickness:1.5mm (Average) |
| High Light: | CAT6 Network Cable Outdoor,LSZH Cat6 Lan Cables,1000m Cat6 Lan Cables |
||

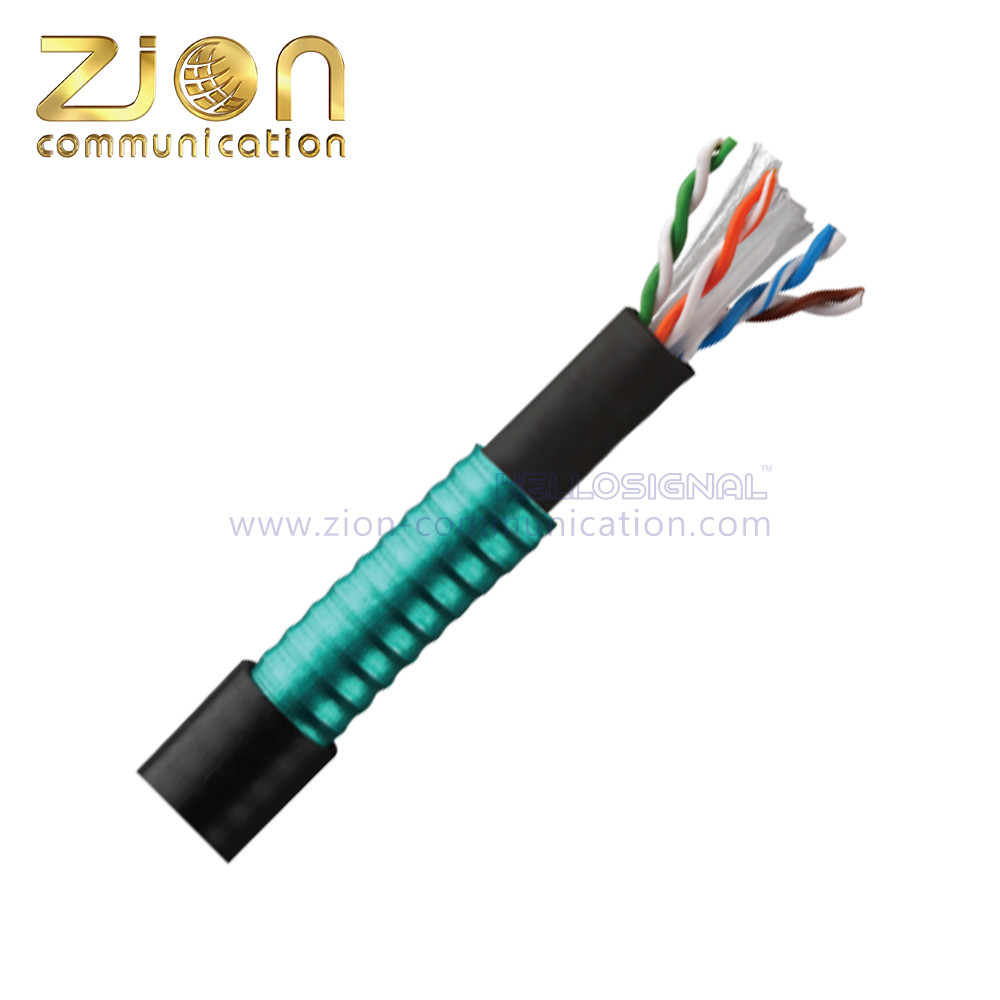

Cat6 Outdoor Jelly Filled Copper Network Cable Categoria F/UTP UTP Cat6 Gel Roll Lan Cables LSZH PVC 1000m
| F/UTP CAT6 LSZH ARMOUR LSZH NO.7112254 |
||||||||
| |
||||||||
| Construction | Electrical Characteristics (20℃) | |||||||
| Conductor: | 0.57±0.005mm/23AWG solid bare copper | Linear Resistance: | ≤9.5Ω/100m | |||||
| Pairs: | 4 Pairs | Insulation Resistance: | ≥5000MΩ.km | |||||
| Insulation: | HDPE, O.D.: 1.01±0.03 mm, | Characteristic Impedance: | 100±15Ω | |||||
| Insulation Colors: | White, Blue, Orange, Green, Brown | Dielectric Strength: | DC.1KV for 1min no breakdown | |||||
| Shield: | AL/PET Foil | Complies with Class E & Cat 6 standards,Supports applications up to 250MHz. | ||||||
| Inner Jacket: | LSZH; O.D.:7.2±0.5mm; Thickness:0.9mm (Average) |
|||||||
| Armored: | corrugated steel tube; Thickness:0.15mm |
|||||||
| Out Jacket: | LSZH; O.D.:11.7±0.5mm; Thickness:1.5mm (Average) |
|||||||
| Performance Characteristics (20℃,100m) | ||||||||
| Frequency | ATT (Max.) |
Return Loss (Min.) | NEXT (Min.) |
PS NEXT (Min.) |
EL FEXT (Min.) |
PS ELFEXT (Min.) |
||
| MHz | dB/100m | dB | dB | dB | dB/100m | dB/100m | ||
| 1.0 | 2.0 | 20.0 | 75.3 | 72.3 | 67.8 | 64.8 | ||
| 4.0 | 3.8 | 23.0 | 66.3 | 63.3 | 56.0 | 53.0 | ||
| 8.0 | 5.3 | 24.5 | 61.8 | 58.8 | 49.9 | 46.9 | ||
| 10.0 | 6.0 | 25.0 | 60.3 | 57.3 | 48.0 | 45.0 | ||
| 16.0 | 7.6 | 25.0 | 57.2 | 54.2 | 43.9 | 40.9 | ||
| 20.0 | 8.5 | 25.0 | 55.8 | 52.8 | 42.0 | 39.0 | ||
| 25.0 | 9.5 | 24.3 | 54.3 | 51.3 | 40.0 | 37.0 | ||
| 31.25 | 10.7 | 23.6 | 52.9 | 49.9 | 38.1 | 35.1 | ||
| 62.5 | 15.4 | 21.5 | 48.4 | 45.4 | 32.1 | 29.1 | ||
| 100.0 | 19.8 | 20.1 | 45.3 | 42.3 | 28.0 | 25.0 | ||
| 200.0 | 29.0 | 18.0 | 40.8 | 37.8 | 22.0 | 19.0 | ||
| 250.0 | 32.8 | 17.3 | 39.3 | 36.3 | 20.0 | 17.0 | ||
| Order Informations | ||||||||
| Marking | HELLOSIGNAL F/UTP CAT6 LSZH ARMOURED LSZH...305M(1000FT) (or Per customer's request) |
|||||||
