| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL |
| Model Number: | DUAL S/FTP CAT 7A |
| Minimum Order Quantity: | 30.5 KM |
| Packaging Details: | 305M, 1000FT, Pull Box, Pallet |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | 0.58±0.005mm Solid Bare Copper | Pairs: | 4 Pairs |
|---|---|---|---|
| Insulation: | 1.35±0.05 Mm Foam PE | Color: | Blue-White/Blue,Orange-White/Orange |
| Shield: | AL/PET Foil,100% Coverage | Overall Shield: | Aluminum Foil |
| Braiding: | TC , 55% Coverage | Ripcord: | Yes |
| Out Jacket: | 8.0mm×8.0mm LSZH | ||
| Highlight: | S/FTP Cat 7 Network Cable,Dual Cat 7 Network Cable,Twisted Pair Installation Cat 7 Network Cable |
||

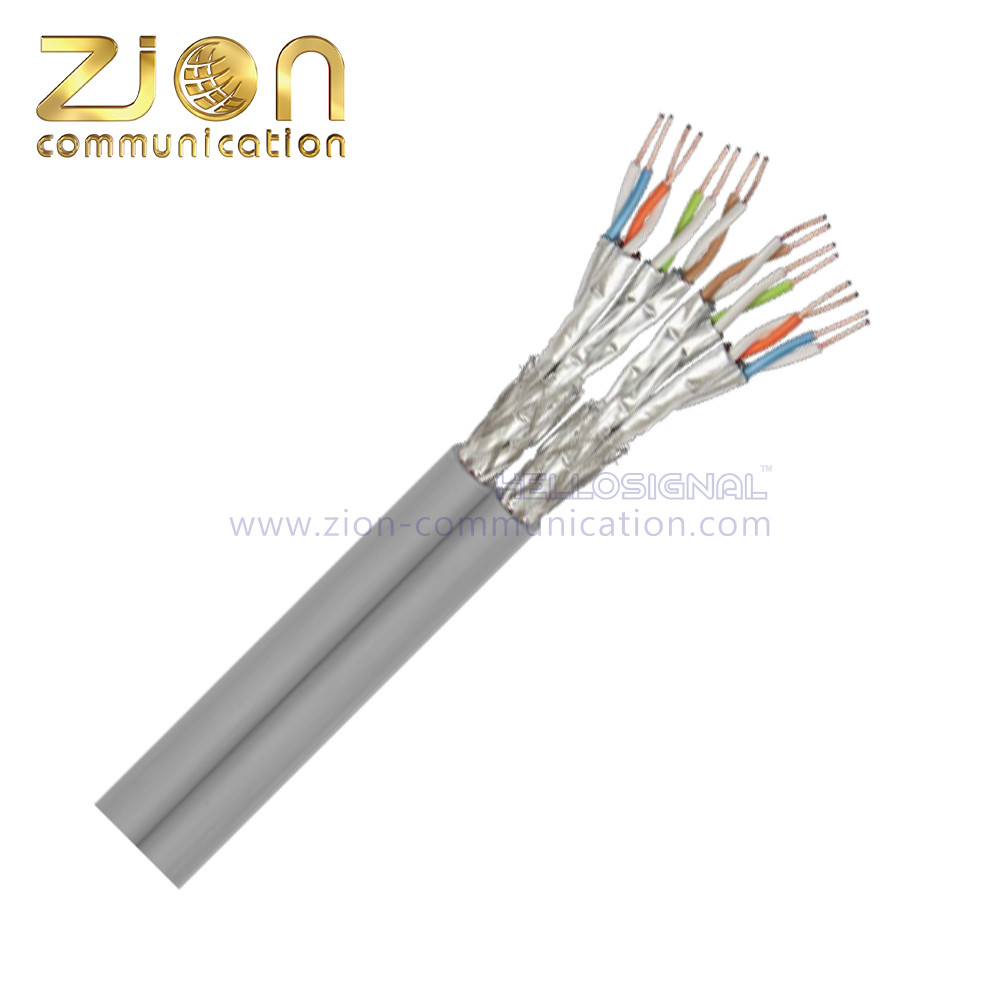

| S/FTP Dual Cat 7 Bc LSZH Twisted Pair Installation Cables | |||||||||||||||||||||||||
| DUAL S/FTP CAT 7A 1000Mhz LSZH FIG-8 (NO. 2×7112426) | |||||||||||||||||||||||||
| |
|||||||||||||||||||||||||
| COMPLIANCE (Reference Standard and Certificates) | |||||||||||||||||||||||||
| · ISO/IEC 11801-1 Ed.1.0 | |||||||||||||||||||||||||
| · ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D | |||||||||||||||||||||||||
| · UL444,UL1581,UL1666,IEC60332-1,EN50399 | |||||||||||||||||||||||||
| Application Support | |||||||||||||||||||||||||
| · 10GBASE-T , 1000BASE-T , 100BASE-T , 10BASE-T | |||||||||||||||||||||||||
| · 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4 | |||||||||||||||||||||||||
| Construction | Electrical Characteristics | ||||||||||||||||||||||||
| Conductor: | 0.58±0.005mm Solid Bare Copper | DC Resistance | ＜9.38 Ohms/100m @20℃ | ||||||||||||||||||||||
| Pairs: | 4 Pairs | DC Resistance unbalance | 2% @ 20℃ | ||||||||||||||||||||||
| Insulation: | 1.35±0.05 mm Foam PE | Mutual Capacitance | 5.6 nF/100m | ||||||||||||||||||||||
| Insulation Colors: | Blue-White/Blue,Orange-White/Orange | Characteristic Impedance | 1 - 100 MHz : 100±15 Ohms | ||||||||||||||||||||||
| Green-White/Green,Brown-White/Brown | 100 - 250 MHz : 100±22 Ohms | ||||||||||||||||||||||||
| Shielded : | AL/PET Foil,100% Coverage | 250 - 1000 MHz : 100±25 Ohms | |||||||||||||||||||||||
| Cover every pair | Max Frequency | 750MHz | |||||||||||||||||||||||
| Overall Shield: | Aluminum Foil | Capacitance Unbalance | ≤330 pF/100m | ||||||||||||||||||||||
| Braiding: | TC , 55% Coverage | NVP(传输速率) | 74% | ||||||||||||||||||||||
| Rip Cord: | Yes | Delay Skew | ≤ 25ns/100m | ||||||||||||||||||||||
| Out Jacket: | 8.0mm×8.0mm LSZH | ||||||||||||||||||||||||
| Performance Characteristics | |||||||||||||||||||||||||
| Frequency | RL (Min.) |
Insertion Loss(Max.) | ACR | PSACR | NEXT (Min.) | PSNEXT (Min.) | ACR-F | PS ACR-F | |||||||||||||||||
| MHz | dB | dB/100m | dB/100m | dB/100m | dB | dB | dB/100m | dB/100m | |||||||||||||||||
| 1 | 20/31.1 | 1.9/1.6 | 76.1/103.1 | 73.1/100.1 | 78/104.5 | 75/102.5 | 77/96.5 | 75/94.5 | |||||||||||||||||
| 4 | 23/34.1 | 3.5/3.1 | 74.6/102.2 | 71.6/99.2 | 78/104.5 | 75/102.5 | 77/96.5 | 75/94.5 | |||||||||||||||||
| 10 | 25/35.1 | 5.4/4.9 | 72.6/100.1 | 69.6/97.2 | 78/104.5 | 75/102.5 | 74/96.5 | 71/94.5 | |||||||||||||||||
| 16 | 25/35.1 | 6.8/6.3 | 71.2/99.5 | 68.2/96.2 | 78/104.5 | 75/102.5 | 70/96.5 | 67/94.5 | |||||||||||||||||
| 20 | 25/35.1 | 7.5/7.1 | 70.3/98.2 | 67.4/95.1 | 78/104.5 | 75/102.5 | 68/96.5 | 65/94.5 | |||||||||||||||||
| 31.25 | 23.6/34.1 | 9.6/8.9 | 68.5/96.5 | 65.5/93.1 | 78/104.5 | 75/102.5 | 64/93.5 | 61/91.5 | |||||||||||||||||
| 62.5 | 21.5/34.1 | 13.7/12.8 | 64.3/92.3 | 61.3/89.1 | 78/104.5 | 75/102.5 | 58/88.5 | 55/86.5 | |||||||||||||||||
| 100 | 20.1/31.2 | 17.5/16.5 | 58.5/89.1 | 55.5/86.1 | 76/102.5 | 73/100.5 | 54/82.5 | 51/80.5 | |||||||||||||||||
| 200 | 18/29.5 | 25.3/23.5 | 46.2/79.5 | 43.2/77.2 | 71/102.5 | 68.5/100.5 | 48/78.5 | 45/75.5 | |||||||||||||||||
| 300 | 17.3/28.5 | 31.5/28.9 | 37.3/73.5 | 34.3/68.1 | 69/102.5 | 66.6/97.5 | 44/70.5 | 41/68.5 | |||||||||||||||||
| 400 | 17.3/28.5 | 36.9/33.1 | 30.1/62.5 | 27.1/60.1 | 67.5/94.5 | 64.5/93.5 | 39/70.5 | 39/59.5 | |||||||||||||||||
| 550 | 17.3/28.5 | 44.1/40.2 | 20.8/55.5 | 17.8/53.1 | 65/94.5 | 62.5/93.5 | 39/60.5 | 36.5/56.5 | |||||||||||||||||
| 600 | 17.3/28.5 | 44.2/41.7 | 18.1/53.1 | 15.1/51.5 | 64.5/95.5 | 61.5/93.5 | 38/55.5 | 35/53.5 | |||||||||||||||||
| 800 | 28.5 | 47.6 | 7.9/42.1 | 39.0 | 62.5/90.5 | 59.5/87.5 | 47.0 | 44.0 | |||||||||||||||||
| 1000 | 27.0 | 54.5 | 31.0 | 29.0 | 61.5/85.5 | 58.5/83.5 | 40.0 | 38.0 | |||||||||||||||||
| ※1200 | 27.0 | 59.8 | 20.0 | 17.0 | 80.0 | 77.0 | 35.0 | 33.0 | |||||||||||||||||
| ※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | |||||||||||||||||||||||||
| ※Note: Values for frequencies beyond 1000mHZ are for information only | |||||||||||||||||||||||||
| Order Informations | |||||||||||||||||||||||||
| Marking | HELLOSIGNAL NO.2×7112426 S/FTP CAT7A 1000Mhz 4PR 23AWG LSZH ...500M | ||||||||||||||||||||||||
