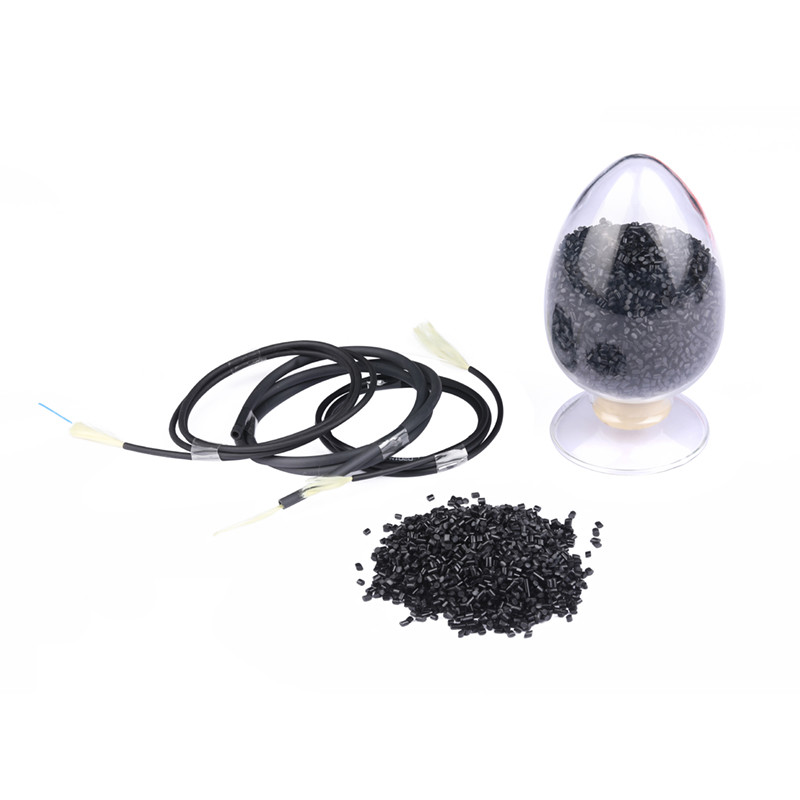

LSZH Compound For Lan Cable Coaxial Cable Indoor Optical Cable

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: CE,RoHS, VDE,UL,CUL,LPCB
Model Number: LSZH compound
Minimum Order Quantity: 1,000 PCS
Packaging Details: Carton
Delivery Time: Normally 15 days
Payment Terms: T/T,L/C
Supply Ability: 10*20’GP/Month
Detail Information
Lan Cable: 120m/min Coaxial Cable: 20m/min
Fiber Cable: 150m/min Outdoor Optical Fiber Cable: 7kg For 1h Under 130℃
Data Cable: IEC 60332-1 Lan Cable Separator: Oxygen Index >40
High Light:

LSZH Compound Cable Material

,

Lan Cable LSZH Compound

,

Coaxial Cable LSZH Compound


Product Description

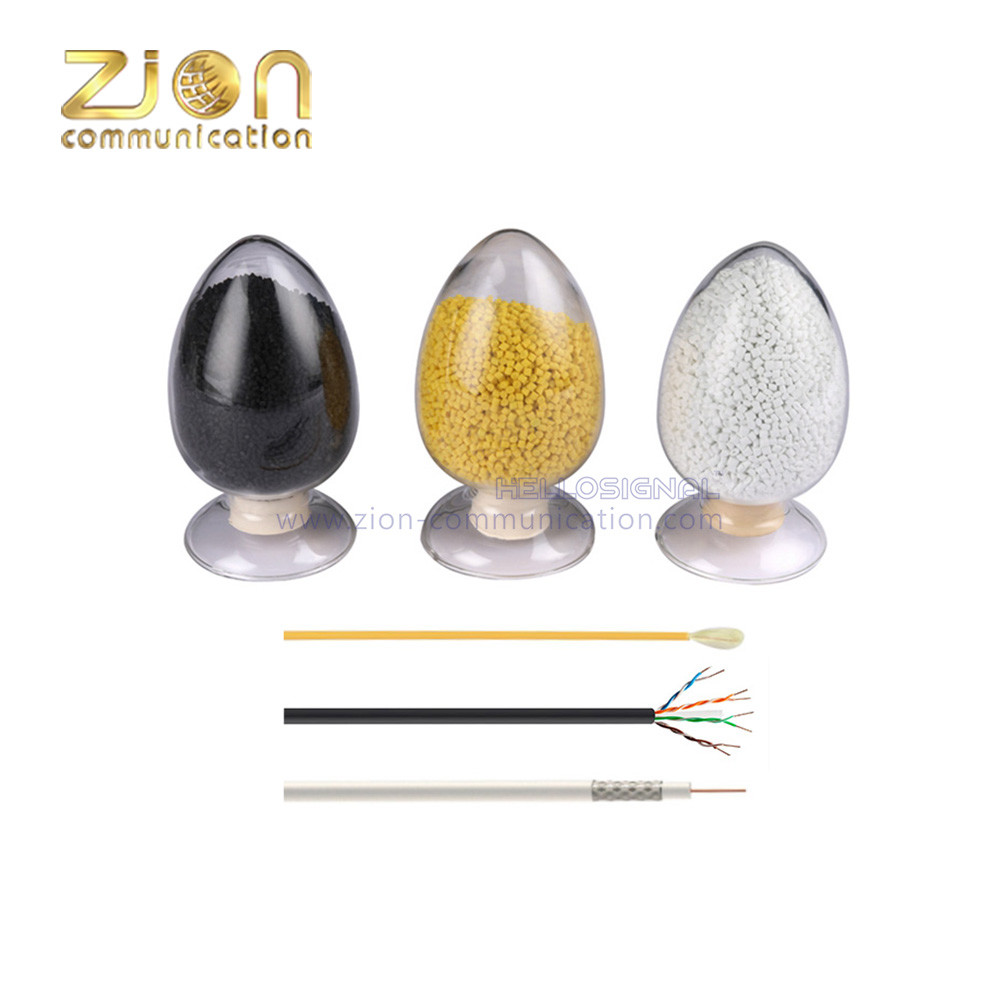

LSZH Compound For Lan Cable, Coaxial Cable, Indoor Optical Cable



LSZH compound for Communication Cables
Code.No Application Advantage
ZC-2901 lan cable, coaxial cable,
indoor optical cable
High-speed extrusion, the line speed to produce lan cable on the 70 machine can reach 120m/min
ZC-2901A lan cable, coaxial cable,
indoor optical cable
High-speed extrusion, the line speed to produce lan cable on the 70 machine can reach 20m/min;The CAT6 cable pass IEC 60332-1single vertical combustion test
ZC-2901M FTTH fiber cable The maximum line speed can be 150m/min of 70 machine, The surface is smooth
ZC-2901E Outdoor optical fiber cable High resistance to crack; heat shock with a load of 7kg for 1h under 130℃
ZC-2901F Tight buffer material for
optical fiber cable
The extruding speed can reach above 200m/min, The surface is smooth
ZC-2901G Coaxial cable, FTTH fiber cable The maximum line speed can be 130m/min of 70 machine, Pass IEC 60332-1single vertical combustion
ZC-2901H FTTH fiber cable The maximum line speed can reach 130m/min of 70 machine, the smooth surface; pass rate of single combustion test is over 80%
ZC-2901T FTTH fiber cable The maximum line speed can be 130m/min of 70 machine, the smooth surface; pass IEC 60332-1 single vertical combustion test; IEC 61034 light transmittance is over 80%
ZC-2902 Cable, lan cable, coaxial cable,
outdoor optical cable
Meet the YD1113-2015 standard and pass the full performance test
ZC-2902A Data cable, coaxial cable The lan cable U/UTP CAT6 can pass IEC 60332-1 single vertical combustion; the lan cable U/UTP CAT6 with flame retardant separator can pass bundle combustion A category of 60332-3-22
ZC-2902B Data cable, coaxial cable The lan cable U/UTP CAT6 can pass IEC 60332-1 single vertical combustion; the lan cable U/UTP CAT6 with flame retardant separator can pass bundle combustion category C of 60332-3-24 and CPR B2ca combustion
ZC-2902C Data cable, coaxial cable The lan cable U/UTP CAT6 can pass IEC 60332-1 single vertical combustion; the lan cable U/UTP CAT6 with flame retardant separator can pass bundle combustion C category of 60332-3-24 and CPR Cca combustion
ZC-2902D Data cable, coaxial cable The lan cable U/UTP CAT6 can pass IEC 60332-1 single vertical combustion; the lan cable U/UTP CAT6 with flame retardant separator can pass CPR Dca combustion
ZC-2903 lan cable separator High flame retardant, oxygen index >40, Use with high flame retardant data cable
