Grand Ease Ethernet Cable F /UTP CAT5E 4P 24AWG PE Sheath Outdoor 305M

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: CE, RoHS, VDE, UL
Model Number: F/UTP CAT5E CABLE
Minimum Order Quantity: 10 KM
Packaging Details: 305M, 1000FT, Pull Box, Pallet
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: 0.50±0.005mm Solid Bare Copper Pairs: 4 Pairs
Insulation: 1.03±0.05 Mm HDPE Colors: Blue-White/Blue,Orange-White/Orange
Shielded 1: PET Foil Drain Wire: 0.40±0.005mm TC
Overall Shield: Al/PET Foil,Foil Face Out Rip Cord: Cotton Or Fibre
Out Jacket: PE , PVC CM UL/ETL , LSZH PVC , PVC CMR UL/ETL
High Light:

Grand Ease Ethernet Cable

,

PE Sheath CAT5E Ethernet Cable

,

24AWG CAT5E Ethernet Cable


Product Description


F/UTP CAT5E CABLE

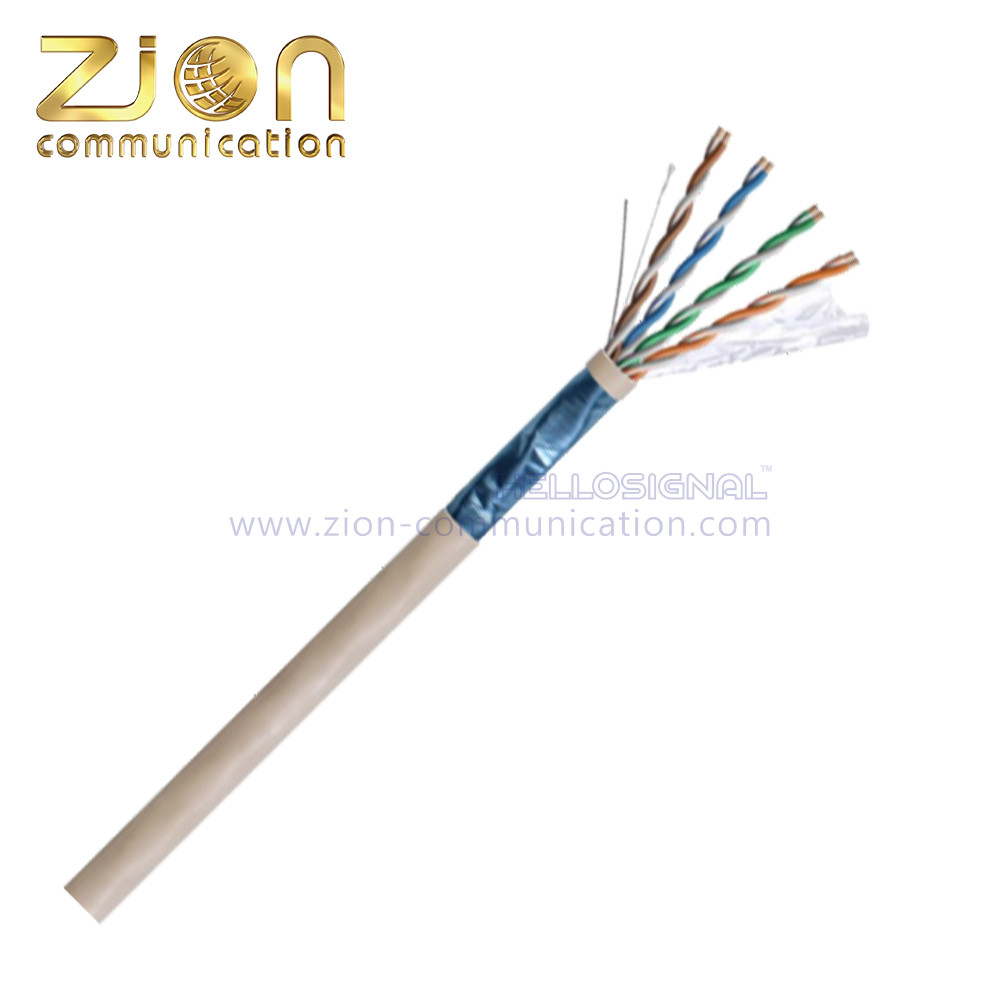

               Grand Ease Ethernet Cable F /UTP CAT5E 4P 24AWG PE Sheath Outdoor 305M 0                     Grand Ease Ethernet Cable F /UTP CAT5E 4P 24AWG PE Sheath Outdoor 305M 1
COMPLIANCE (Reference Standard and Certificates)
· ISO/IEC 11801-1 Ed.1.0
· ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D
· UL444,UL1581,UL1666,IEC60332-1,EN50399

Application Support
· 1000BASE-T , 100BASE-T , 10BASE-T
· 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4

Construction Electrical Characteristics
Conductor: 0.50±0.005mm Solid Bare Copper DC Resistance <9.38 Ohms/100m @20℃
Pairs: 4 Pairs DC Resistance unbalance 5% @ 20℃
Insulation: 1.03±0.05 mm HDPE Mutual Capacitance 5.6 nF/100m
Insulation Colors: Blue-White/Blue,Orange-White/Orange Characteristic Impedance 1 - 100 MHz : 100±15 Ohms
Green-White/Green,Brown-White/Brown 100 - 350 MHz : 100±22 Ohms
Shielded 1: PET Foil Max Frequency 100MHz
Drain Wire: 0.40±0.005mm TC Capacitance Unbalance 330 pF/100m
Overall Shield: Al/PET Foil,Foil face out NVP(传输速率) 0.67
Rip Cord: Cotton or Fibre Delay Skew ≤ 45ns/100m
Out Jacket: PE , PVC CM UL/ETL , LSZH
PVC , PVC CMR UL/ETL
DC Resistance <9.38 Ohms/100m @20℃



Performance Characteristics
Frequency RL
(Min.)
Insertion Loss(Max.) Propagation Delay (Max.) Delay Skew(Max.) NEXT
(Min.)
PSNEXT (Min.) ELNEXT (Min.) PSELNEXT (Min.)
MHz dB dB/100m ns/100m ns/100m dB dB dB/100m dB/100m
1 20.0 2.2 570.0 45.0 65.0 62.0 61.0 61.0
4 23.0 4.2 552.0 45.0 56.0 53.0 48.0 48.0
10 25.0 6.5 545.0 45.0 50.0 47.0 41.0 41.0
16 25.0 8.4 543.0 45.0 47.0 44.0 36.0 36.0
20 25.0 9.3 542.0 45.0 45.0 42.0 34.0 34.0
31.25 23.6 11.6 540.0 45.0 42.0 39.0 31.0 31.0
62.5 21.5 17.0 539.0 45.0 38.0 35.0 25.0 25.0
100 20.1 22.0 538.0 45.0 35.0 32.0 21.0 21.0
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Jacket Physical Properties
Jacket
Aging Cold Bend
  Item Aging Period 100°*24H*7D Cold Period -20±2°C*4H
    Before Aging After Aging Bend Radius 8*Cable O.D.
PVC Tensile Strength ≥13.5 Mpa ≥12.5 Mpa No Visible Cracks
Elongation ≥150 % ≥125 %
LSZH Tensile Strength ≥10.0 Mpa ≥8.0 Mpa No Visible Cracks
Elongation ≥125% ≥100%
PE Tensile Strength ≥10.0 Mpa ≥8.0 Mpa No Visible Cracks
Elongation ≥350 % ≥350 %

P/N Description
NO.7112111 F/UTP CAT5E 4PR 24AWG PE ...305M(1000FT)
NO.7112112 F/UTP CAT5E 4PR 24AWG PVC ...305M(1000FT)
NO.7112113 F/UTP CAT5E 4PR 24AWG PVC CM UL/ETL ...305M(1000FT)
NO.7112114 F/UTP CAT5E 4PR 24AWG PVC CMR UL/ETL ...305M(1000FT)
NO.7112116 F/UTP CAT5E 4PR 24AWG LSZH ...305M(1000FT)
