Conductor: | 0.57±0.005mm Solid Bare Copper | Pairs: | 4 Pairs |
---|---|---|---|
Insulation: | 1.02±0.05 Mm HDPE | Colors: | Blue-White/Blue,Orange-White/Orange |
Cross Section: | Modified Polyethylene | Rip Cord: | Cotton Or Fibre |
Out Jacket: | UV-PE , PVC , LSZH | ||
High Light: | 23awg Cat6 Lan Cable,LSZH Cat6 Lan Cable,LSZH Jacket CAT6 Network Cable |

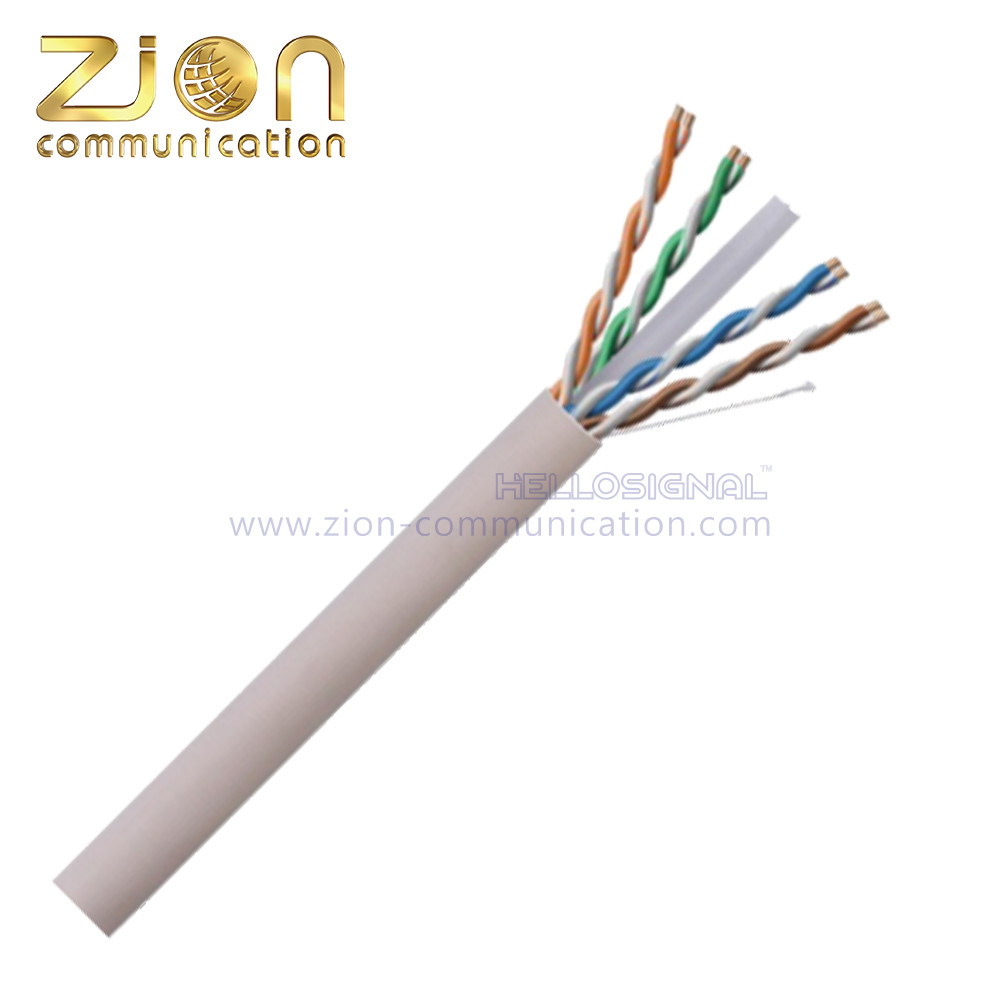

305m Roll PE , PVC CM UL/ETL , LSZH PVC , PVC CMR UL/ETL Cat6 Lan Cable 4 Pairs 23awg U/Utp Network Cable Cat6
U/UTP CAT6 CABLE | |||||||||
COMPLIANCE (Reference Standard and Certificates) | |||||||||
· ISO/IEC 11801-1 Ed.1.0 | |||||||||
· ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D | |||||||||
· UL444,UL1581,UL1666,IEC60332-1,EN50399 | |||||||||
Application Support | |||||||||
· 1000BASE-T , 1000BASE-TX,100BASE-T , 100BASE-TX,100VG-AnyLAN,ATM | |||||||||
· 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4 | |||||||||
Construction | Electrical Characteristics | ||||||||
Conductor: | 0.57±0.005mm Solid Bare Copper | DC Resistance | <9.38 Ohms/100m @20℃ | ||||||
Pairs: | 4 Pairs | DC Resistance unbalance | 5% @ 20℃ | ||||||
Insulation: | 1.02±0.05 mm HDPE | Mutual Capacitance | 5.6 nF/100m | ||||||
Insulation Colors: | Blue-White/Blue,Orange-White/Orange | Characteristic Impedance | 1 - 100 MHz : 100±15 Ohms | ||||||
Green-White/Green,Brown-White/Brown | 100 - 250 MHz : 100±20 Ohms | ||||||||
Cross Section | Modified Polyethylene | Max Frequency | 250MHz | ||||||
Rip Cord: | Cotton or Fibre | Capacitance Unbalance | 330 pF/100m | ||||||
Out Jacket: | PE , PVC CM UL/ETL , LSZH PVC , PVC CMR UL/ETL |
NVP(传输速率) | 65% | ||||||
※ Conductor from 0.55mm-0.57mm all can pass Fluke test, the Headroom of 0.57mm is bigger than 0.55mm | Delay Skew | ≤ 45ns/100m | |||||||
Performance Characteristics | |||||||||
Frequency | RL (Min.) |
Insertion Loss(Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) |
PSNEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) | |
MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m | |
1 | 20.0 | 2.0 | 570.0 | 45.0 | 74.0 | 72.0 | 67.8 | 64.8 | |
4 | 23.0 | 3.8 | 552.0 | 45.0 | 65.0 | 63.0 | 55.7 | 52.7 | |
10 | 25.0 | 6.0 | 545.0 | 45.0 | 59.0 | 57.0 | 47.8 | 44.8 | |
16 | 25.0 | 7.6 | 543.0 | 45.0 | 56.0 | 54.0 | 43.7 | 40.7 | |
20 | 25.0 | 8.5 | 542.0 | 45.0 | 55.0 | 53.0 | 41.7 | 38.7 | |
31.25 | 23.6 | 10.7 | 540.0 | 45.0 | 52.0 | 50.0 | 37.9 | 34.9 | |
62.5 | 21.5 | 15.4 | 539.0 | 45.0 | 47.0 | 45.0 | 31.8 | 28.8 | |
100 | 20.1 | 19.8 | 538.0 | 45.0 | 44.3 | 42.3 | 27.8 | 24.8 | |
200 | 18.0 | 29.0 | 537.0 | 45.0 | 39.7 | 37.7 | 21.7 | 18.7 | |
250 | 17.3 | 32.8 | 536.0 | 45.0 | 38.0 | 36.0 | 19.8 | 16.8 | |
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | |||||||||
Jacket Physical Properties | |||||||||
Jacket | |||||||||
Aging | Cold Bend | ||||||||
Item | Aging Period | 100°*24H*7D | Cold Period | -20±2°C*4H | |||||
Before Aging | After Aging | Bend Radius | 8*Cable O.D. | ||||||
PVC | Tensile Strength | ≥13.5 Mpa | ≥12.5 Mpa | No Visible Cracks | |||||
Elongation | ≥150 % | ≥125 % | |||||||
LSZH | Tensile Strength | ≥10.0 Mpa | ≥8.0 Mpa | No Visible Cracks | |||||
Elongation | ≥125% | ≥100% | |||||||
PE | Tensile Strength | ≥10.0 Mpa | ≥8.0 Mpa | No Visible Cracks | |||||
Elongation | ≥350 % | ≥350 % | |||||||
P/N | Description | ||||||||
NO.7112201 | U/UTP CAT6 4PR 23AWG PE ...305M(1000FT) | ||||||||
NO.7112202 | U/UTP CAT6 4PR 23AWG PVC ...305M(1000FT) | ||||||||
NO.7112203 | U/UTP CAT6 4PR 23AWG PVC CM UL/ETL E****** ...305M(1000FT) | ||||||||
NO.7112204 | U/UTP CAT6 4PR 23AWG PVC CMR UL/ETL E****** ...305M(1000FT) | ||||||||
NO.7112206 | U/UTP CAT6 4PR 23AWG PVC LSZH ...305M(1000FT) |
