| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL |
| Model Number: | U/UTP CAT6A CABLE |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 305M, 1000FT, Pull Box, Pallet |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | 0.565±0.005mm Solid Bare Copper | Pairs: | 4 Pairs |
|---|---|---|---|
| Insulation: | HDPE | Colors: | Blue-White/Blue,Orange-White/Orange |
| Cross Section: | Modified Polyethylene | Rip Cord: | Cotton Or Fibre |
| Out Jacket: | PVC ILS , PVC ILS CM UL/ETL , LSZH , PVC ILS CMR UL/ETL | ||
| Highlight: | 23AWG Cat6a Copper Cable,4 Twisted Pair Cat6a Copper Cable,4 Twisted Pair CAT6a Network Cable |
||

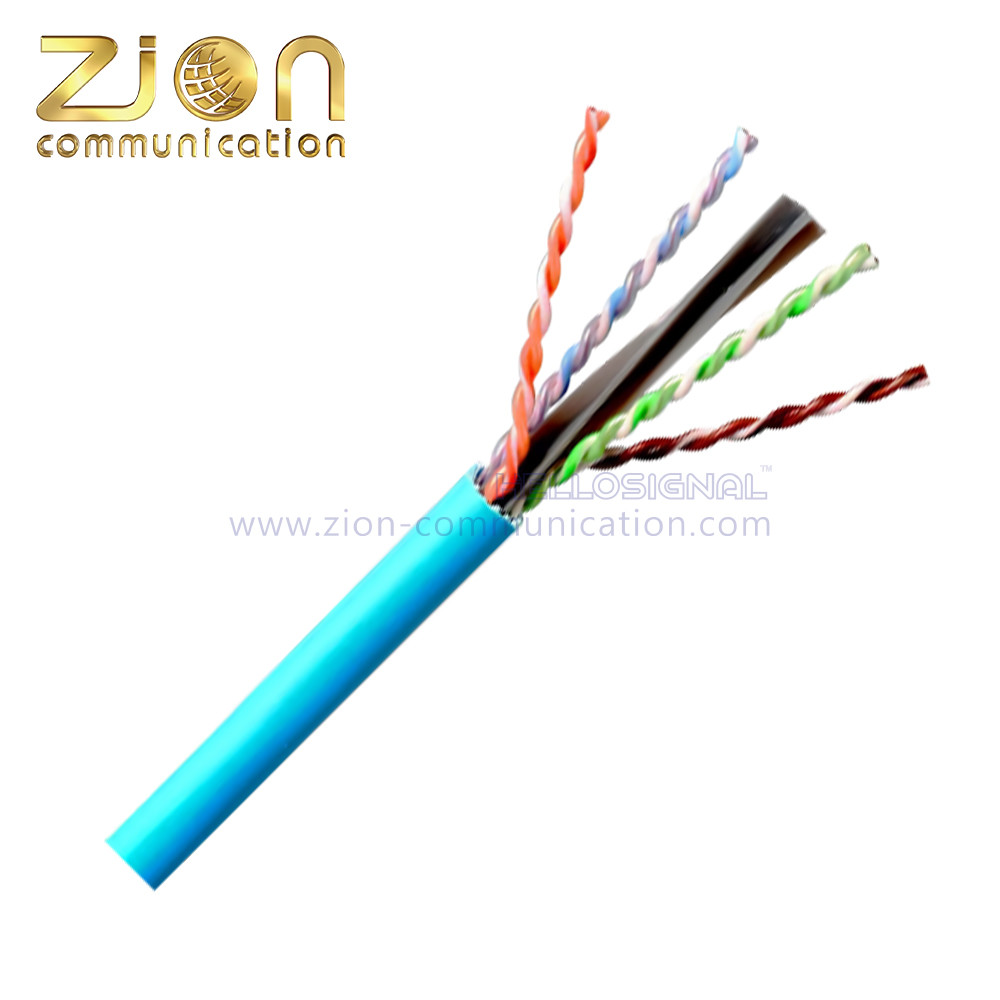

23AWG 4 Twisted Pair UTP 1000ft 305m Cat 6a Copper Cable Wire Internet Cable
| U/UTP CAT6A CABLE | ||||||||||
| |
||||||||||
| COMPLIANCE (Reference Standard and Certificates) | ||||||||||
| · ISO/IEC 11801-1 Ed.1.0 | ||||||||||
| · ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D | ||||||||||
| · UL444,UL1581,UL1666,IEC60332-1,EN50399 | ||||||||||
| Application Support | ||||||||||
| · 10GBASE-T , 1000BASE-T , 100BASE-T , 10BASE-T | ||||||||||
| · 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4 | ||||||||||
| Construction | Electrical Characteristics | |||||||||
| Conductor: | 0.565±0.005mm Solid Bare Copper | DC Resistance | ＜9.38 Ohms/100m @20℃ | |||||||
| Pairs: | 4 Pairs | DC Resistance unbalance | 4% @ 20℃ | |||||||
| Insulation: | 1.02±0.05 mm HDPE | Mutual Capacitance | 5.6 nF/100m | |||||||
| Insulation Colors: | Blue-White/Blue,Orange-White/Orange | Characteristic Impedance | 1 - 100 MHz : 100±15 Ohms | |||||||
| Green-White/Green,Brown-White/Brown | 100 - 200 MHz : 100±22 Ohms | |||||||||
| Cross Section: | Modified Polyethylene | 200 - 500 MHz : 100±32 Ohms | ||||||||
| Rip Cord: | Cotton or Fibre | Max Frequency | 500MHz | |||||||
| Out Jacket: | PVC ILS , PVC ILS CM UL/ETL , LSZH , PVC ILS CMR UL/ETL |
Capacitance Unbalance | 330 pF/100m | |||||||
| ※ ILS:Round jacket with internal Longitudinal Striations | NVP(传输速率) | 67% | ||||||||
| Delay Skew | ≤ 45ns/100m | |||||||||
| Performance Characteristics | ||||||||||
| Frequency | RL (Min.) |
Insertion Loss(Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) |
PSNEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) | ||
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m | ||
| 1 | 20.0 | 2.1 | 570.0 | 45.0 | 74.3 | 72.3 | 67.8 | 64.8 | ||
| 4 | 23.0 | 3.8 | 552.0 | 45.0 | 65.3 | 63.3 | 55.8 | 52.8 | ||
| 10 | 25.0 | 6.0 | 545.4 | 45.0 | 59.3 | 57.3 | 47.8 | 44.7 | ||
| 16 | 25.0 | 7.6 | 543.0 | 45.0 | 56.2 | 54.2 | 43.7 | 40.7 | ||
| 20 | 25.0 | 8.5 | 542.1 | 45.0 | 54.8 | 52.8 | 41.8 | 38.8 | ||
| 31.25 | 23.6 | 10.7 | 540.4 | 45.0 | 51.9 | 49.9 | 37.9 | 34.9 | ||
| 62.5 | 21.5 | 15.4 | 538.6 | 45.0 | 47.4 | 45.4 | 31.9 | 28.9 | ||
| 100 | 20.1 | 19.8 | 537.6 | 45.0 | 44.3 | 42.3 | 27.8 | 24.8 | ||
| 200 | 18.0 | 29.0 | 536.1 | 45.0 | 39.8 | 37.8 | 21.8 | 18.8 | ||
| 300 | 17.3 | 36.4 | 536.1 | 45.0 | 37.1 | 35.1 | 18.3 | 15.3 | ||
| 400 | 17.3 | 43.0 | 535.8 | 45.0 | 35.3 | 33.3 | 15.8 | 12.8 | ||
| 500 | 17.3 | 45.3 | 535.6 | 45.0 | 33.8 | 31.8 | 13.8 | 10.8 | ||
| ※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | ||||||||||
| Jacket Physical Properties | ||||||||||
| Jacket | ||||||||||
| Aging | Cold Bend | |||||||||
| Item | Aging Period | 100°*24H*7D | Cold Period | -20±2°C*4H | ||||||
| Before Aging | After Aging | Bend Radius | 8*Cable O.D. | |||||||
| PVC | Tensile Strength | ≥13.5 Mpa | ≥12.5 Mpa | No Visible Cracks | ||||||
| Elongation | ≥150 % | ≥125 % | ||||||||
| LSZH | Tensile Strength | ≥10.0 Mpa | ≥8.0 Mpa | No Visible Cracks | ||||||
| Elongation | ≥125% | ≥100% | ||||||||
| PE | Tensile Strength | ≥10.0 Mpa | ≥8.0 Mpa | No Visible Cracks | ||||||
| Elongation | ≥350 % | ≥350 % | ||||||||
| P/N | Description | |||||||||
| NO.7112302 | U/UTP CAT6A 4PR 23AWG PVC ...305M(1000FT) | |||||||||
| NO.7112303 | U/UTP CAT6A 4PR 23AWG PVC CM E******* ...305M(1000FT) | |||||||||
| NO.7112304 | U/UTP CAT6A 4PR 23AWG PVC CMR E******* ...305M(1000FT) | |||||||||
| NO.7112306 | U/UTP CAT6A 4PR 23AWG LSZH ...305M(1000FT) | |||||||||
