| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL |
| Model Number: | Network Cable SFTP CAT8 |
| Minimum Order Quantity: | 30.5 KM |
| Packaging Details: | 305M, 1000FT, Pull Box, Pallet |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | 0.63±0.005mm Solid Bare Copper | Pairs: | 4 Pairs |
|---|---|---|---|
| Insulation: | 1.40±0.05 Mm Foam PE | Color: | Blue-White/Blue,Orange-White/Orange |
| Shield: | AL/PET Foil,100% Coverage | Overall Shield: | Aluminum Foil |
| Braiding: | TC Or Al_Mg, 40% Coverage | Ripcord: | Cotton Or Fibre |
| Out Jacket: | LSZH | ||
| High Light: | Aluminum Foil CAT 7 Ethernet Cable,4 Pairs CAT 7 Ethernet Cable,Aluminum Foil CAT 7 Lan Cable |
||

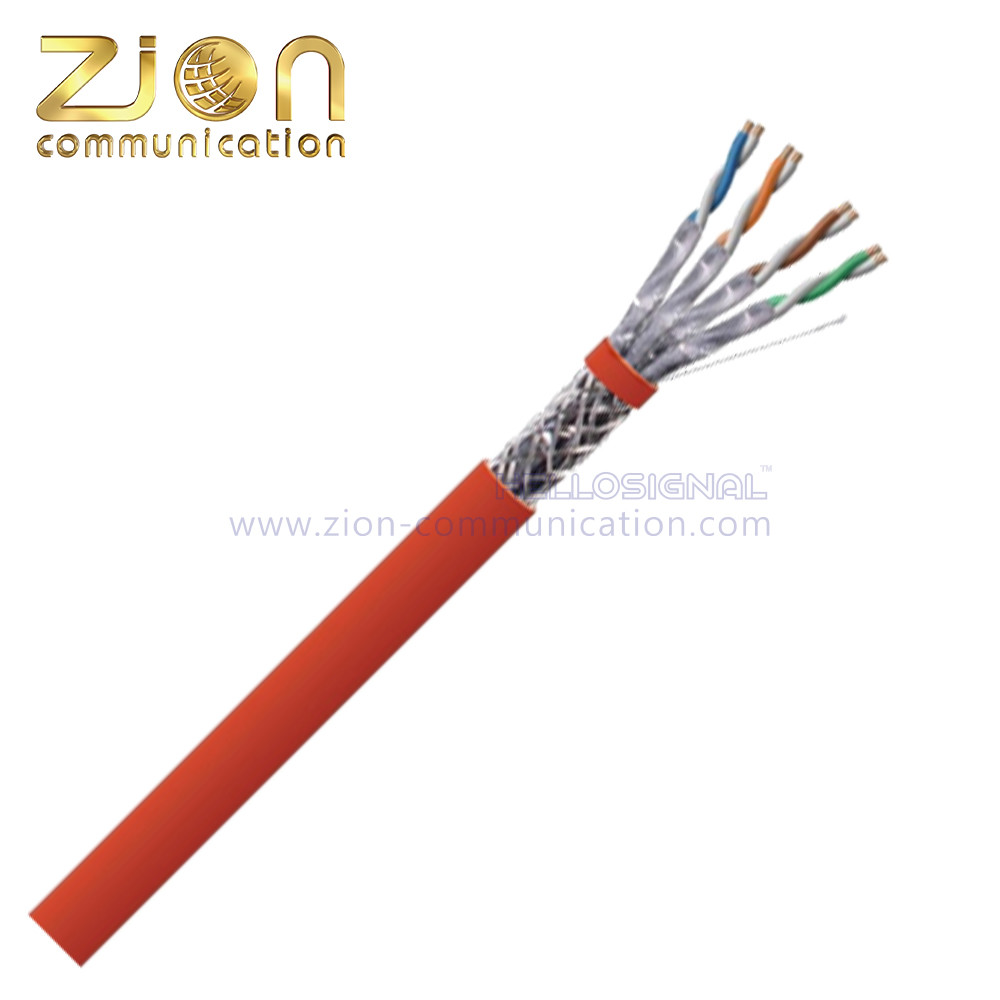

Custom SFTP Twist Pairs Cat 8 Cat7 Cat 7A Patch Cable CAT8 CAT7A CAT 7 Ethernet Network Lan Cable
| S/FTP CAT8 CABLE | ||||||||||
| |
||||||||||
| COMPLIANCE (Reference Standard and Certificates) | ||||||||||
| · ISO/IEC 11801-1 Ed.1.0 | ||||||||||
| · ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D | ||||||||||
| · UL444,UL1581,UL1666,IEC60332-1,EN50399 | ||||||||||
| Application Support | ||||||||||
| · 10GBASE-T to 40GBASE-T | ||||||||||
| · 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4 | ||||||||||
| · This fully shielded cable supports 30-meter Class II channels to meet IEEE 802.3bq 25 Gb/s (25GBASE-T) and 40 Gb/s (40GBASE-T) applications in the data center. |
||||||||||
| Construction | Electrical Characteristics | |||||||||
| Conductor: | 0.63±0.005mm Solid Bare Copper | DC Resistance | ＜2.1Ohms/30m @20℃ | |||||||
| Pairs: | 4 Pairs | DC Resistance unbalance | 2% @ 20℃ | |||||||
| Insulation: | 1.40±0.05 mm Foam PE | NVP(传输速率) | 74% | |||||||
| Insulation Colors: | Blue-White/Blue,Orange-White/Orange | Delay Skew | ≤ 7.5ns/30m | |||||||
| Green-White/Green,Brown-White/Brown | ||||||||||
| Shielded: | AL/PET Foil,100% Coverage | |||||||||
| Cover every pair | ||||||||||
| Overall Shield: | Aluminum Foil | |||||||||
| Braiding: | TC or Al_Mg, 40% Coverage | |||||||||
| Rip Cord: | Cotton or Fibre | |||||||||
| Out Jacket: | LSZH | |||||||||
| Performance Characteristics | ||||||||||
| Frequency | RL (Min.) |
Insertion Loss(Max.) | ACR | PSACR | NEXT (Min.) |
PSNEXT (Min.) | ACR-F | PS ACR-F | ||
| MHz | dB | dB/100m | dB/100m | dB/100m | dB | dB | dB/100m | dB/100m | ||
| 1 | 20/21.6 | 1.1/0.7 | 76.9/80.2 | 73.9/87.4 | 78/80.9 | 0.9 | 78//85.6 | 75/84.1 | ||
| 4 | 23.1/31.8 | 1.1/1.1 | 76.9/90.2 | 73.9/95.1 | 78/91.3 | 75/96.2 | 78/92.7 | 75/90.7 | ||
| 10 | 25/35.9 | 1.8/1.6 | 76.2/98 | 73.2/94.6 | 78/99.6 | 75/96.2 | 78/97.3 | 75/95.5 | ||
| 16 | 25/29.8 | 2.2/2.1 | 75.8/98.9 | 72.8/87.5 | 0.8 | 75/89.6 | 76.5/101 | 73.5/95.8 | ||
| 20 | 25/30.6 | 2.5/2.3 | 75.5/95.8 | 72.5/94.2 | 78/98.1 | 75/96.5 | 74.7/95.9 | 71.6/94.2 | ||
| 31.25 | 25/30.2 | 3.2/3.0 | 74.8/95.2 | 71.8/94.9 | 78/98.2 | 75/97.9 | 70.7/95.2 | 67.7/92.5 | ||
| 62.5 | 23.6/32.5 | 4.5/4.2 | 73.5/96.8 | 70.5/88 | 0.8 | 75/92.2 | 64.7/93.9 | 61.7/89.8 | ||
| 100 | 22.2/34.6 | 5.5/5.1 | 69.9/94.9 | 66.9/89.6 | 75.4/100 | 72.4/94.7 | 60.6/92.7 | 57.6/89.4 | ||
| 200 | 20.1/30.8 | 7.9/7.3 | 63/93.7 | 60/82.2 | 70.9/101 | 67.9/89.5 | 54.6/91 | 51.6/85.2 | ||
| 300 | 18.8/20.4 | 9.8/9.0 | 58.4/90.3 | 55.4/79.7 | 68.2/99.3 | 85.2/88.7 | 51.1/86 | 48.1/84.3 | ||
| 350 | 18.4/29.4 | 10.6/9.8 | 56.6/87.4 | 53.6/76.3 | 67.2/97.2 | 64.2/86.1 | 49.7/84.1 | 46.7/81.6 | ||
| 400 | 18/26.6 | 11.4/10.4 | 55/90.6 | 52/77.9 | 66.4/101 | 63.4/88.3 | 48.6/85.2 | 45.6/80.8 | ||
| 550 | 17/29.5 | 13.5/12.3 | 50.8/85 | 47.8/73.2 | 64.3/97.3 | 61.3/85.5 | 45.8/80.9 | 42.8/80.4 | ||
| 600 | 16.8/23.1 | 14.1/12.9 | 49.6/86.6 | 46.6/71.9 | 63.7/99.5 | 60.7/84.8 | 45/82 | 42/80 | ||
| 800 | 15.9/26 | 16.5/14.9 | 45.3/79 | 42.4/66.1 | 61.8/93.9 | 58.9/81 | 42.5/78.2 | 39.5/74.1 | ||
| 900 | 15.5/28.5 | 17.6/17.6 | 43.5/79.7 | 40.5/61.1 | 61.1/97.3 | 58.1/78.7 | 41.5/77.4 | 38.5/73.6 | ||
| 1000 | 15.2/32.7 | 18.6/16.7 | 41.8/79.4 | 38.8/63.2 | 60.4/96.1 | 57.4/79.9 | 40.6/76.5 | 37.6/72.7 | ||
| 1600 | 13.8/19.5 | 24/21.6 | 33.3/75.9 | 30.3/52.5 | 57.3/97.5 | 54.3/74.1 | 36.5/69.7 | 33.5/67.6 | ||
| 2000 | 13.1/19.4 | 27.2/24.6 | 28.7/63.3 | 25.7/40.3 | 55.9/87.9 | 52.9/64.9 | 34.6/64.2 | 31.6/63.3 | ||
| ※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | ||||||||||
| Jacket Physical Properties | ||||||||||
| Jacket | ||||||||||
| Aging | Cold Bend | |||||||||
| Item | Aging Period | 100°*24H*7D | Cold Period | -20±2°C*4H | ||||||
| Before Aging | After Aging | Bend Radius | 8*Cable O.D. | |||||||
| PVC | Tensile Strength | ≥13.5 Mpa | ≥12.5 Mpa | No Visible Cracks | ||||||
| Elongation | ≥150 % | ≥125 % | ||||||||
| LSZH | Tensile Strength | ≥10.0 Mpa | ≥8.0 Mpa | No Visible Cracks | ||||||
| Elongation | ≥125% | ≥100% | ||||||||
| PE | Tensile Strength | ≥10.0 Mpa | ≥8.0 Mpa | No Visible Cracks | ||||||
| Elongation | ≥350 % | ≥350 % | ||||||||
