| Conductor: | 23 AWG Solid Bare Copper | Pairs: | 4 Pairs |
|---|---|---|---|
| Insulation: | 1.35 Mm Skin-Foam-Skin | Color: | Blue-White/Blue,Orange-White/Orange |
| Shield: | Al/PET Foil,Foil Face Out | Drain Wire: | 0.40±0.005mm TC |
| Overall Shield: | TC Or AL_MG Braiding | Ripcord: | Cotton |
| Out Jacket: | 8.3±0.2 Mm PVC CM | ||
| Highlight: | 23 AWG Cat 7 SFTP Cable,PVC CM Cat 7 SFTP Cable,PVC CM Cat 7 Network Cable |
||

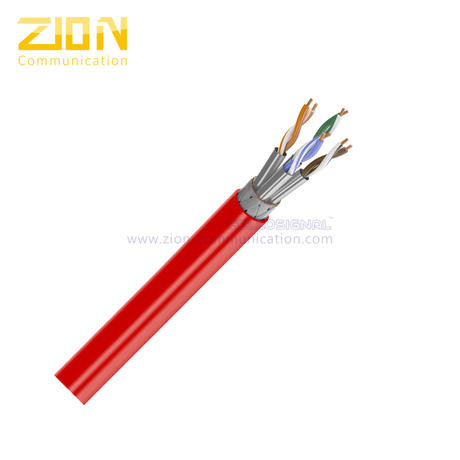

SFTP Cable With PVC CM Moisture Barrier Sheath Ethernet High Speed Fluke Tester Cat 7
| S/FTP CAT 7A BC PVC CM Ethernet network cable NO.7112423 |
||||||||
| Construction | ||||||||
| Conductor: | 23 AWG Solid Bare Copper | |||||||
| Pairs: | 4 Pairs | |||||||
| Insulation: | 1.35 mm Skin-Foam-Skin | |||||||
| Insulation Colors: | Blue-White/Blue,Orange-White/Orange | |||||||
| Green-White/Green,Brown-White/Brown | ||||||||
| Individual Pair shield | Al/PET Foil,Foil face out | |||||||
| Drain Wire | 0.40±0.005mm TC | |||||||
| Overall Shield | TC or AL_MG Braiding | |||||||
| Ripcord: | Cotton | |||||||
| Out Jacket: | 8.3±0.2 mm PVC CM | |||||||
| Electrical Characteristics | ||||||||
| Impedance | 4 - 100MHz 100±15 Ohms | |||||||
| 100 - 200MHz 100±22 Ohms | ||||||||
| 200 - 500MHz 100±32 Ohms | ||||||||
| Max.Conductor DC Resistance 20℃ |
8.4 Ohms/100m | |||||||
| Res. unbalance (%) | Max. 2.5 | |||||||
| Pair to Ground Capacitance Unbalance |
330 pF/100m | |||||||
| Transfer Impendance | Max 10 mOhms/m @100Mhz | |||||||
| Couppling Attenuation | Min 80 dB | |||||||
| Installation temp. | -30 - 50℃ | |||||||
| Operation temp. | -20 - 75℃ | |||||||
| Cross Section | ||||||||
| |
||||||||
| Application | ||||||||
| • Suitable for structured premises cabling. | ||||||||
| • For transmission of digital and analogue voice and data signals. | ||||||||
| • Especially suitable for all Class F applications. | ||||||||
| • ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base-T.(IEEE 802.3). | ||||||||
| • Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s.(IEEE802.5). | ||||||||
| Standard | ||||||||
| IEC/ISO 61156-5; ISOIIEC 11801 | ||||||||
| Performance Characteristics | ||||||||
| Frequency | RL(Min.) | Insertion Loss(Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) | PSNEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) |
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
| 4 | 23 | 3.7 | 552 | 25 | 78 | 75 | 78 | 75 |
| 16 | 25 | 7.3 | 543 | 25 | 78 | 75 | 71.2 | 68.2 |
| 20 | 25 | 8.2 | 542 | 25 | 78 | 75 | 69.3 | 66.3 |
| 25 | 24.3 | 9.2 | 541 | 25 | 78 | 75 | 67.3 | 64.3 |
| 31.25 | 23.6 | 10.3 | 540 | 25 | 78 | 75 | 65.4 | 62.4 |
| 62.5 | 21.5 | 14.6 | 539 | 25 | 75.5 | 72.5 | 59.4 | 56.4 |
| 100 | 20.1 | 18.5 | 538 | 25 | 72.4 | 69.4 | 55.3 | 52.3 |
| 200 | 18 | 26.5 | 537 | 25 | 67.9 | 64.9 | 49.3 | 46.3 |
| 250 | 17.3 | 29.7 | 536 | 25 | 66.4 | 63.4 | 47.3 | 44.3 |
| 300 | 17.3 | 32.7 | 536 | 25 | 65.2 | 62.2 | 45.8 | 42.8 |
| 400 | 17.3 | 38 | 536 | 25 | 63.4 | 60.4 | 43.3 | 40.3 |
| 500 | 17.3 | 42.8 | 536 | 25 | 61.9 | 58.9 | 41.3 | 38.3 |
| 600 | 17.3 | 47.1 | 535 | 25 | 60.7 | 57.7 | 39.7 | 36.7 |
| Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | ||||||||
| Order Informations | ||||||||
| Marking | HELLOSIGNAL NO.7112423 S/FTP CAT7A 4PR 23AWG PVC CM XXX (or Per customer's request) |
|||||||
| (or Per customer's request) | ||||||||
| Inner Package | 305m/Spool,305m/Reel (or Per customer's request) | |||||||
| Outer Package | Color Box, Pallet (or Per customer's request) | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
