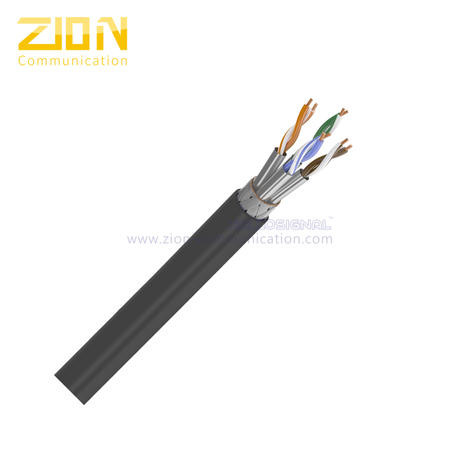

1000ft 22awg Cat 7 Network Cable Ethernet Shield LSZH

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: CE, RoHS, VDE, UL
Model Number: Network Cable SFTP CAT7
Minimum Order Quantity: 30.5 KM
Packaging Details: 305M, 1000FT, Pull Box, Pallet
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: 23 AWG Solid Bare Copper Pairs: 4 Pairs
Insulation: 1.35 Mm Skin-Foam-Skin Color: Blue-White/Blue,Orange-White/Orange
Shield: Al/PET Foil,Foil Face Out Drain Wire: 0.40±0.005mm TC
Overall Shield: TC Or AL_MG Braiding Ripcord: Cotton
Out Jacket: 8.3±0.2 Mm LSZH
High Light:

LSZH Cat 7 Network Cable

,

1000ft Cat 7 Network Cable

,

22awg Cat 7 Network Cable


Product Description

Ethernet Shield LSZH 1000ft 100m1000mhz price per meters 22awg Cat 7 network Cable





S/FTP CAT 7 BC LSZH Ethernet network cable
NO.7112406

Construction
Conductor: 23 AWG Solid Bare Copper
Pairs: 4 Pairs
Insulation: 1.35 mm Skin-Foam-Skin
Insulation Colors: Blue-White/Blue,Orange-White/Orange
Green-White/Green,Brown-White/Brown
Individual Pair shield Al/PET Foil,Foil face out
Drain Wire 0.40±0.005mm TC
Overall Shield TC or AL_MG Braiding
Ripcord: Cotton
Out Jacket: 8.3±0.2 mm LSZH

Electrical Characteristics
Impedance 4 - 100MHz 100±15 Ohms
100 - 200MHz 100±22 Ohms
200 - 500MHz 100±32 Ohms
Max.Conductor DC
Resistance 20℃
8.4 Ohms/100m
Res. unbalance (%) Max. 2.5
Pair to Ground
Capacitance Unbalance
330 pF/100m
Transfer Impendance Max 10 mOhms/m @100Mhz
Couppling Attenuation Min 80 dB
Installation temp. -30 - 50℃
Operation temp. -20 - 75℃

Cross Section
                   1000ft 22awg Cat 7 Network Cable Ethernet Shield LSZH 0
Application
• Suitable for structured premises cabling.
• For transmission of digital and analogue voice and data signals.
• Especially suitable for all Class F applications.
• ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T, Gigabit Ethernet 1000Base-T, 10G Base-T.(IEEE 802.3).
• Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s.(IEEE802.5).

Standard
IEC/ISO 61156-5; ISOIIEC 11801

Performance Characteristics
Frequency RL(Min.) Insertion Loss(Max.) Propagation Delay (Max.) Delay Skew(Max.) NEXT (Min.) PSNEXT (Min.) ELNEXT (Min.) PSELNEXT (Min.)
MHz dB dB/100m ns/100m ns/100m dB dB dB/100m dB/100m
4 23 3.7 552 25 78 75 78 75
16 25 7.3 543 25 78 75 71.2 68.2
20 25 8.2 542 25 78 75 69.3 66.3
25 24.3 9.2 541 25 78 75 67.3 64.3
31.25 23.6 10.3 540 25 78 75 65.4 62.4
62.5 21.5 14.6 539 25 75.5 72.5 59.4 56.4
100 20.1 18.5 538 25 72.4 69.4 55.3 52.3
200 18 26.5 537 25 67.9 64.9 49.3 46.3
250 17.3 29.7 536 25 66.4 63.4 47.3 44.3
300 17.3 32.7 536 25 65.2 62.2 45.8 42.8
400 17.3 38 536 25 63.4 60.4 43.3 40.3
500 17.3 42.8 536 25 61.9 58.9 41.3 38.3
600 17.3 47.1 535 25 60.7 57.7 39.7 36.7
Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations
Marking HELLOSIGNAL NO.7112406 S/FTP CAT7 4PR 23AWG LSZH
XXX (or Per customer's request)
Inner Package 305m/Spool,305m/Reel (or Per customer's request)
Outer Package Color Box, Pallet (or Per customer's request)
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
