| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | Circular Shielded Audio Cable |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Tinned Copper, 22(7)awg | Pair Insulation: | Polypropylene (PE) |
|---|---|---|---|
| Number Of Cores: | 1 | Overall Screen: | Aluminium Foil (100% Coverage) |
| DrainWire: | Tinned Copper, 22(7)awg | Outer Sheath: | Low Smoke Halogen Free (LSHF) |
| Colour: | Grey | Core Identification: | Clear/Black |

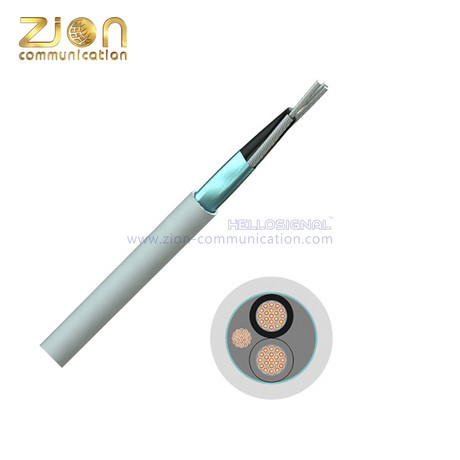

| Circular Shielded Audio Cable (CFSTP221-LSHF) | ||
|
||
| Application: | ||
| Fixed wiring of digital equipment and patch boards for professional audio applications. | ||
| Product Description: | ||
| Conductor Material | Tinned Copper, 22(7)awg | |
| Pair Insulation Material | Polyethylene (PE) | |
| Number of Pairs | 1 | |
| Overall Screen | Aluminium Foil (100% Coverage) | |
| DrainWire | Tinned Copper, 22(7)awg | |
| Outer Sheath Material | Low Smoke Halogen Free (LSHF) | |
| Outer Sheath Colour | Grey | |
| Core Identification | Clear/Black | |
| Electrical Characteristics: | ||
| Nominal Conductor Resistance | < 55.2 Ω/km | |
| Capacitance | Core to Core | 70 pF/m± 25 |
| Core to Screen | 135 pF/m ± 30 | |
| Impedance | 75 Ω ± 25 | |
| Voltage Rating | 450/750V | |
| Test Voltage | 2.5kV for 5 minutes | |
| Physical Characteristics: | ||
| Overall Diameter | 4.5 ± 0.2mm | |
| Min. Bend Radius | 10 x OD | |
| Temperature Rating | -20°C to +70°C | |
| Standards: | ||
| Flame Retardant | BS EN 60332-1-2 | |
| Low Smoke Generation | BS EN 61034-2 | |
| Halogen Gas Emission | BS EN 60754-1&2 | |
| RoHS3 Compliant | Yes | |
| CE Compliant | LVD (2014/35/EU), CPR (305/2011) | |
| CPR Classification | Eca (EN50575:2014+A1:2016) | |
