G652D Fiber Unit LSZH Jacket MPO Patch Cord MPO to ST SC LC Fiber Jumper for High-Performance Data Transmission

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	MPO

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G652D , G657A1/2 , G655	Connector:	MPO To SC / LC / ST / FC / D4 / E2000 / MU
Jacket:	LSZH Or PVC...	Color:	12 Colours As Per IEC 60304
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	MPO Patch Cord , LSZH Jacket MPO Patch Cord , MPO To ST Fiber Optic Cable

Product Description

G652D Fiber Unit LSZH Jacket MPO Patch Cord MPO To ST SC LC

High-performance fiber optic patch cords and pigtails designed for reliable data transmission across various applications. Available with diverse connector types and custom configurations to meet specific network requirements.

Product Structure & Configuration

Connector Options

Available Types: SC, LC, ST, FC, D4, E2000, MU
Ferrule Options: UPC, APC

Fiber Models

Single Mode (SM): G652D, G657A1, G657A2, G657B3, G655
Multi-Mode (MM): OM1, OM2, OM3 (150m/300m), OM4 (550m), OM5

Physical Specifications

Cable Diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm (customizable)
Core Options: SX (Simplex), DX (Duplex)
Jacket Material: PVC, LSZH, OFNR, RE, TPU (customizable)
Jacket Color: Yellow, Blue, Green, or Customized
Cable Length: 1m, 2m, 3m, 5m, 10m, or Customized

Technical Specifications

Connector Types: FC, SC, LC, ST, D4, E2000, MU

Fiber Type: Single Mode (SM) and Multi-Mode (MM)

Insertion Loss (Typical): ≤0.2 dB

Insertion Loss (Maximum): ≤0.3 dB

Return Loss (APC): ≥60 dB (SM) / ≥35 dB (MM)

Return Loss (UPC): ≥50 dB (SM) / ≥35 dB (MM)

Mating Durability: ≤0.2 dB

Durability Cycles: ≥1000 times

Operating Temperature (Standard): -20℃ to +85℃

Operating Temperature (Extreme): -40℃ to +85℃

Applications

Telecommunications networks
Data centers
Optical equipment
Broadband and CATV systems

Key Benefits

High-precision connectors for reliable performance and signal integrity
Low insertion and return loss for minimal signal degradation
Durable construction and customizable options for specific network requirements

Product Images

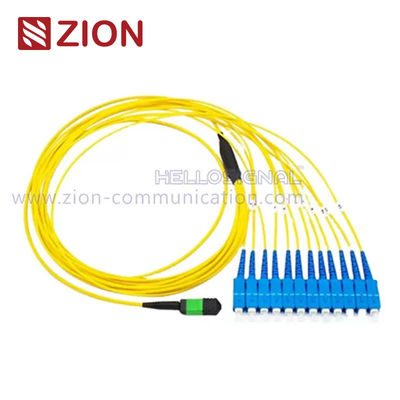

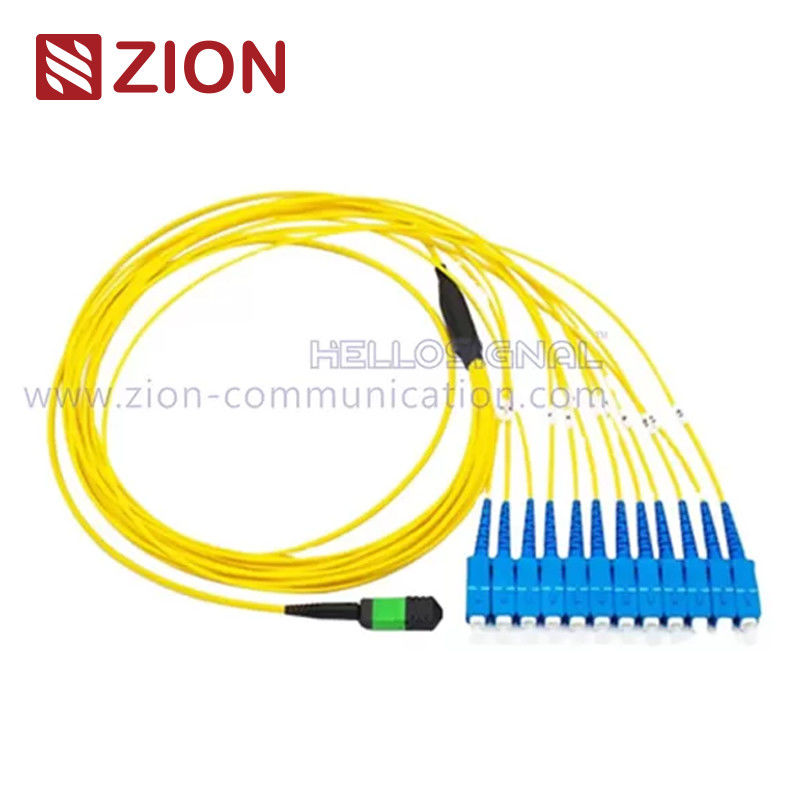

MPO APC to SC UPC

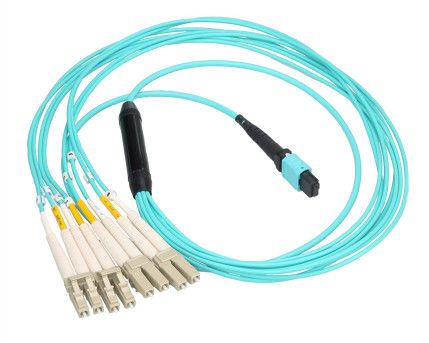

MPO OM4 to LC OM4

Available Configurations

Image	Product Code	Description
	7236031, ZCM16117X	8F MPO(male) -LC Fan-out 0.9mm 30-35cm Patch cable
	7236032, ZCM16127X	12F MPO(male) -LC Fan-out 0.9mm 30-35cm Patch cable
	7236033, ZCM16157X	24F MPO(male) -LC Fan-out 0.9mm 30-35cm Patch cable
	7236034, ZCM26117X	8F MTP(male) -LC Fan-out 0.9mm 30-35cm Patch cable
	7236035, ZCM26127X	12F MTP(male) -LC Fan-out 0.9mm 30-35cm Patch cable
	7236036, ZCM26157X	24F MTP(male) -LC Fan-out 0.9mm 30-35cm Patch cable
	7236037, ZCM11A12HIAX	8F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
	7236038, ZCM11A22HIAX	12F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
	7236039, ZCM11A52HIAX	24F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables
	7236040, ZCM11A17HAAX	8F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables
