| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | SC to FC Simplex |
| Minimum Order Quantity: | 1,000 PCS |

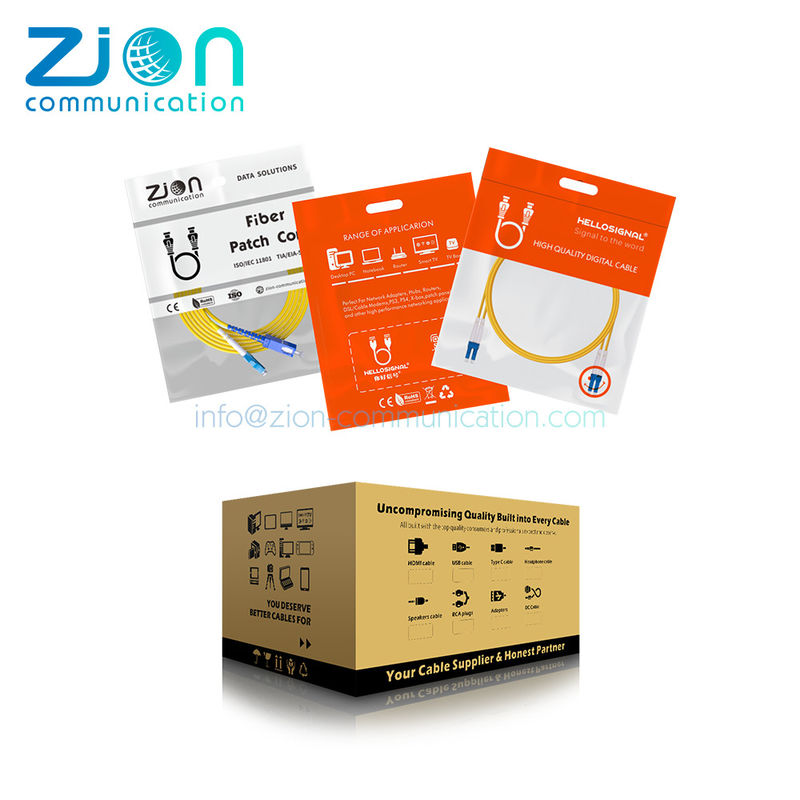

| Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000 PCS / Month |
| Fiber Unit: | OM2 , 50/125 | Tight Buffer Fiber: | 900μm Tight Buffer |
|---|---|---|---|
| Connector: | SC, LC, ST, FC Connectors | Assemblies: | Simplex And Duplex |
| Jacket: | LSZH Or PVC | Color: | 12 Colours As Per IEC 60304 |
| Package: | 1 PC/Plastic Bag, PCS/Carton | ||
| Highlight: | OM2 Fiber Patch Cord,Simplex Jumper Fiber Patch Cord,3M Fiber Patch Cord |
||
SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.
| 50/125 (OM2) Optical Fibre Patch Cords | ||||||||
| Features: | ||||||||
|
✔ SC, LC, ST, FC connectors ✔ Armoured option also available
|
||||||||
| Application: | ||||||||
|
✔ For use in 1 Gb/s high speed LAN networks over a 550 m indicative link length at 850 nm wavelength using a laser launch ✔ High speed and legacy networks including Gigabit Ethernet, Fast Ethernet and Ethernet ✔ Data centres
|
||||||||
| Connector Specification: | ||||||||
| Optical Performance | Singlemode | Conformance | ||||||
| IL Max/Master (Acceptance) | 0.25 dB | IEC 61300-3-4 | ||||||
| Ave/Master | 0.15 dB | IEC 61300-3-4 | ||||||
| Fibre Specification: | ||||||||
| Characteristics | ||||||||
| Attenuation (dB) / km | 2.80 @ 850nm / 0.80 @ 1300nm | |||||||
| Bandwidth OFL (MHz x km) | 500 @ 850nm / 500 @ 1300nm | |||||||
| Cable Specification: | ||||||||
| Characteristics | Simplex | Duplex | ||||||
| Cable Material | LSZH | LSZH | ||||||
| Strength Member | Aramid | Aramid | ||||||
| Crush (N) | 1000 | 1000 | ||||||
| Operating Temperature (˚C) | -20 to 60 | -20 to 60 | ||||||
| Fire Specification | IEC 60332-1 | |||||||
| Part Number Generator: | ||||||||
| SC FC UPC SX OS1 1 1 YE 0 ① ② ③ ④ ⑤ ⑥⑦ ⑧ ⑨ |
||||||||
| Connector End A |
Connector End B |
Polish Type |
Cable Type | Mode | Cable Diameter |
Jacket Type |
Jacket Color |
Length |
| SC LC ST FC D4 E2000 MU |
SC LC ST FC D4 E2000 MU |
UPC APC |
SX=Simplex DX=Duplex A=Armoured W=Water-proff B=Break-out R=Rbbon B=Bundle |
OS1 OS2 OM1 OM2 OM3 OM4 OM5 |
1=0.9mm 2=2.0mm 3=3.0mm |
1=PVC 2=LSZH 3=OFNP 4=OFNR 5=PE 6=TPU |
YE=Yellow BL=Blue GN=Green OR=Orange GY=Grey PU=Purple AQ=Aqua |
0=0.5m 1=1m 2=2m 3=3m ···· |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ |
