| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL |
| Model Number: | Bus Cable |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Solid Or Stranded Copper Wire | Insulation: | PE |
|---|---|---|---|
| Shield: | BC Braid | Jacket: | See Attached List |
| Color: | Green Or Purple | ||
| Highlight: | industrial ethernet cable,high flex industrial ethernet cable |
||

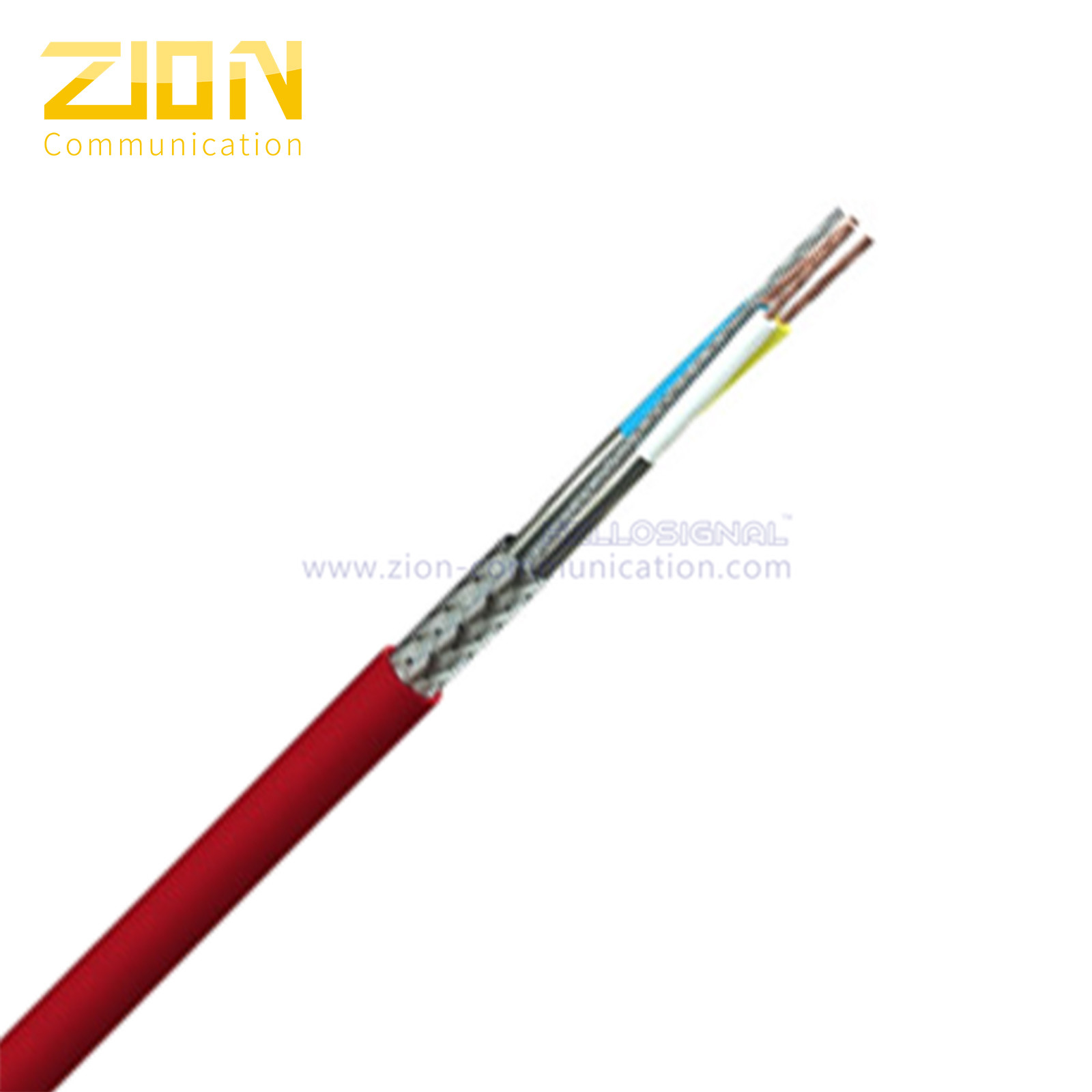

Shield CC - Link Cable Industrial Automation Cables To Test Sensor And Propeller
https://www.zion-communication.com/Industrial-Ethernet-Cable-pl569518.html
| CC-Link Cable | ||||||
 |
||||||
| ▉ Application | ||||||
| Used to test sensor and propeller,with this cable, CC-Link system can handle control data and information data quickly. Apply to Automobile industry,Hotel monitor systems. |
||||||
| ▉ Cable Construction | ||||||
| Conductor: Stranded bare copper wire | ||||||
| Insulation: Foam PE | ||||||
| Drain wire: Tinned copper wire | ||||||
| Shield: AL/Mylar screen and TC braid | ||||||
| Jacket: see attached list | ||||||
| Color: Red | ||||||
| ▉ Cable Construction | ||||||
| Oil and grease resistance | ||||||
| AL/Mylar and copper wire braid,excellent Anti-EMI performance | ||||||
| Abrasion resistance,Anti-hydrolysis | ||||||
| ▉ Cross Section | ||||||
 |
||||||
| ▉ Technical data | ||||||
| Temperature range | .-40℃ to 80℃ | |||||
| Test voltage | 1500V 1min,no breakdown | |||||
| Characteristic impedance | 110±15 Ohm 110±6 Ohm(5MHz) | |||||
| Min bending radius | 15x cable diameter | |||||
| Loop conductor DC resistance at 20℃ | ≤76 ohm/km | |||||
| ▉ Product List | ||||||
| Item No. | Spec. | Jacket | Nominal OD(mm) |
Copper.weight approx (kg/km) | Weight approx(kg/km) | |
| 7131200 | 3*1*20AWG | PVC | 7.7 | 34 | 83 | |
| 7131201 | 3*1*20AWG | PUR | 7.7 | 34 | 80 | |
| ▉ Order Informations | ||||||
| Marking | HELLOSIGNAL Industrial CC-Link Cable XXXFT/M | |||||
| Package | 100m/Reel, 300m/Wooden Spool | |||||
| Delivery time | Normally 25 days after received the deposit. | |||||
