| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL |
| Model Number: | Bus Cable |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Solid Or Stranded Copper Wire | Insulation: | Foam PE |
|---|---|---|---|
| Cabling: | PET Tape Wrapping | Shield: | TC Braid |
| Jacket: | See Attached List | Color: | Purple(similar To RAL 4001) |
| High Light: | industrial ethernet cable,high flex industrial ethernet cable |
||

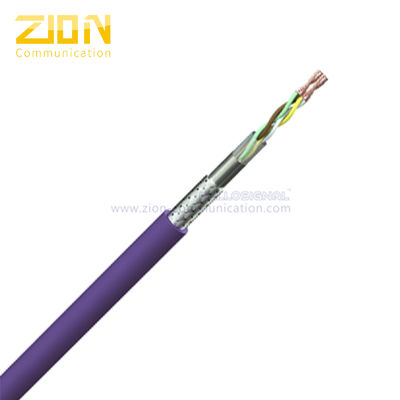

TC Braid Canbus Cable Industrial Automation Cables Use In Bus Systems
https://www.zion-communication.com/Industrial-Ethernet-Cable-pl569518.html
| CANBus Cable | ||||||||
 |
||||||||
| ▉ Application | ||||||||
| Widely used in many bus systems,apply to bulid up network for automation technology, combination control and controller,etc, such as textile industry,construction machineryindustry,medical industry. |
||||||||
| ▉ Cable Construction | ||||||||
| Conductor: Stranded bare copper wire | ||||||||
| Insulation: Foam PE | ||||||||
| Cabling: PET tape wrapping | ||||||||
| Shield: TC braid | ||||||||
| Jacket: see attached list | ||||||||
| Color: Purple(similar to RAL 4001) | ||||||||
| ▉ Cable Construction | ||||||||
| UV, Oil and grease resistance | ||||||||
| High braiding coverage,excellent Anti-EMI performance | ||||||||
| Abrasion resistance,Anti-hydrolysis | ||||||||
| Torsion resistance,Easy bending | ||||||||
| ▉ Cross Section | ||||||||
  |
||||||||
| ▉ Technical data | ||||||||
| Temperature range | .-40℃ to 80℃ | |||||||
|
Test voltage |
1500V 1min,no breakdown | |||||||
| Peak voltage | 250V | |||||||
| Characteristic impedance | 120±15 Ohm | |||||||
| Min bending radius | 15x cable diameter | |||||||
| Loop conductor DC resistance at 20℃ | ≤164 ohm/km | |||||||
| ▉ Product List | ||||||||
| Item No. | Spec. | Jacket | Nominal OD(mm) |
Copper.weight approx (kg/km) | Weight approx(kg/km) | |||
| 7131000 | 1*2*0.22mm² | PVC | 5.7 | 14 | 44 | |||
| 7131001 | 2*2*0.22mm² | PVC | 7.6 | 26 | 66 | |||
| 7131002 | 1*2*0.34mm² | PVC | 6.8 | 22 | 57 | |||
| 7131003 | 2*2*0.34mm² | PVC | 8.5 | 35 | 92 | |||
| 7131004 | 1*2*0.50mm² | PVC | 7.5 | 27.5 | 67 | |||
| 7131005 | 2*2*0.50mm² | PVC | 9.7 | 47 | 96 | |||
| 7131006 | 1*2*0.22mm² | PUR | 6.3 | 16 | 48 | |||
| 7131007 | 2*2*0.22mm² | PUR | 8.4 | 31 | 74 | |||
| 7131008 | 1*2*0.34mm² | PUR | 7.3 | 26 | 66 | |||
| 7131009 | 2*2*0.34mm² | PUR | 9.3 | 37 | 86 | |||
| 7131010 | 1*2*0.50mm² | PUR | 8.1 | 33 | 72 | |||
| 7131011 | 2*2*0.50mm² | PUR | 10.6 | 50 | 102 | |||
| ▉ Order Informations | ||||||||
| Marking | HELLOSIGNAL Industrial CANBus Cable XXXFT/M | |||||||
| Package | 100m/Reel, 300m/Wooden Spool | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
