| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, UL, CE, RoHS |
| Model Number: | RG6 Coaxial Cable |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 305M, 1000FT, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | 18AWG BC | Insulation: | Foamed PE |
|---|---|---|---|
| Shield 1: | Bonded Aluminum Polyproylene | Shield 2: | Bare Copper Braid Wire 95% Coverage |
| Jacket: | PVC Flame Retardation: IEC 60332-1 | Color: | Black, White |
| Package: | 305M, 1000FT, Wooden Reel, Carton |
|

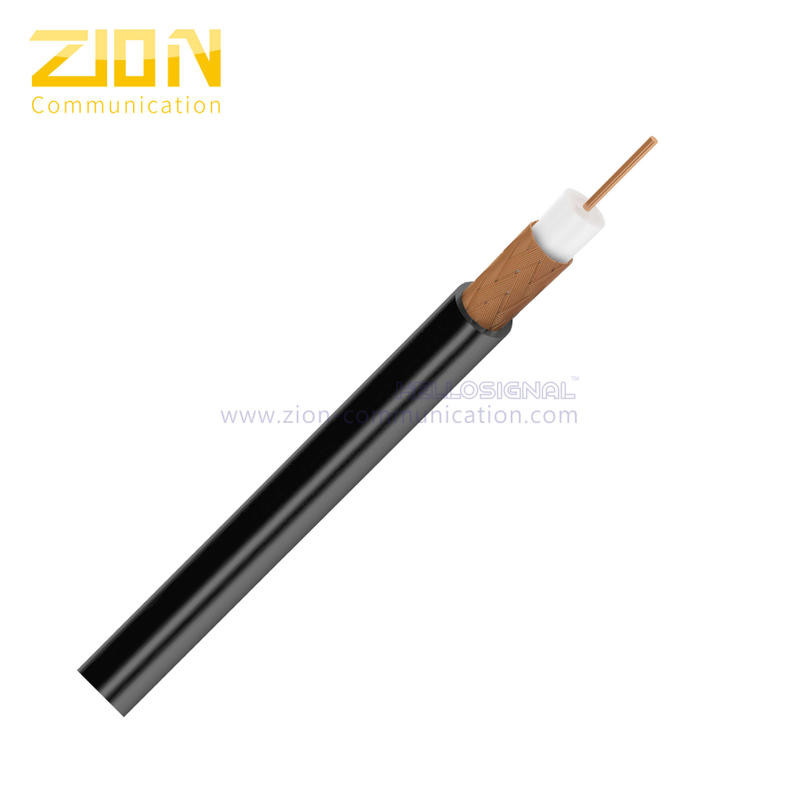

RG6/U S BC 95% BC PVC NO.7100061 |
|||
| Construction Parameters: | |||
| Inner Conductor | 0.040"/1.02mm/18AWG BC | ||
| Dielectric | 0.175"/4.45mm Foamed PE | ||
| Shield 1 | 0.187"/4.75mm Bonded Aluminum Polyproylene | ||
| Shield 2 | Bare Copper braid wire 95% coverage Diameter Over Shielding: 5.1 mm/0.20" |
||
| Jacket | 0.262±0.006"/6.65±0.15mmPVC Flame Retardation: IEC 60332-1 |
||
| Jacket Thickness | |||
| Application | For Use in Longer CATV Run Lengths | ||
| Electrical Characteristics: | |||
| Inner Conductor Resistance | The Max. at 20℃ shall be < 21.2 Ω/km (6.96 Ω/kft) | ||
| Capacitance | 52 ±3 pF/m 17±0.3 pF/ft | ||
| Impedance | 75 ± 3 Ω | ||
| Return loss | between 5 and 1000MHz: > 22dB | ||
| Velocity of Propagation | 0.85 | ||
| Sparker Test (VAC) | 4 | ||
| Mechanical and Envrionmental Properties | |||
| Cable bend radius | 10 times the cable diameter | ||
| Operating Temp Range | -20 ℃ to 60℃ | ||
| Cable diamensions | 0.262±0.006"/6.65±0.15mmPVC | ||
| Cross Section | |||
 |
|||
| Attenuation(20℃): | |||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
| 5 | 0.58 | 1.90 | |
| 55 | 1.60 | 5.25 | |
| 83 | 1.95 | 6.40 | |
| 187 | 2.85 | 9.35 | |
| 211 | 3.05 | 10.00 | |
| 250 | 3.30 | 10.82 | |
| 300 | 3.55 | 11.64 | |
| 350 | 3.85 | 12.63 | |
| 400 | 4.15 | 13.61 | |
| 450 | 4.40 | 14.43 | |
| 500 | 4.66 | 15.29 | |
| 550 | 4.90 | 16.08 | |
| 600 | 5.10 | 16.73 | |
| 750 | 5.65 | 18.54 | |
| 865 | 6.10 | 20.01 | |
| 1000 | 6.55 | 21.49 | |
| Order Informations: | |||
| Marking | HELLOSIGNAL RG6/U S BC 95% BC PVC CCTV COAXIAL CABLE 7100061 ×××M/FT |
||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
| Delivery time | Normally 25 days after received the deposit. | ||
| Brand | HELLOSIGNAL® OR OEM | ||
