95% CCA Braiding RG59 Coaxial Cable Bare Copper Conductor CMR Rated PVC Jacket

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: ISO, UL, CE, RoHS
Model Number: RG59 Coaxial Cable
Minimum Order Quantity: 30 KM
Packaging Details: 305M, 1000FT, Wooden Reel, Carton
Delivery Time: Normally 15 days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Contact Now
Detail Information
Conductor: Bare Copper Insulation: Foamed PE
1st Shield: Bonded AL-Foil 2nd Shield: CCA Braiding
Jacket: PVC Color: Black, White
Package: 305M, 1000FT, Wooden Reel, Carton

Product Description





95% CCA Braiding RG59 Coaxial Cable Bare Copper Conductor CMR Rated PVC Jacket



Visit our official website to learn more about CCTV Coaxial Cable

https://www.zion-communication.com/cctv-coaxial-cable-products-catalog.html



Quick Detail:



  • RG59 Coaxial Cable
  • 20 AWG BC Conductor
  • 95% CCA Braiding
  • Bonded Aluminum Foil
  • Foamed PE Insulation
  • 75 Ohms CATV Cable
  • PVC- UL Listed,CMR Rated
  • RoHS Compliant
  • 305M, 1000FT, Wooden Reel, Carton
  • MOQ: 30 KM



Description:



KT0704 RG59 Coaxial Cable 20AWG BC B.ALF FPE 95% CCA Braiding CMR Rated PVC

RG-59/U is a specific type of CCTV coaxial cable , RG59/U (Produced by Zion communication) is perfect

for any type of surveillance camera installation. RG59/U has a characteristic impedance of 75 ohms.

Zion communication using best raw material and best worker to produce RG59/U to meet high performance in

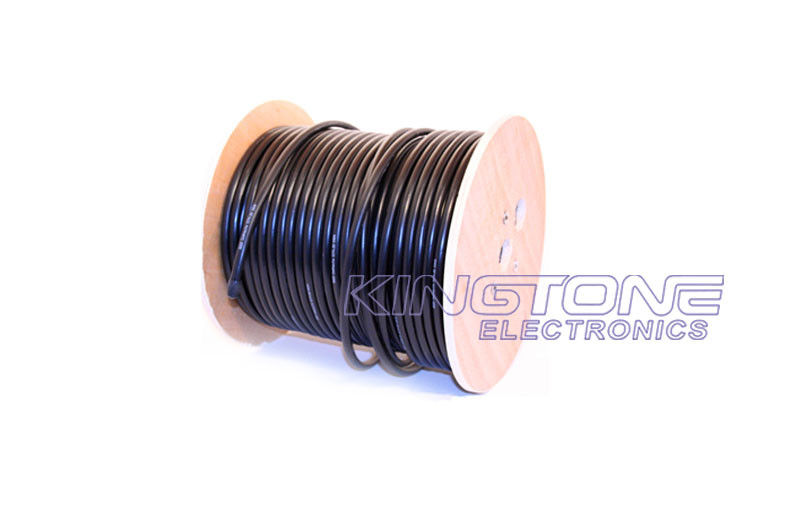

practical application. RG59/U is packed in 500FT/1000FT plastic/wooden spool, and will be layed on

pallet to protect the spool and easier carry.Because of good managing methods,

Zion communication’S price of RG59/U is not high although our quality is really high.





Applications:



Suitable for Signal Transmission

■ CCTV

■ Local Area Network

■ Digital Video

■ Monitor / VDT Display

■ Security Camera





Specifications:



KT0704 RG59 Coaxial Cable 20AWG BC FPE Bonded AL-Foil 95% CCA Braiding CMR Rated PVC
Construction Parameters:
  Inner Conductor 0.032"/0.81mm/20AWG Bare Copper
  Dielectric 0.144"/3.66±0.05mm   Foamed Polyethylene
  First Shield Bonded Aluminum Foil
  Second Shield Nom. 0.161"/4.10mm   Braiding
  Strands 0.005"/0.12mm Copper Clad Aluminum
  % Coverage 95 nom
  Jacket 0.236"/6.00±0.1mm           PVC (ETL/UL CMR)
  Application For Use in Intermediate CCTV Run Lengths
  Limited Length Typical run length up to 600 feet

Electrical Characteristics:
  Capacitance 52±1 pF/m 17±0.35 pF/ft
  Impedance 75±3 Ω
  Resistance 35.73 Ohms/KM 11.71 Ohms/KFT
  Return loss between 5 and 1000MHz > 22dB
  Velocity of Propagation  0.85
  Shielding Effectiveness(>dB) 70
  Max Operating Voltage(KVMS) 3
  Operating Temp Range  (PVC) -20 ℃ to 60℃
  RoHS YES

Attenuation(20℃):
Frequency
(MHZ)
Max Attenuation
(dB/100ft)
Max Attenuation
(dB/100m)
5 0.92  2.82
55 2.21  6.73
211 4.09  12.47
400 5.49  16.73
550 6.40  19.52
750 7.50  22.87
870 8.09  24.67
1000 8.73  26.64
1450 10.60  32.32
1750 11.78  35.92
2150 13.05  39.80

Order Informations:
Marking Zion communication KT0704 RG59 BC B.ALF 95% CCA COAXIAL CABLE ETL XXXX
RoHS CMR 75C XXX FT/M
Package 500FT, 1000FT, Plastic / Wooden Spool, Carton
Delivery time Normally 20-25 days after received the deposit.
More informations  Please contact with us.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and Zion communication.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery
