| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | Cu | Dielectric: | Foamed Polyethylene |
|---|---|---|---|
| Shield1: | AL/Pet/Al | Shield2: | TC 70% |
| Power Wire Conductor: | CU | Power Wire Diameter Of Insulation: | PVC (Red,Black) |
| Jacket: | PVC Common |
|
HD70+2×1.00 NO.7102138 |
||||||||
| Similar Type: | ||||||||
| Coaxial Cable | Power Cores | Overall OuterSheath | ||||||
| Catalog No. |
Cond.Type &Nom.D.C.R |
Dielectric | Shielding& %Coverage |
Jacket | Power Wire Cond.Type | Power wire OD of insulation |
Jacket | Nom. Capacitance |
| HD70+2×0.50 NO.7102136 |
0.70mm (SOL)Cu | Foam FEP |
1.AL/Pet/Al 2.TC-Braid 70% |
4.3mm PVC | 2x (16×0.19mm CU) |
1.8mmPVC (Red,Black) |
7.7×6.3mm PVC Common |
52 ±3 pF/m |
| HD70+2×0.75 NO.7102137 |
0.70mm (SOL)Cu | Foam FEP |
1.AL/Pet/Al 2.TC-Braid 70% |
4.3mm PVC | 2x (24×0.19mm CU) |
2.0mmPVC (Red,Black) |
7.9×6.4mm PVC Common |
52 ±3 pF/m |

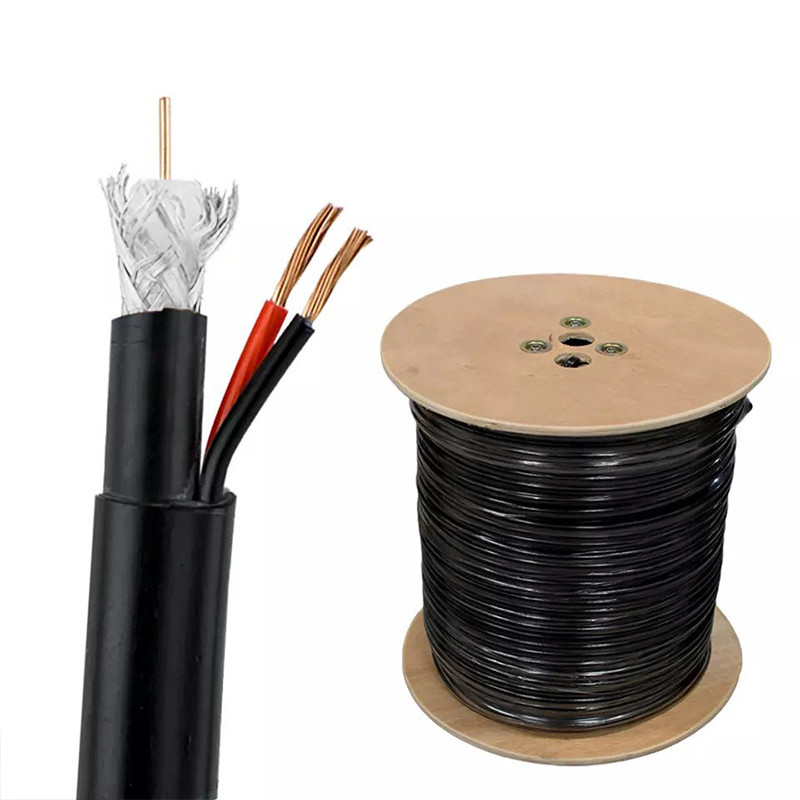

| Construction Parameters: | ||||||||
| Inner Conductor | 0.70mm Cu | |||||||
| Dielectric | 2.9mm Foamed Polyethylene | |||||||
| Shield 1 | AL/Pet/Al | |||||||
| Shield 2 | TC 70% | |||||||
| Jacket | 4.3mm PVC | |||||||
| Power Wire Conductor | 2x(32×0.19mmCU ) | |||||||
| Power wire Diameter of insulation | 2.2mmPVC(Red,Black) | |||||||
| Jacket | 8.15×6.55mm PVC Common | |||||||
| Application | For Use in Longer CCTV Run Lengths | |||||||
| Electrical Characteristics: | ||||||||
| Inner Conductor Resistance | The Max. at 20℃ shall be < 64.9 Ω/km | |||||||
| Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | |||||||
| Impedance | 75 ± 3 Ω | |||||||
| Return loss | between 5 and 1000MHz: > 20dB | |||||||
| Velocity of Propagation | 0.82 | |||||||
| Sparker Test (VAC) | 3 | |||||||
| Mechanical and Envrionmental Properties | ||||||||
| Cable bend radius | 10 times the cable diameter | |||||||
| Operating Temp Range | -20 ℃ to 60℃ | |||||||
| Cable diamensions | 8.15×6.55mm | |||||||
| Cross Section | ||||||||
 |
||||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||||||
| 1 | 1.80 | |||||||
| 5 | 2.80 | |||||||
| 10 | 3.90 | |||||||
| 50 | 7.90 | |||||||
| 100 | 11.10 | |||||||
| 200 | 15.10 | |||||||
| 400 | 21.80 | |||||||
| 700 | 29.80 | |||||||
| 900 | 34.40 | |||||||
| 1000 | 36.00 | |||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL HD70+2×1.00 CCTV COAXIAL CABLE 7102138 ×××M/FT |
|||||||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
