| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | Cu | Dielectric: | Foamed Polyethylene |
|---|---|---|---|
| Shield1: | AL/Pet/Al | Shield2: | TC 70% |
| Power Wire Conductor: | CU | Power Wire Diameter Of Insulation: | PVC (Red,Black) |
| Jacket: | PVC Common |
|

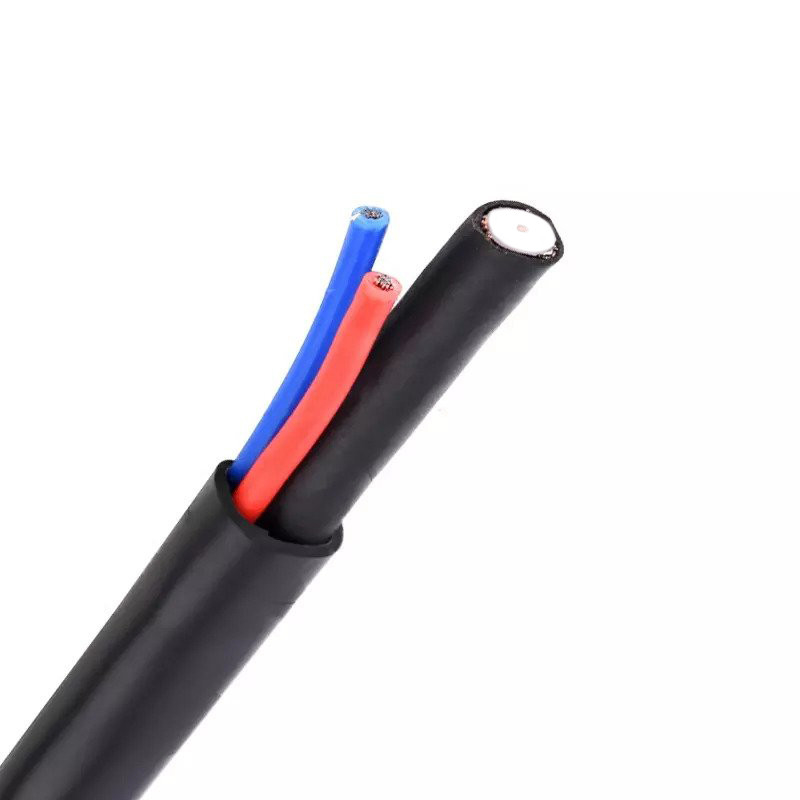

HD60+2×0.75 75 Ohm CCTV coaxial Cable NO.7102135 |
||
| Construction Parameters: | ||
| Inner Conductor | 0.60mm Cu | |
| Dielectric | 2.8mm Foamed Polyethylene | |
| Shield 1 | AL/Pet/Al | |
| Shield 2 | TC 70% | |
| Jacket | 4.5mm PVC | |
| Power Wire Conductor | 2x(24×0.19mmCU ) | |
| Power wire Diameter of insulation | 2.0mmPVC(Red,Black) | |
| Jacket | 8.1×6.7mm PVC Common | |
| Application | For Use in Longer CCTV Run Lengths | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance | The Max. at 20℃ shall be < 64.9 Ω/km | |
| Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | |
| Impedance | 75 ± 3 Ω | |
| Return loss | 20dB | |
| Velocity of Propagation | 0.82 | |
| Sparker Test (VAC) | 3 | |
| Mechanical and Envrionmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ℃ to 60℃ | |
| Cable diamensions | 8.1×6.7mm | |
| Cross Section | ||
 |
||
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 1 | 1.80 | |
| 5 | 2.80 | |
| 10 | 3.90 | |
| 50 | 7.90 | |
| 100 | 11.10 | |
| 200 | 15.10 | |
| 400 | 21.80 | |
| 700 | 29.80 | |
| 900 | 34.40 | |
| 1000 | 36.00 | |
| Order Informations: | ||
| Marking | HELLOSIGNAL HD60+2×0.75 CCTV COAXIAL CABLE 7102135 ×××M/FT |
|
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
