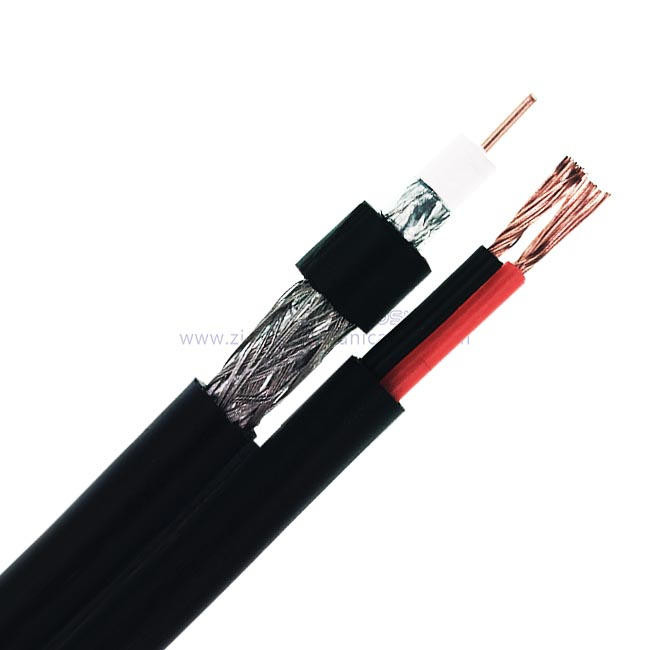

| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | 18AWG CCS | Dielectric: | Solid Polyethylene |
|---|---|---|---|
| Shield1: | Bonded Aluminum Foil Shield | Shield2: | AL Braid Wire 95% Coverage |
| Power Wire Conductor: | BC | Power Wire Diameter Of Insulation: | PE/PVC (Red,Black) |
| Jacket: | PVC |
|
RG6/U+2C18AWG Figure 8 NO.7102001 |
||||||||
| Similar Type: | ||||||||
| Catalog No. |
Cond.Type &Nom.D.C.R |
Shielding& %Coverage |
Jacket | Power Wire Cond.Type | Power wire OD of insulation |
Jacket | Nom. Capacitance | Nom.Imp.Ω |
| RG6/U +2C18AWG CM Figure 8 NO.7102002 |
18AWG(SOL)Cu 21.2 Ω/km |
1.B.Al/PET 2.BC-Braid 95% |
6.65mm PVC-CM |
2x18AWG/ (7*0.38mm) BC |
1.9mm PVC-CM (Red,Black) |
5.05mm PVC-CM | 52±3pF/m | 75±3Ω |
| RG6/U+2C 18AWG CMR Figure 8 NO.7102003 |
18AWG(SOL)Cu 21.2 Ω/km |
1.B.Al/PET 2.BC-Braid 95% |
6.65mm PVC-CMR |
2x18AWG/ (7*0.38mm) BC |
1.9mm PVC-CMR (Red,Black) |
5.05mm PVC-CMR | 52±3pF/m | 75±3Ω |
| RG6/U +2C18AWG CMP Figure 8 NO.7102004 |
18AWG(SOL)Cu 21.2 Ω/km |
1.B.Al/PET 2.BC-Braid 95% |
5.9mm PVC-CMP |
2x18AWG/ (7*0.38mm) BC |
1.6mm PVC-CMP (Red,Black) |
3.8mm PVC-CMP | 52±3pF/m | 75±3Ω |
| Construction Parameters: | ||||||||
| Inner Conductor | 1.02mm/0.04"/18AWG CCS | |||||||
| Dielectric | 4.45mm/0.175" Foamed PE | |||||||
| Shield 1 | Bonded Aluminum Foil Shield | |||||||
| Shield 2 | AL braid wire 95% coverage | |||||||
| Jacket | 6.65mm PVC | |||||||
| Power Wire Conductor | 2x18AWG/(16*0.25mm) BC | |||||||
| Power wire Diameter of insulation | 1.9mm PE/PVC (Red,Black) | |||||||
| Jacket | 5.05mmPVC | |||||||
| Application | For Use in Longer CCTV Run Lengths | |||||||
| Electrical Characteristics: | ||||||||
| Inner Conductor Resistance | The Max. at 20℃ shall be < 87 Ω/km (26.6 Ω/kft) | |||||||
| Capacitance | 52 ±3 pF/m 17±0.3 pF/ft | |||||||
| Impedance | 75 ± 3 Ω | |||||||
| Return loss | between 5 and 1000MHz: > 22dB | |||||||
| Velocity of Propagation | 0.85 | |||||||
| Sparker Test (VAC) | 4 | |||||||
| Mechanical and Envrionmental Properties | ||||||||
| Cable bend radius | 10 times the cable diameter | |||||||
| Operating Temp Range | -20 ℃ to 60℃ | |||||||
| Cable diamensions | 6.65×5.05mm | |||||||
| Cross Section | ||||||||
 |
||||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||||||
| 5 | 0.58 | 1.90 | ||||||
| 55 | 1.60 | 5.25 | ||||||
| 83 | 1.95 | 6.40 | ||||||
| 187 | 2.85 | 9.35 | ||||||
| 211 | 3.05 | 10.00 | ||||||
| 250 | 3.30 | 10.82 | ||||||
| 300 | 3.55 | 11.64 | ||||||
| 350 | 3.85 | 12.63 | ||||||
| 400 | 4.15 | 13.61 | ||||||
| 450 | 4.40 | 14.43 | ||||||
| 500 | 4.66 | 15.29 | ||||||
| 550 | 4.90 | 16.08 | ||||||
| 600 | 5.10 | 16.73 | ||||||
| 750 | 5.65 | 18.54 | ||||||
| 865 | 6.10 | 20.01 | ||||||
| 1000 | 6.55 | 21.49 | ||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL RG6/U+2C18AWG Figure 8 CCTV COAXIAL CABLE 7102001 ×××M/FT |
|||||||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
