| Place of Origin: | China |
|---|---|
| Brand Name: | hellosignal |
| Certification: | UL, CE, RoHS |
| Model Number: | CCTV SURVEILLANCE CABLE |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500FT, 1000FT Wooden Reel or Spool in Box |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | Bare Copper | Dielectric: | Solid Polyethylene |
|---|---|---|---|
| Shield: | BC-Braid(95%) | Power Wire Conductor: | BC |
| Power Wire Diameter Of Insulation: | PVC(Red,Black) | Jacket: | UV-PE |
| Messenger: | Steel |
|

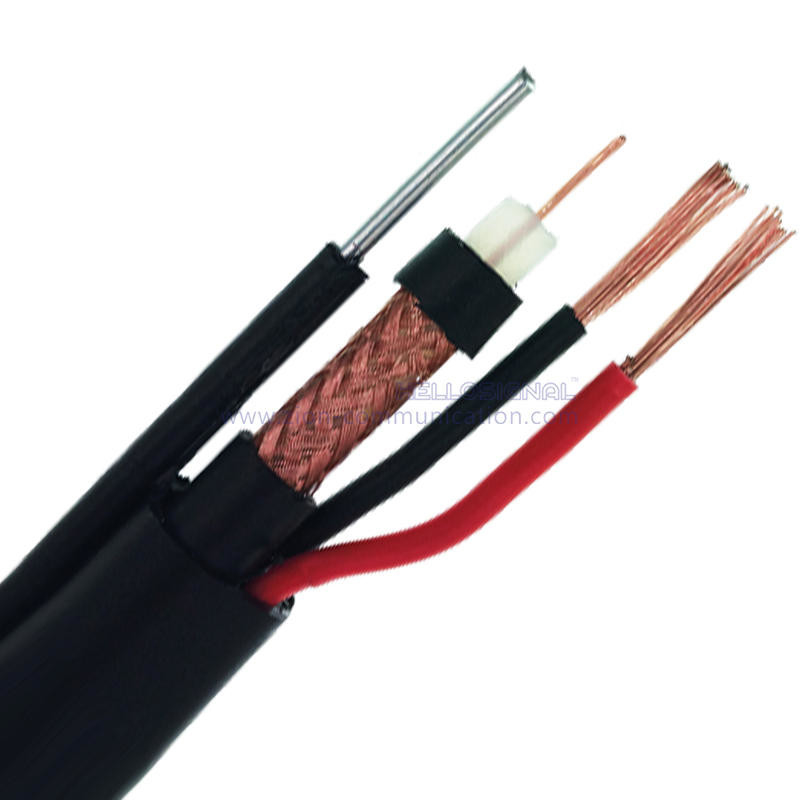

RG59 B/U + 2C0.75 Common Outdoor M 75 Ohm CCTV coaxial Cable NO.7102039 |
||
| Construction Parameters: | ||
| Inner Conductor | 0.58mm Bare Copper | |
| Dielectric | 0.144"/3.66±0.05mm Solid Polyethylene | |
| Shield | 0.12mm CCA-Braid(95%) | |
| Jacket | 0.236"/6.00±0.1mm PVC/PE/LSZH | |
| Power Wire Conductor | 2x(17*0.25mmBC ) | |
| Power wire Diameter of insulation | 2.0mmPVC(Red,Black) | |
| Jacket | 9.6mmUV-PE | |
| Messenger | 1.3mmSteel | |
| Application | For Use in Longer CCTV Run Lengths | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance |
The Max. at 20℃ shall be < 65.26 Ohms/KM |
|
| Capacitance | 67±2 pF/m | |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.66 | |
| Sparker Test (VAC) | 3 | |
| Mechanical and Envrionmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ℃ to 60℃ / -40 ℃ to 75℃ | |
| Cable diamensions | 9.6×2.5mm | |
| Cross Section | ||
 |
||
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 1 | 0.64 | 1.96 |
| 10 | 1.18 | 3.61 |
| 50 | 2.58 | 7.87 |
| 100 | 3.66 | 11.15 |
| 200 | 5.27 | 16.07 |
| 400 | 7.53 | 22.97 |
| 700 | 10.44 | 31.83 |
| 900 | 11.93 | 36.40 |
| 1000 | 12.89 | 39.30 |
| Order Informations: | ||
| Marking | HELLOSIGNAL RG59 B/U + 2C0.75 Common Outdoor M CCTV COAXIAL CABLE 7102039 ×××M/FT |
|
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
