| Conductor: | Bare Copper | Dielectric: | Foamed Polyethylene |
|---|---|---|---|
| Shield: | BC-Braid(95%) | Jacket: | PVC-CM |
| Power Wire Conductor: | BC | Power Wire Diameter Of Insulation: | PVC-CM (Red,Black) |
|

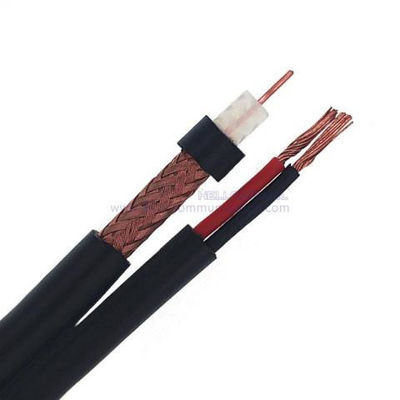

RG59/U +2C18AWG CM Figure 8 NO.7102021 |
||||||||
| Construction Parameters: | ||||||||
| Inner Conductor | 0.032"/0.81mm/20AWG Bare Copper | |||||||
| Dielectric | 0.144"/3.66±0.05mm Foamed Polyethylene | |||||||
| Shield | 0.12mmBC-Braid(95%) | |||||||
| Jacket | 0.236"/6.00±0.1mm PVC-CM | |||||||
| Power Wire Conductor | 2x18AWG/(7*0.38mm) BC | |||||||
| Power wire Diameter of insulation | 0.075"/1.90mm PVC-CM (Red,Black) | |||||||
| Jacket | 0.199"/5.05±0.1mm PVC-CM | |||||||
| Application | For Use in Longer CCTV Run Lengths | |||||||
| Electrical Characteristics: | ||||||||
| Inner Conductor Resistance | The Max. at 20℃ shall be < 33.5 Ω/km (10.3 Ω/kft) | |||||||
| Capacitance | 52 ±3 pF/m 17±0.3 pF/ft | |||||||
| Impedance | 75 ± 3 Ω | |||||||
| Return loss | between 5 and 1000MHz: > 22dB | |||||||
| Velocity of Propagation | 0.85 | |||||||
| Sparker Test (VAC) | 4 | |||||||
| Mechanical and Envrionmental Properties | ||||||||
| Cable bend radius | 10 times the cable diameter | |||||||
| Operating Temp Range | -20 ℃ to 60℃ | |||||||
| Cable diamensions | 6.0×5.05mm | |||||||
| Cross Section | ||||||||
 |
||||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||||||
| 5 | 0.86 | 2.82 | ||||||
| 55 | 2.05 | 6.73 | ||||||
| 83 | 2.45 | 8.04 | ||||||
| 187 | 3.60 | 11.81 | ||||||
| 211 | 3.80 | 12.47 | ||||||
| 250 | 4.10 | 13.45 | ||||||
| 300 | 4.45 | 14.60 | ||||||
| 350 | 4.80 | 15.75 | ||||||
| 400 | 5.10 | 16.73 | ||||||
| 450 | 5.40 | 17.72 | ||||||
| 500 | 5.70 | 18.70 | ||||||
| 550 | 5.95 | 19.52 | ||||||
| 600 | 6.20 | 20.34 | ||||||
| 750 | 6.97 | 22.87 | ||||||
| 865 | 7.52 | 24.67 | ||||||
| 1000 | 8.12 | 26.64 | ||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL RG59/U +2C18AWG CM Figure 8 CCTV COAXIAL CABLE 7102021 ×××M/FT |
|||||||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
| Similar Type: | ||||||||
| Coaxial Cable | Power Cores | |||||||
| Catalog No. |
Cond.Type &Nom.D.C.R |
Dielectric | Shielding& %Coverage |
Jacket | Power Wire Cond.Type | Power wire OD of insulation |
Jacket | Nom. Capacitance |
| RG59/U +2C18AWG CMR Figure 8 NO.7102022 |
20AWG(SOL)BC 33.5 Ω/km |
Foam FEP |
BC-Braid 95% | 6.00mm PVC-CMR |
2x18AWG/ (7*0.38mm) BC |
1.90mm PVC-CMR (Red,Black) |
5.05mm PVC-CMR |
52±3 pF/m |
| RG59/U +2C18AWG CMP Figure 8 NO.7102023 |
20AWG(SOL)BC 33.5 Ω/km |
Foam FEP |
BC-Braid 95% | 5.1mm PVC-CMP |
2x18AWG/ (7*0.38mm) BC |
1.60mm PVC-CMR (Red,Black) |
3.8mm PVC-CMP |
52±3 pF/m |
