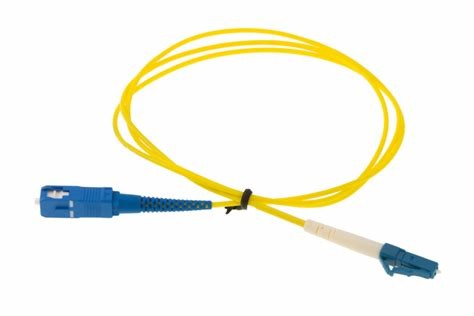

SC to LC Simplex Fiber Jumper Singlemode 9/125 μm with PVC or LSZH Jacket Fiber Optic Patch Cord

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	SC to LC Simplex Singlemode

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PCS/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 woring days
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	YOFC, G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Filling:	Aramid Yarn	Jacket:	PVC Or LSZH
Color:	Yellow	Package:	1 PCS/Plastic Bag, PCS/Carton
Highlight:	multimode fiber optic cable , fiber optical patch cord

Product Description

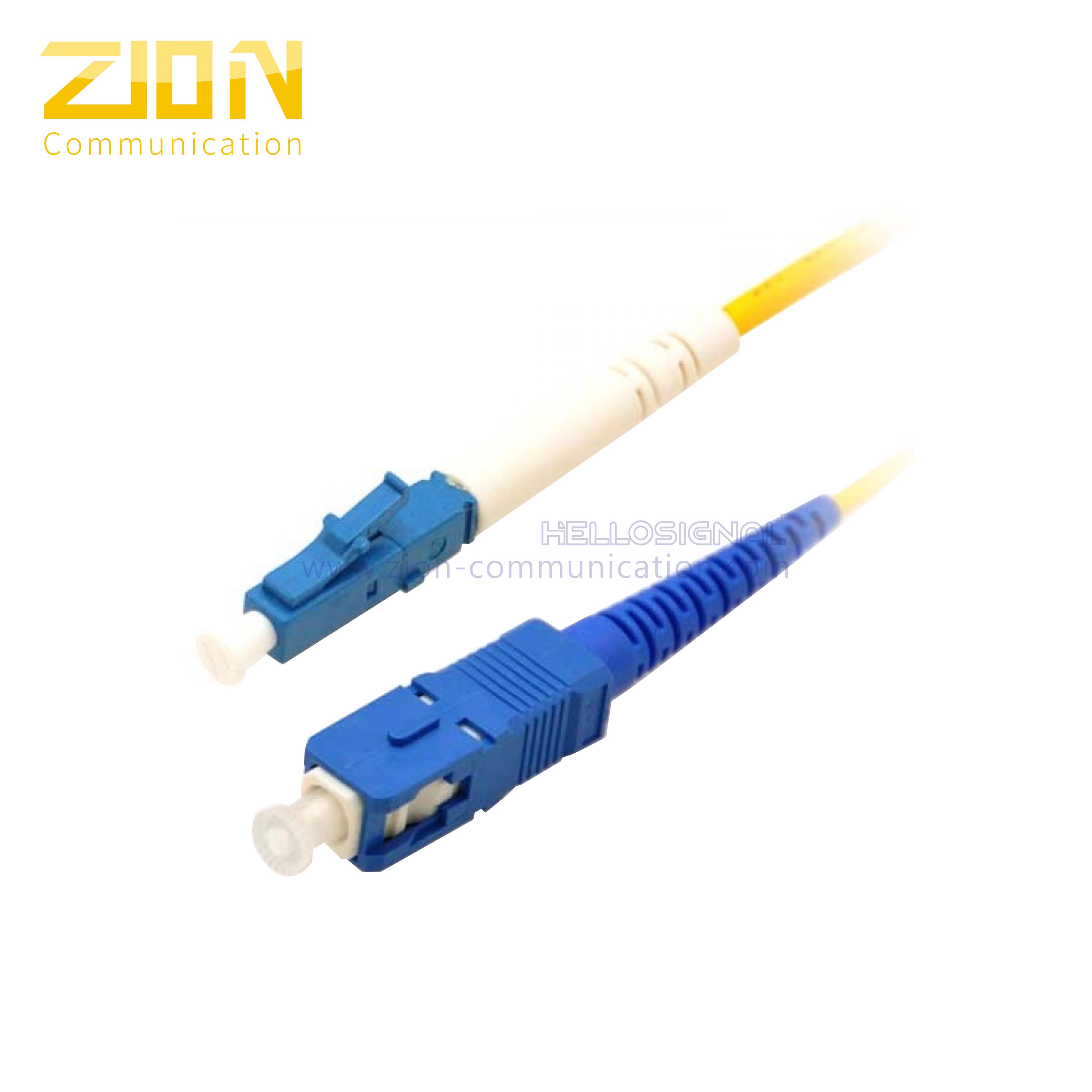

Fiber Jumper SC to LC Simplex Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

Product Overview

This SC to LC simplex fiber optic patch cord is designed for singlemode applications with 9/125 μm fiber. Featuring high-performance connectors and durable construction, it ensures reliable connectivity in telecommunications and data center environments.

Key specifications include:

Fiber Optic Jumper / Patch Cord
SC to LC Singlemode Duplex configuration
SC/UPC and LC/UPC Singlemode connectors
9/125 μm Singlemode fiber
3.00mm outer diameter
Yellow color coding
PVC or LSZH jacket material
Certifications: ISO, CE, RoHS, UL

Product Description

A fiber optic patch cord is a fiber optic cable capped at both ends with connectors that allow it to be rapidly and conveniently connected to CATV, optical switches, or other telecommunication equipment. Its thick protective layer is used to connect optical transmitters, receivers, and terminal boxes.

Fiber optic patch cords are characterized by:

Low insertion loss
High return loss
Good repeatability
Excellent interchangeability
Superior environmental adaptability

Technical Specifications

Connector Type	SC/UPC Singlemode
Connector Type	LC/UPC Singlemode
Zipcord Cable	9/125 μm Singlemode
Cable Jacket (OD: 3.0mm)	Yellow Color, PVC material
Insertion Loss	< 0.3 dB
Fiber Extension	-0.05μm < H < + 0.05μm
Ferrule End-face Radius	10 < R < 25mm
Apex Offset	< 50 μm
Increase in insertion loss after 500 mating	0.2 dB Max
Operation Temperature	-20℃ to +70 ℃
Storage Temperature	-20℃ to +80 ℃
Humidity (non-condensing)	95% RH

Quality & Competitive Advantages

Comprehensive Quality Control: From raw materials to final products, we perform intensive quality checks including incoming material inspection, manufacturing process control, worker training, and final product verification
Advanced R&D: Our research and development efforts focus on reinforcing and developing element technologies to support future growth for customers
24/7 Customer Support: Skilled at effective communication with prompt service availability
Rapid Response: Quick and professional handling of inquiries
Extensive Product Range: More than 1000 kinds of cables, connectors, and assemblies available
Timely Delivery: Commitment to on-time shipment
