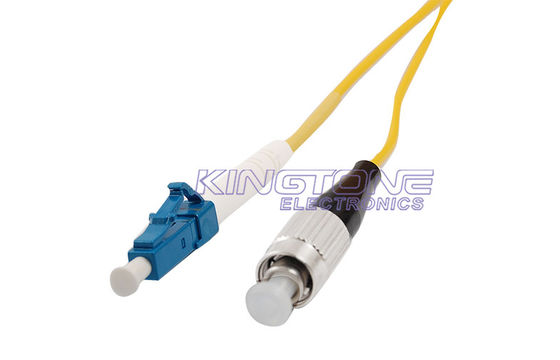

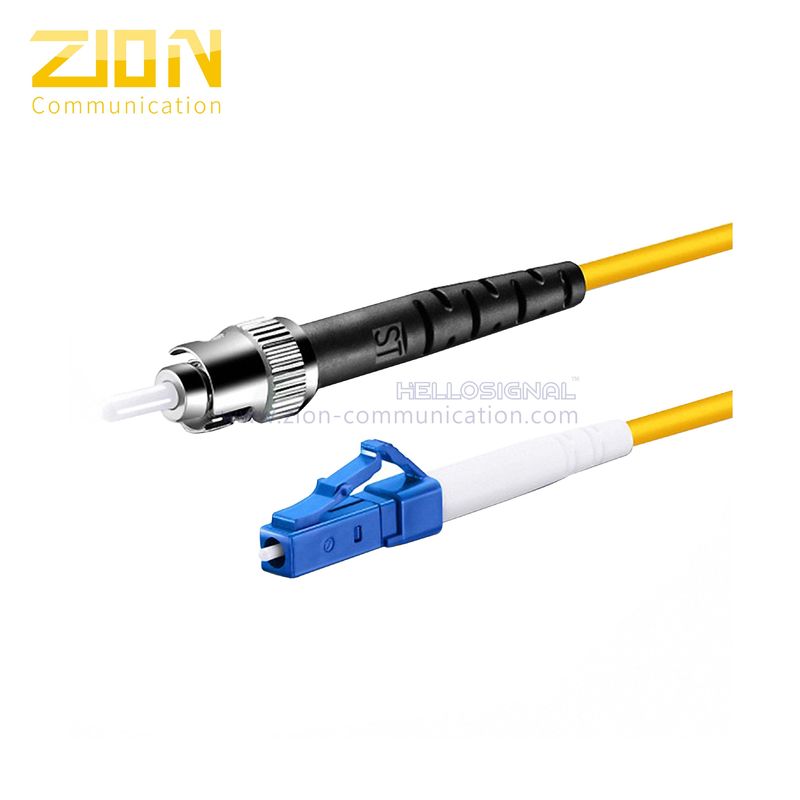

Simplex ST to LC Fiber Optic Patch Cord Singlemode 9/125 um with PVC or LSZH Jacket for Reliable Connectivity

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	ST to LC Simplex Singlemode

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 working days
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	YOFC, G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Filling:	Aramid Yarn	Jacket:	PVC Or LSZH
Color:	Yellow	Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	multimode fiber optic cable , fiber optical patch cord

Product Description

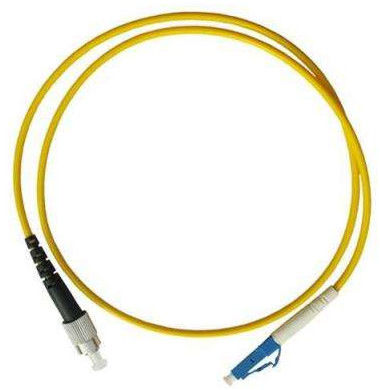

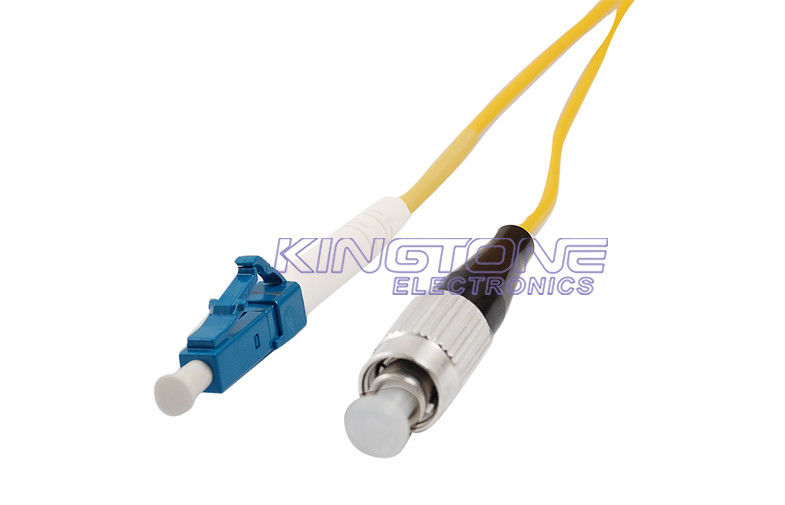

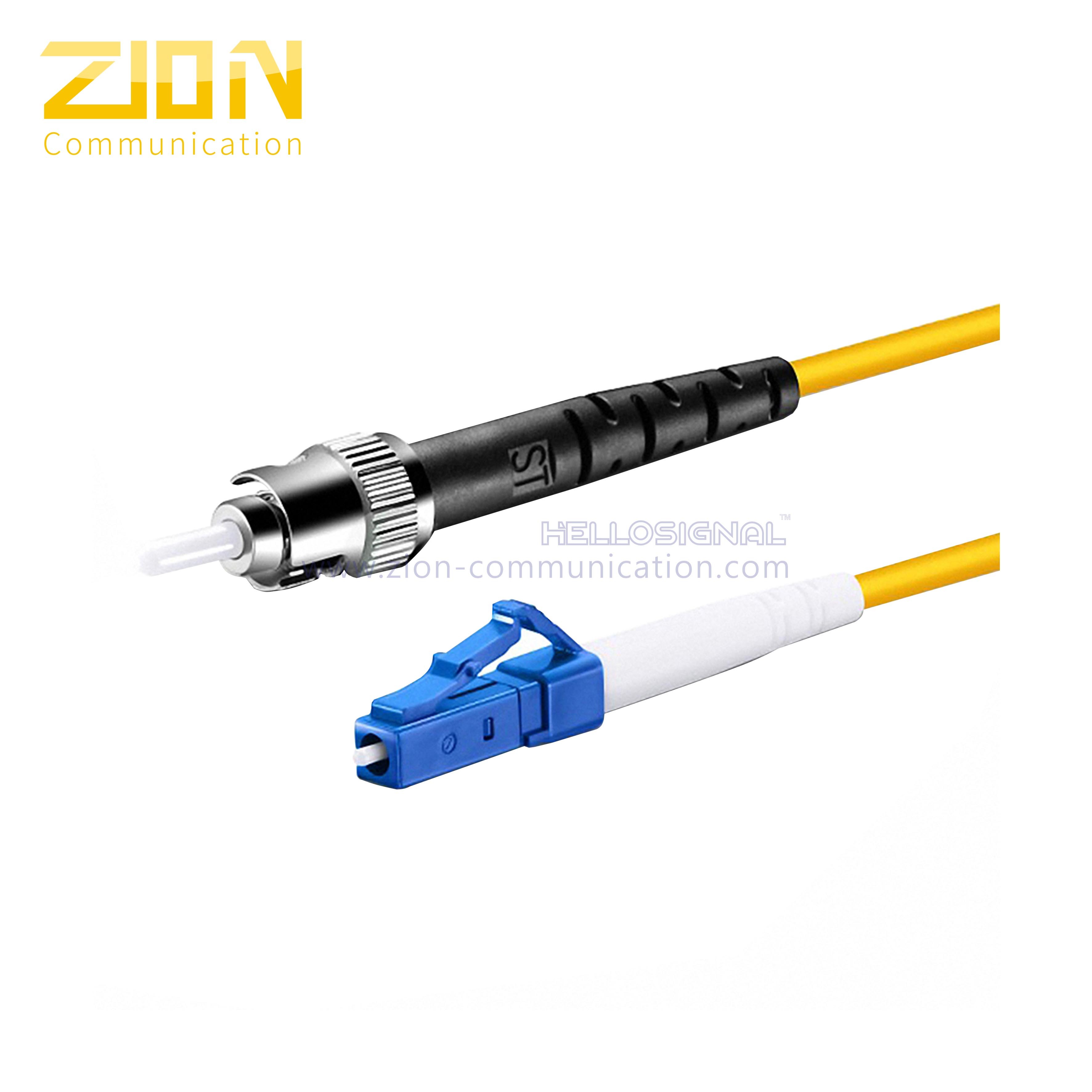

Simplex ST to LC Fiber Optic Patch Cord Singlemode

A high-performance fiber optic patch cord designed for reliable telecommunications connections between CATV systems, optical switches, and other equipment.

Product Specifications

Quick Details

Fiber Optic Jumper / Patch Cord
ST to LC Simplex Singlemode configuration
ST/UPC Singlemode connectors
9/125 um Singlemode fiber
3.00mm outer diameter
Yellow color coding
PVC or LSZH jacket material options
Certifications: ISO, CE, RoHS, UL

Technical Specifications

Connector Type (End 1)	ST/UPC Singlemode
Connector Type (End 2)	LC/UPC Singlemode
Zipcord Cable	9/125 um Singlemode
Cable Jacket	Yellow Color, PVC material, 3.0mm OD
Insertion Loss	< 0.3 dB
Fiber Extension	-0.05um < H < + 0.05um
Ferrule End-face Radius	10 < R < 25mm
Apex Offset	< 50 um
Insertion Loss Increase (after 500 matings)	0.2 dB Max
Operation Temperature	-20℃ to +70 ℃
Storage Temperature	-20℃ to +80 ℃
Humidity (non-condensing)	95% RH

Product Features

Low insertion loss for optimal signal transmission
High return loss performance
Excellent repeatability and interchangeability
Superior environmental adaptability
Durable construction with thick protective layer

Quality Assurance

Our comprehensive quality control process ensures exceptional product reliability:

Incoming material inspection by QC team
Rigorous manufacturing process control
Regular employee training programs
Work instructions at each station
5S system implementation
Structured machine maintenance procedures
Final product inspection and testing

Company Advantages

Continuous R&D investment in fiber optic technologies
24/7 customer support and rapid response
Extensive product portfolio with over 1000 cable, connector, and assembly options
Timely delivery and professional service
