Place of Origin: | CHINA |
---|---|
Brand Name: | Zion communication OR OEM |
Certification: | ISO, CE, RoHS, UL |
Model Number: | ST to SC Simplex Singlemode |
Minimum Order Quantity: | 1,000 PCS |
Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
Delivery Time: | Normally 10 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 30,000 PCS / Month |
Fiber Unit: | YOFC, G.652D Or G.657A | Tight Buffer Fiber: | Tight Buffer Fiber |
---|---|---|---|
Filling: | Aramid Yarn | Jacket: | PVC Or LSZH |
Color: | Yellow | Package: | 1 PC/Plastic Bag, PCS/Carton |
High Light: | multimode fiber optic cable,duplex patch cord |

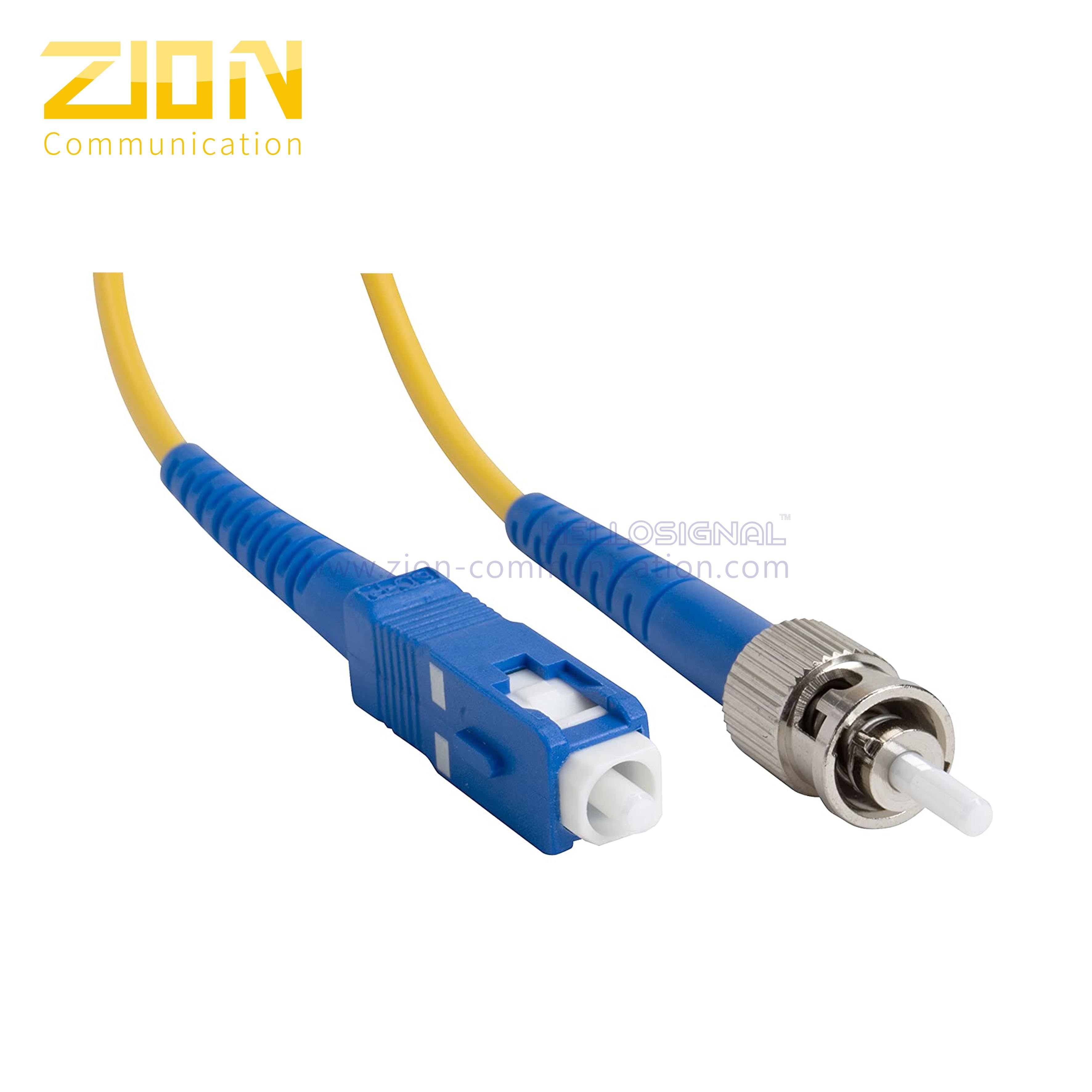

ST to SC Simplex Singlemode 9 / 125 μm Fiber Optic Patch Cord in Yellow PVC Jacket
Quick Details
Description
A fiber optic patch cord is a fiber optic cable capped at either and with connectors that
allow it to be rapidly and conveniently connected to CATV, an optical switch or other
telecommunication equipment. Its thick layer of protection is used to connect the
optical transmitter , receiver and the terminal box.
Fiber optic patch cords are characterized by:
Low insertion loss
High return loss
Good repeatability
Good interchange
Excellent environmental adaptability
Specification | |
Connector Type | ST/UPC Singlemode |
Connector Type | SC/UPC Singlemode |
Zipcord Cable | 9/125 μm Singlemode |
Cable Jacket ( OD: 3.0mm ) | Yellow Color, PVC material |
Shrink Tube | |
Perfomance | |
Insertion Loss | < 0.3 dB |
Fiber Extention | -0.05um < H < + 0.05um |
Ferrule End - face Radius | 10 < R < 25mm |
Apex Offset | < 50 um |
Increase in insertion loss after 500 mating | 0.2 dB Max |
Operation Temperature | -20℃ to +70 ℃ |
Storage Temperature | -20℃ to +80 ℃ |
Humidity (non- condensing) | 95% RH |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and Zion communication.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire.
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us.
6, Intime delivery
