Singlemode LC to LC Simplex Fiber Optic Patch Cord with 3.0mm Yellow PVC Jacket and G.652D or G.657A Fiber Unit

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC to LC Simplex Singlemode

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 working days
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	YOFC, G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Filllling:	Aramid Yarn	Jacket:	PVC Or LSZH
Color:	Yellow	Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	multimode fiber optic cable , fiber optical patch cord

Product Description

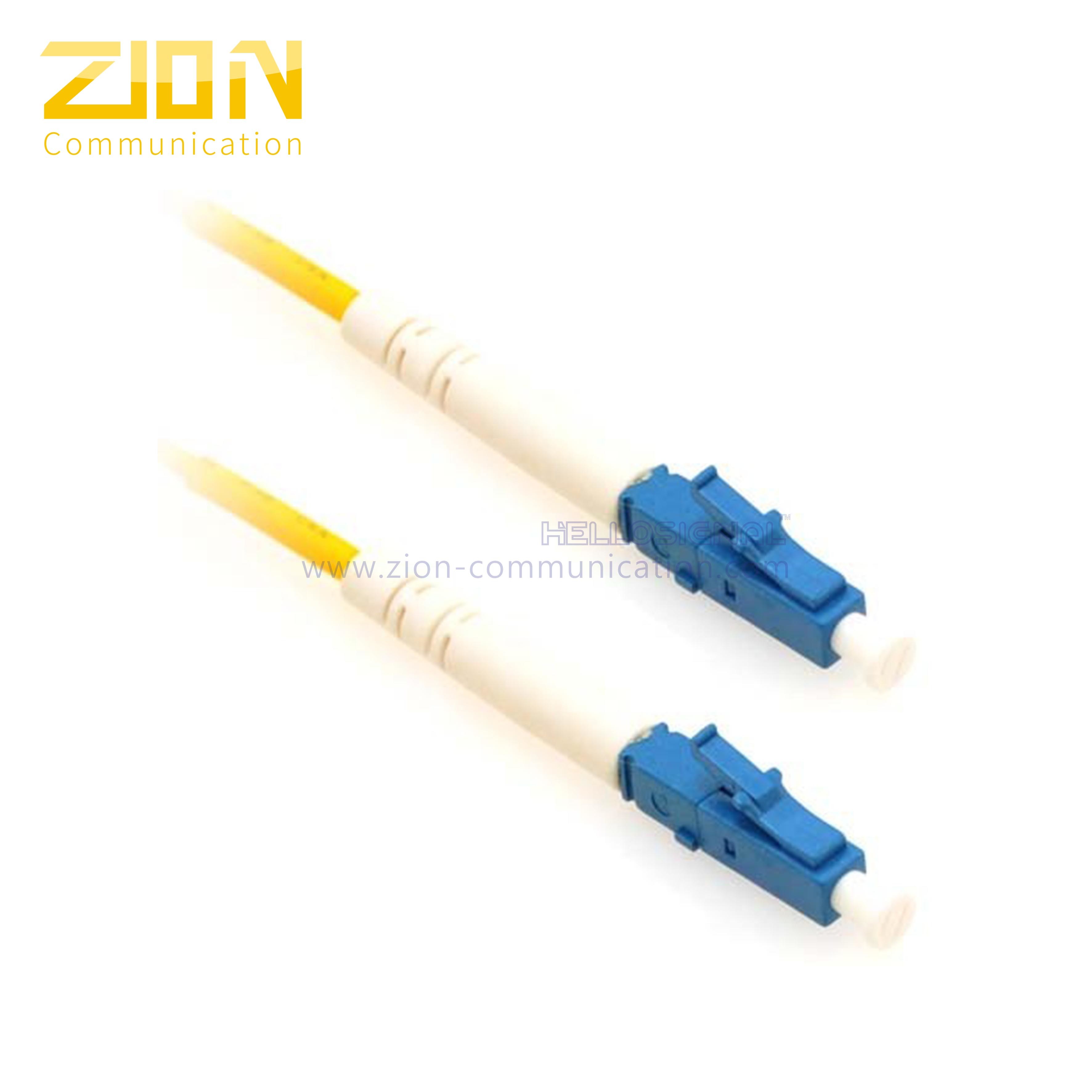

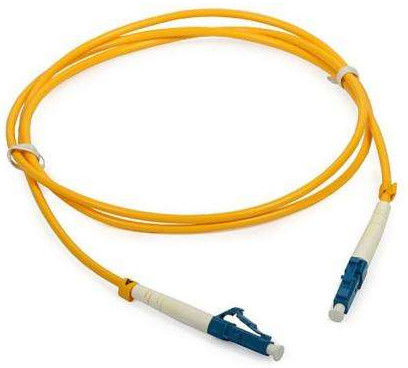

Singlemode LC to LC Simplex Fiber Optic Patch Cord

High-performance fiber optic patch cord with 3.0mm yellow PVC jacket, designed for reliable telecommunications and CATV applications.

Product Specifications

Connector Type	LC/UPC Singlemode
Zipcord Cable	9/125 um Singlemode
Cable Jacket (OD: 3.0mm)	Yellow Color, PVC material
Insertion Loss	< 0.5 dB
Fiber Extension	-0.05um < H < + 0.05um
Ferrule End-face Radius	10 < R < 30mm
Apex Offset	< 50 um
Increase in Insertion Loss after 500 mating	0.2 dB Max
Operation Temperature	-20℃ to +70 ℃
Storage Temperature	-20℃ to +80 ℃
Humidity (non-condensing)	95% RH

Key Features

Low insertion loss for optimal signal transmission
High return loss performance
Excellent repeatability and interchangeability
Superior environmental adaptability
Compliant with ISO, CE, RoHS, and UL standards

Product Description

This fiber optic patch cord features connectors at both ends for rapid connection to CATV systems, optical switches, and telecommunications equipment. The durable PVC jacket provides robust protection for connecting optical transmitters, receivers, and terminal boxes in demanding environments.

Quality Assurance

Comprehensive quality checks from raw materials to final products
Strict manufacturing process control and worker training
5S system implementation and machine maintenance procedures
Dedicated R&D efforts supporting customer growth and success
24/7 customer support and prompt response to inquiries
Extensive product catalog with over 1000 cable, connector, and assembly options
Reliable on-time delivery
