SC to LC Simplex Multimode 62.5 / 125 μm Fiber Optic Patch Cord with PVC or LSZH Jacket for Transmitter

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	SC to LC Simplex Multimode

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 working days
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	YOFC, G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Filling:	Aramid Yarn	Jacket:	PVC Or LSZH
Color:	Orange	Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	duplex patch cord , fiber optical patch cord

Product Description

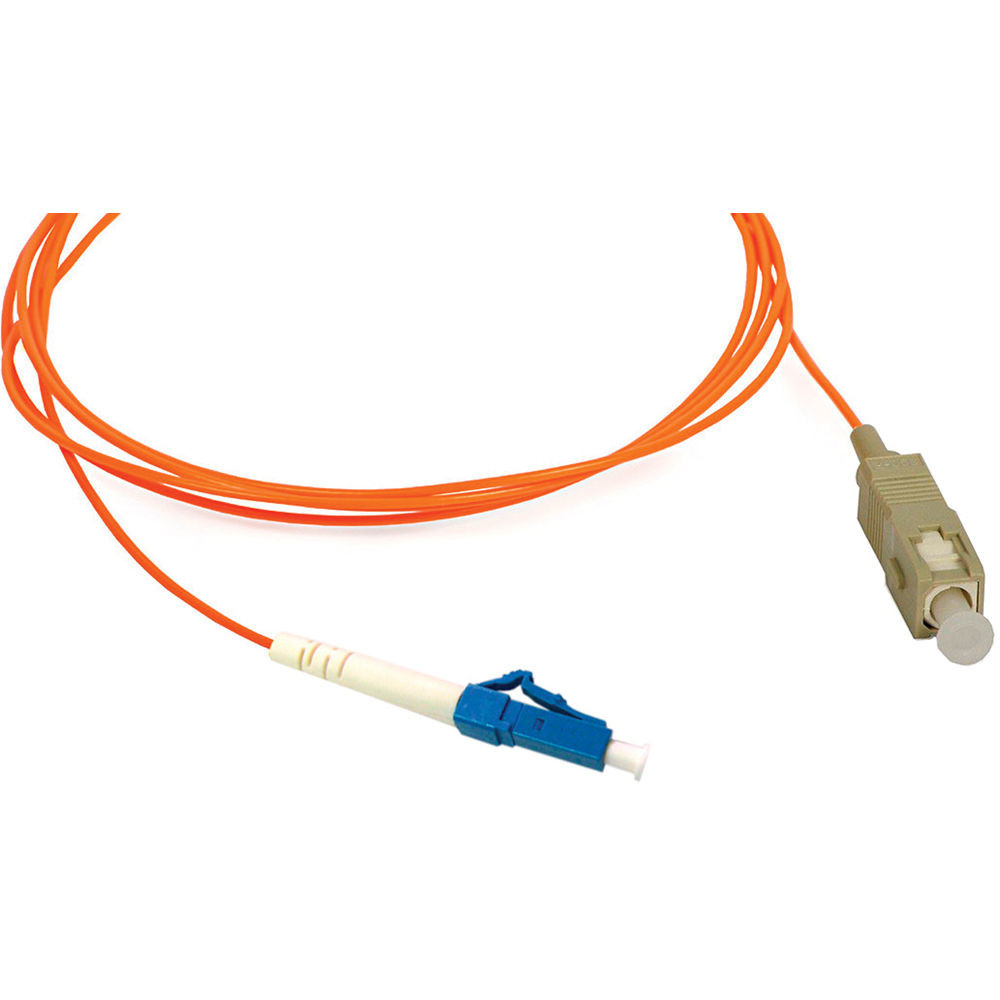

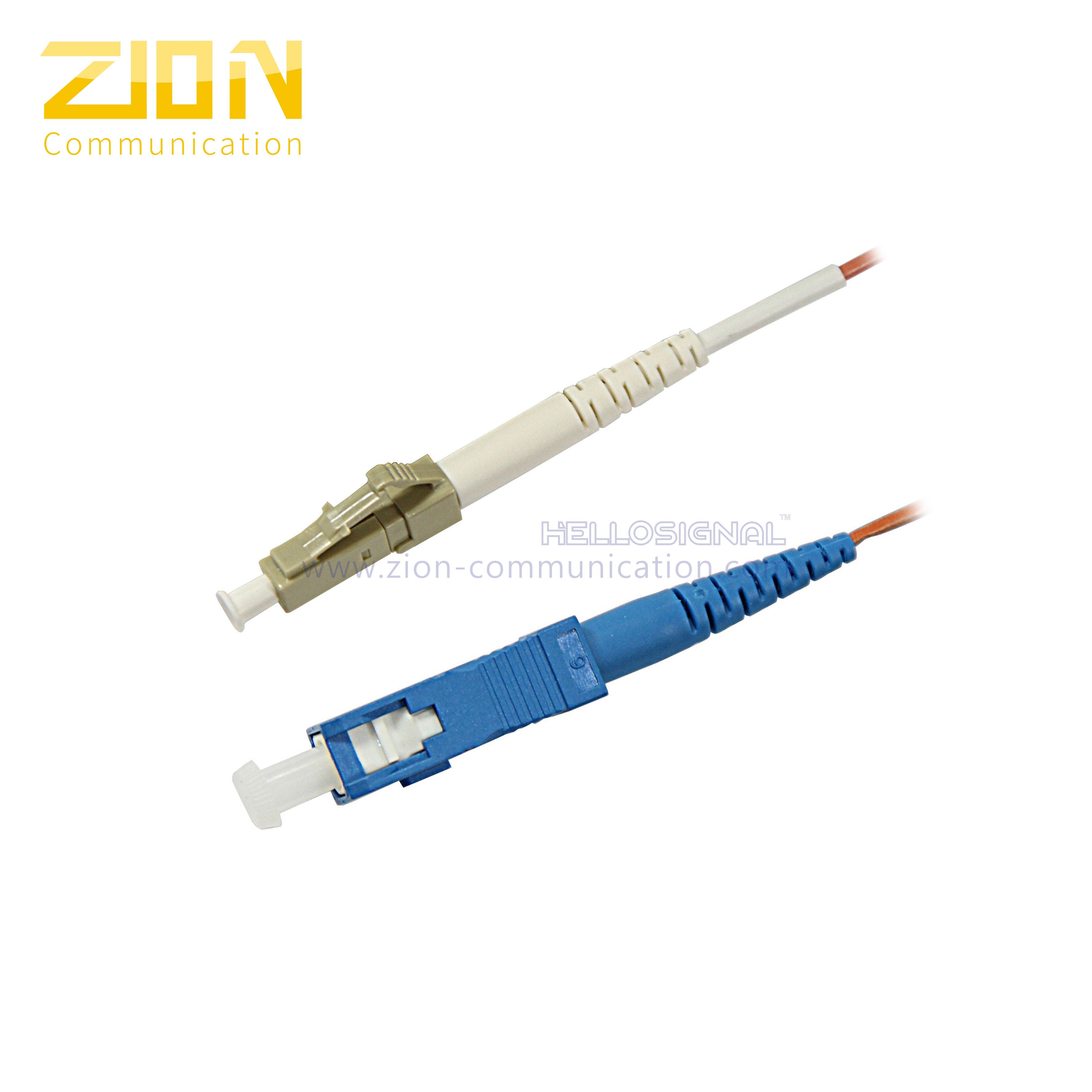

SC to LC Simplex Multimode 62.5/125 μm Fiber Optic Patch Cord

Professional fiber optic patch cord designed for transmitter applications, featuring SC to LC simplex multimode connectivity with 62.5/125 μm fiber specification.

Product Overview

A fiber optic patch cord is a fiber optic cable capped at both ends with connectors that allow it to be rapidly and conveniently connected to CATV, optical switches, or other telecommunication equipment. Its thick layer of protection is used to connect optical transmitters, receivers, and terminal boxes.

Key Features

Low insertion loss
High return loss
Good repeatability
Good interchangeability
Excellent environmental adaptability

Quick Specifications

Fiber Optic Patch Cord / Jumper
SC to LC Simplex Multimode
SC/UPC Multimode Connector
LC/UPC Multimode Connector
3.00mm Outer Diameter
Orange Color PVC or LSZH Material
Certifications: ISO, CE, RoHS, UL

Technical Specifications

Parameter	Specification
Connector Type	SC/UPC Multimode
Connector Type	LC/UPC Multimode
Zipcord Cable	50/125 μm Multimode
Cable Jacket (OD: 3.0mm)	Orange Color, PVC Material
Insertion Loss	< 0.5 dB
Fiber Extension	-0.05μm < H < + 0.05μm
Ferrule End-face Radius	10 < R < 30mm
Apex Offset	< 50 μm
Increase in insertion loss after 500 mating	0.2 dB Max
Operation Temperature	-20℃ to +70℃
Storage Temperature	-20℃ to +80℃
Humidity (non-condensing)	95% RH

Quality Assurance & Competitive Advantages

Comprehensive Quality Control: From raw materials to final products, we perform intense quality checks including incoming material inspection, manufacturing process control, worker training, and final product inspection
Advanced R&D: Our research and development efforts focus on reinforcing element technologies to support customer growth
24/7 Customer Support: Skilled at effective communication to provide prompt service and quick response to inquiries
Extensive Product Range: Over 1000 kinds of cables, connectors, and assemblies available
Reliable Delivery: Commitment to on-time delivery for all customer requirements
