SC to SC Duplex Fiber Optic Patch Cord 9/125 μm Singlemode with PVC or LSZH Jacket for Terminal Box

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	SC to SC Duplex Singlemode

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 working days
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	YOFC, G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Filling:	Aramid Yard	Jacket:	PVC Or LSZH
Color:	Yellow	Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	duplex patch cord , fiber optical patch cord

Product Description

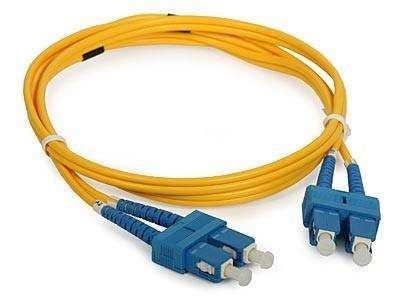

SC to SC Duplex Fiber Optic Patch Cord 9/125 μm Singlemode for Terminal Box

Fiber Optic Patch Cord with SC, LC, FC, ST/APC UPC connectors in 0.9/2.0/3.0mm diameters, available in Single Mode and Multimode configurations with PVC or LSZH jacket materials.

Product Overview

SC to SC Duplex Fiber Optic Patch Cord 9/125 μm Singlemode designed specifically for terminal box applications.

Key Specifications

Fiber Optic Patch Cord/Jumper
SC to SC Duplex Singlemode Configuration

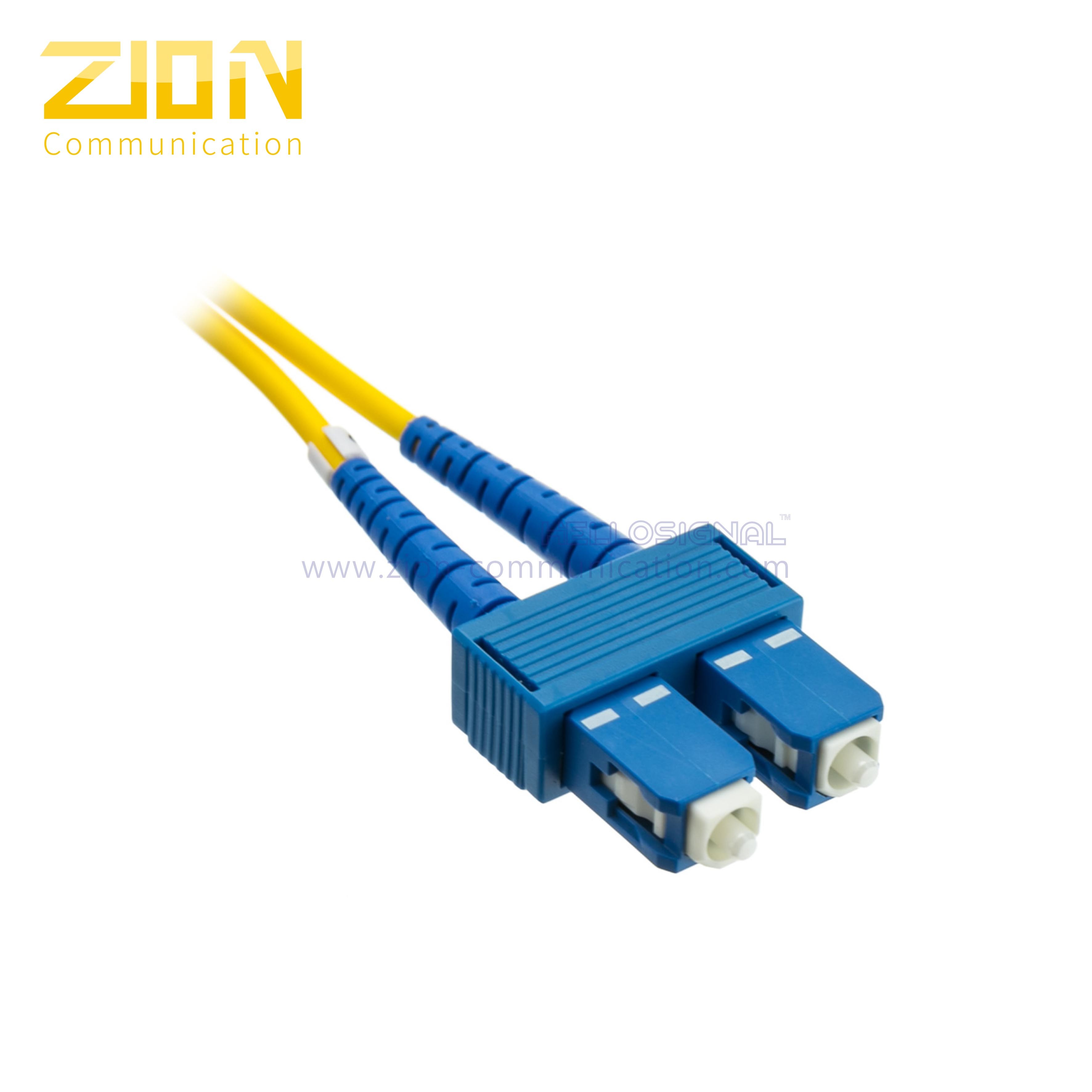

SC/UPC Singlemode Connectors
9/125 μm Singlemode Fiber
3.00mm Outer Diameter
Yellow Color Coding
PVC or LSZH Jacket Material
Certifications: ISO, CE, RoHS, UL

Product Description

A fiber optic patch cord is a fiber optic cable capped at both ends with connectors that allow rapid and convenient connection to CATV systems, optical switches, and other telecommunication equipment. The thick protective layer is specifically designed to connect optical transmitters, receivers, and terminal boxes.

Performance Characteristics

Low insertion loss
High return loss
Excellent repeatability
Superior interchange capability
Outstanding environmental adaptability

Technical Specifications

Parameter	Specification
Connector Type	SC/UPC Singlemode
Zipcord Cable	9/125 μm Singlemode
Cable Jacket (OD: 3.0mm)	Yellow Color, PVC material
Insertion Loss	< 0.5 dB
Fiber Extension	-0.05um < H < + 0.05um
Ferrule End-face Radius	10 < R < 30mm
Apex Offset	< 50 um
Increase in insertion loss after 500 mating	0.2 dB Max
Operation Temperature	-20℃ to +70 ℃
Storage Temperature	-20℃ to +80 ℃
Humidity (non-condensing)	95% RH

Competitive Advantages

Comprehensive Quality Control: From raw materials to final products, we perform intensive quality checks including incoming material inspection, manufacturing process control, worker training, work instructions, 5S system implementation, machine maintenance procedures, and final inspection.
Advanced R&D: Our research and development efforts focus on reinforcing and developing element technologies to support future growth for customers.
24/7 Customer Support: Skilled at effective communication to interact with customers and provide prompt service.
Rapid Response: Quick and professional handling of all inquiries.
Extensive Product Range: More than 1000 kinds of cables, connectors, and assemblies available.
Timely Delivery: Commitment to on-time delivery schedules.
