LC to LC Singlemode 9/125 μm Duplex Fiber Optic Patch Cord with Riser PVC Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC to LC Duplex Singlemode

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 working days
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	YOFC, D.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Filling:	Aramid Yarn	Jacket:	PVC Or LSZH
Color:	Yellow	Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	duplex patch cord , fiber optical patch cord

Product Description

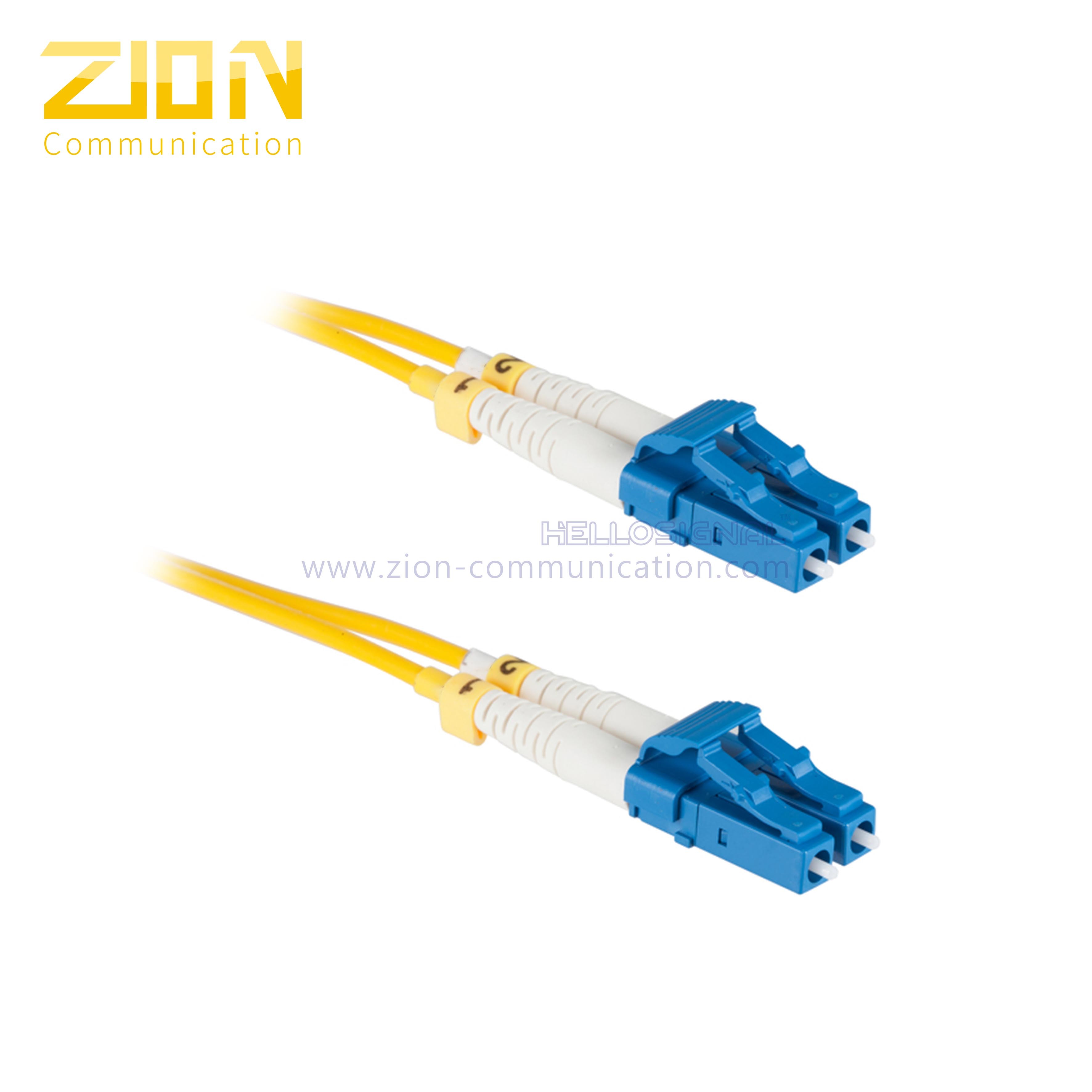

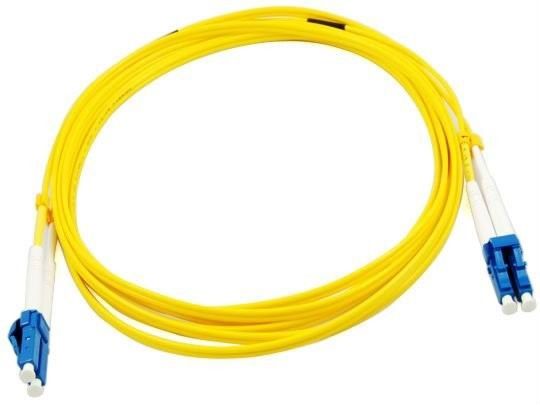

LC to LC Singlemode 9/125 μm Duplex Fiber Optic Patch Cord

This fiber optic patch cord features LC/UPC connectors on both ends with 9/125 μm singlemode fiber in a duplex configuration. The cable is encased in a yellow Riser PVC jacket with 3.0mm outer diameter, making it ideal for telecommunications equipment connections.

Product Overview

Fiber optic patch cords and pigtails available in various configurations including SC, LC, FC, ST connectors with APC/UPC polishing, 0.9/2.0/3.0mm diameters, and Single Mode/Multimode options with PVC/LSZH jacket materials.

Quick Specifications

Fiber Optic Patch Cord/Jumper
LC to LC Duplex Singlemode
LC/UPC Singlemode Connectors
9/125 μm Singlemode Fiber
3.00mm Outer Diameter
Yellow Color PVC or LSZH Material
Certifications: ISO, CE, RoHS, UL

Product Description

A fiber optic patch cord is a fiber optic cable terminated with connectors at both ends, designed for rapid connection to CATV systems, optical switches, and other telecommunication equipment. The thick protective layer ensures reliable connections between optical transmitters, receivers, and terminal boxes.

Key Characteristics

Low insertion loss
High return loss
Excellent repeatability
Superior interchange performance
Outstanding environmental adaptability

Technical Specifications

Parameter	Specification
Connector Type	LC/UPC Singlemode
Zipcord Cable	9/125 μm Singlemode
Cable Jacket (OD: 3.0mm)	Yellow Color, PVC material
Insertion Loss	< 0.5 dB
Fiber Extension	-0.05μm < H < + 0.05μm
Ferrule End-face Radius	10 < R < 30mm
Apex Offset	< 50 μm
Increase in insertion loss after 500 mating	0.2 dB Max
Operation Temperature	-20℃ to +70 ℃
Storage Temperature	-20℃ to +80 ℃
Humidity (non-condensing)	95% RH

Competitive Advantages

Comprehensive Quality Control: Rigorous checks from raw materials to final products including incoming material inspection, manufacturing process control, worker training, 5S system implementation, and machine maintenance procedures
Advanced R&D: Continuous development of element technologies to support customer growth and success
24/7 Customer Support: Prompt service and effective communication to address urgent customer needs
Professional Response: Quick and knowledgeable responses to all inquiries
Extensive Product Range: Over 1000 types of cables, connectors, and assemblies available
Reliable Delivery: On-time shipment of all orders
