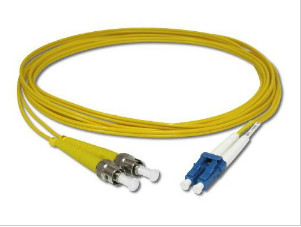

3.0mm PVC Jacket ST to LC Duplex Singlemode G.652D Fiber Optic Patch Cord in Yellow

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	ST to LC Duplex Singlemode

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PCS/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 working days
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	YOFC, G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Filling:	Aramid Yarn	Jacket:	PVC Or LSZH
Color:	Yellow	Package:	1 PCS/Plastic Bag, PCS/Carton
Highlight:	duplex patch cord , fiber optical patch cord

Product Description

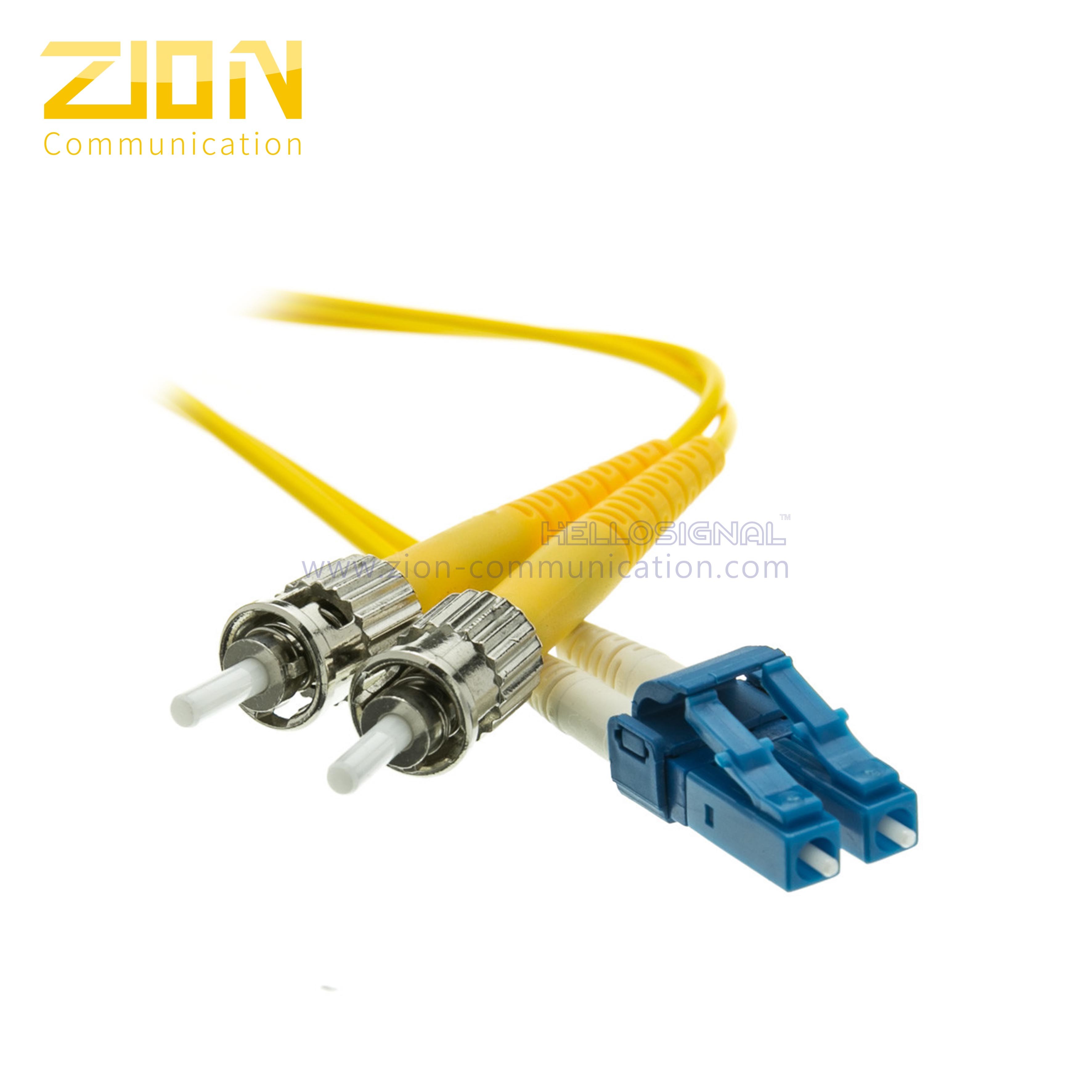

3.0mm PVC Jacket ST to LC Duplex Singlemode Fiber Optic Patch Cord

This high-performance yellow fiber optic patch cord features ST to LC duplex connectors with singlemode compatibility, designed for reliable telecommunications applications.

Product Overview

Fiber Optic Patch Cord/Jumper
ST to LC Duplex Singlemode Configuration
ST/UPC and LC/UPC Singlemode Connectors
9/125 um Singlemode Fiber
3.00mm Outer Diameter
Yellow PVC or LSZH Jacket Material
Certified: ISO, CE, RoHS, UL

Product Description

A fiber optic patch cord is a fiber optic cable terminated at both ends with connectors that enable quick and convenient connection to CATV systems, optical switches, and other telecommunication equipment. The robust protective jacket ensures reliable performance when connecting optical transmitters, receivers, and terminal boxes.

Key Performance Characteristics

Low insertion loss
High return loss
Excellent repeatability
Superior interchangeability
Outstanding environmental adaptability

Technical Specifications

Parameter	Specification
Connector Type (End 1)	ST/UPC Singlemode
Connector Type (End 2)	LC/UPC Singlemode
Cable Type	9/125 um Singlemode Zipcord
Cable Jacket	3.0mm OD, Yellow PVC Material
Insertion Loss	< 0.5 dB
Fiber Extension	-0.05um < H < + 0.05um
Ferrule End-face Radius	10 < R < 30mm
Apex Offset	< 50 um
Insertion Loss Increase (500 matings)	0.2 dB Max
Operation Temperature	-20℃ to +70 ℃
Storage Temperature	-20℃ to +80 ℃
Humidity (non-condensing)	95% RH

Quality Assurance & Competitive Advantages

Comprehensive quality control from raw materials to finished products:
- Incoming material inspection by QC team
- Strict manufacturing process control
- Regular employee training programs
- Detailed work instructions at each station
- 5S system implementation
- Regular machine maintenance procedures
- Final product inspection according to specifications
Advanced R&D focused on developing core technologies to support customer growth
24/7 customer support for urgent requirements
Rapid and professional response to inquiries
Extensive product portfolio with over 1000 cable, connector, and assembly options
Guaranteed on-time delivery
