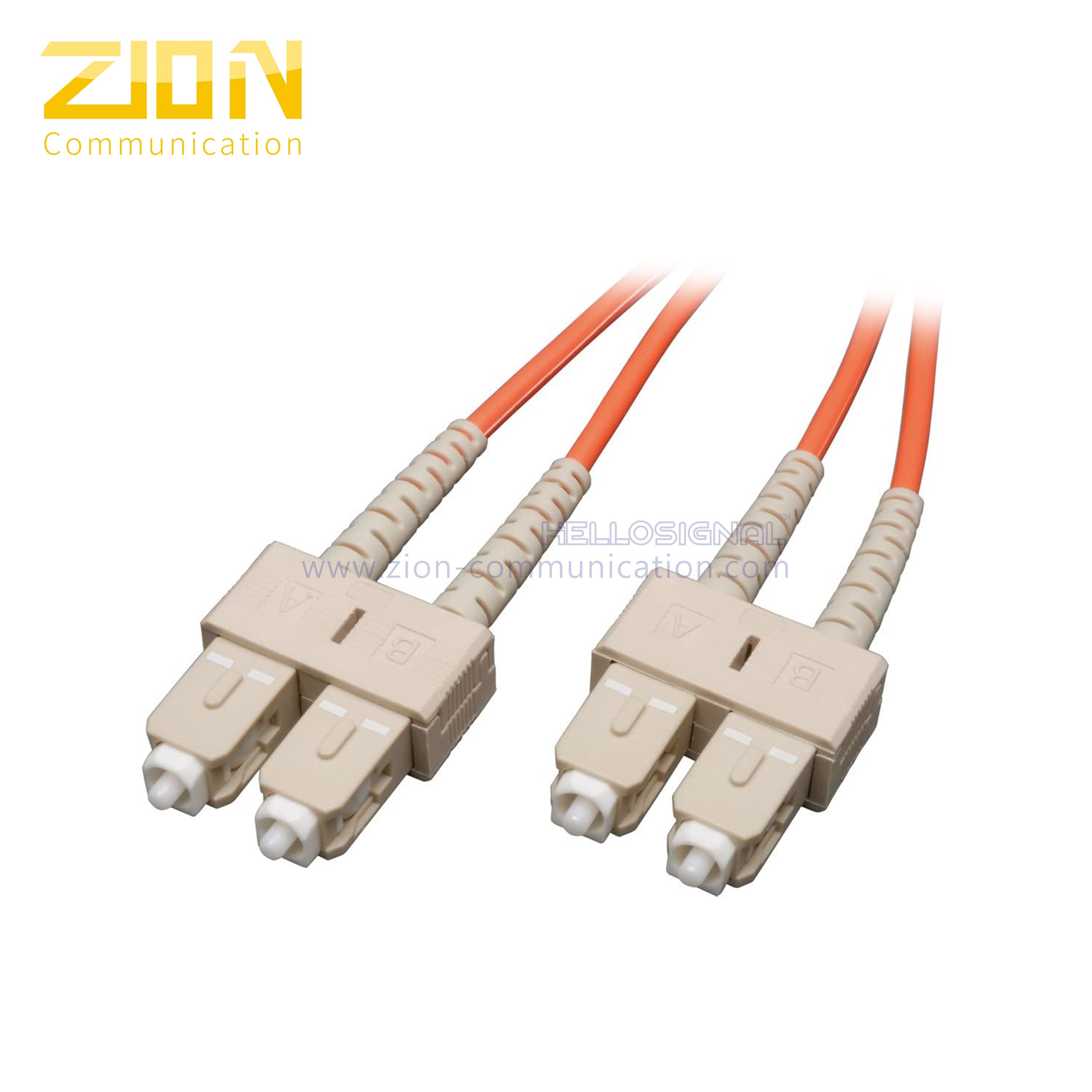

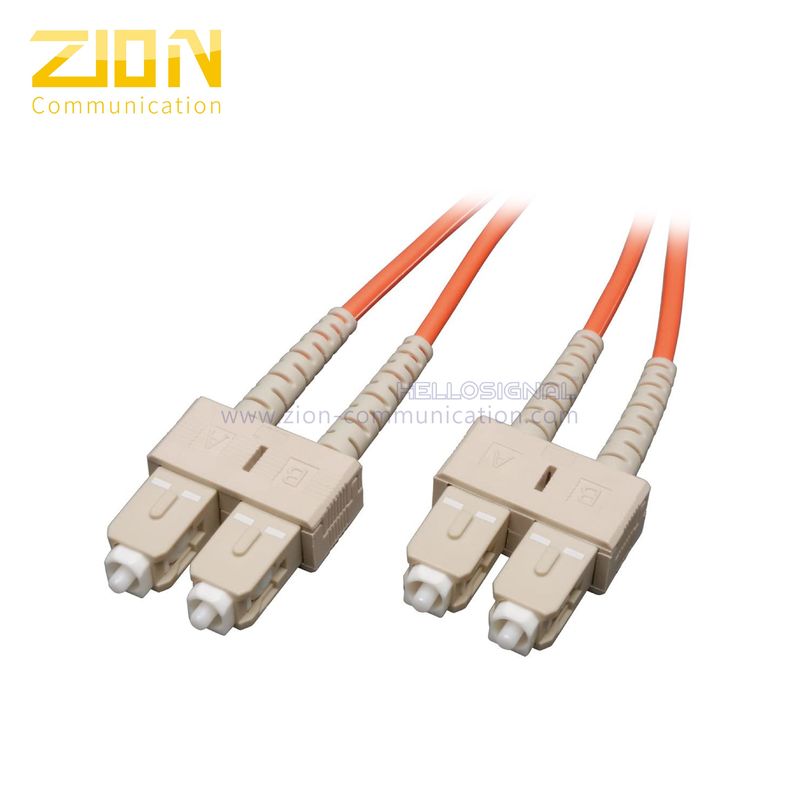

SC to SC Duplex Multimode Fiber Optic Patch Cord with 62.5/125 um Core and PVC Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	SC to SC Duplex Multimode

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 working days
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	YOFC, G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Filling:	Aramid Yarn	Jacket:	PVC Or LSZH
Color:	Orange	Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	multimode fiber optic cable , fiber optical patch cord

Product Description

Device Termination Activing Fiber Optic Patch Cord SC to SC Duplex Multimode

High-performance fiber optic patch cord designed for reliable connectivity in telecommunications and CATV applications.

Product Overview

A fiber optic patch cord is a fiber optic cable capped at both ends with connectors that allow rapid and convenient connection to CATV, optical switches, and other telecommunication equipment. Its robust protective layer ensures reliable connections between optical transmitters, receivers, and terminal boxes.

Key Features

Low insertion loss
High return loss
Excellent repeatability
Superior interchangeability
Outstanding environmental adaptability

Quick Specifications

Fiber Patch Cord / Fiber Optic Jumper
SC to SC Duplex configuration
SC/UPC Multimode connectors
62.5/125 um Multimode fiber
3.00mm outer diameter
Orange PVC jacket material
Certifications: ISO, CE, RoHS, UL

Technical Specifications

Connector Type	SC/UPC Multimode
Zipcord Cable	62.5/125 um Multimode
Cable Jacket	Orange Color, PVC material (OD: 3.0mm)
Insertion Loss	< 0.5 dB
Fiber Extension	-0.05um < H < + 0.05um
Ferrule End-face Radius	10 < R < 30mm
Apex Offset	< 50 um
Increase in insertion loss after 500 mating	0.2 dB Max
Operation Temperature	-20℃ to +70 ℃
Storage Temperature	-20℃ to +80 ℃
Humidity (non-condensing)	95% RH

Quality Assurance

Comprehensive incoming material inspection
Strict manufacturing process control
Regular worker training programs
Detailed work instructions at each station
5S system implementation
Machine maintenance procedures
Multi-stage quality control and final inspection
