Duplex Fiber Jumper ST to LC Multimode Fiber Optic Patch Cord with 62.5/125 um and PVC or LSZH Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	KINGTONE OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	ST to LC Duplex Multimode

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 working days
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	YOFC, G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Filling:	Aramid Yarn	Jacket:	PVC Or LSZH
Color:	Orange	Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	multimode fiber optic cable , fiber optical patch cord

Product Description

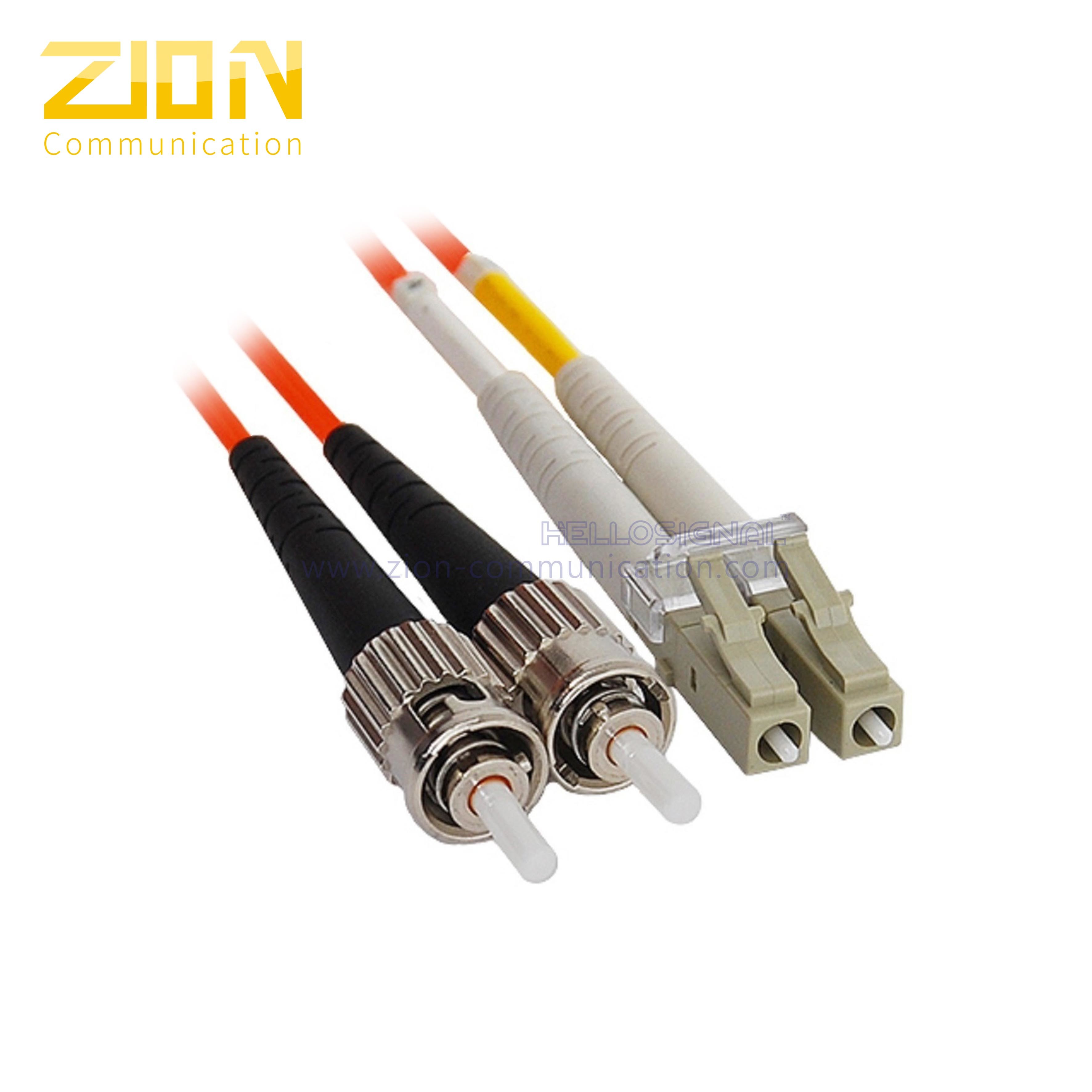

Duplex Fiber Jumper ST to LC Multimode Fiber Optic Patch Cord

Product Overview

High-performance duplex fiber optic patch cord featuring ST to LC connectors in multimode configuration with riser PVC jacket.

Key Specifications

Fiber Optic Jumper & Patch Cord
ST to LC Duplex Configuration
ST/UPC and LC/UPC Multimode Connectors
62.5/125 μm Multimode Fiber
3.00mm Outer Diameter
Orange Color PVC or LSZH Material
Certifications: ISO, CE, RoHS, UL

Product Description

A fiber optic patch cord is a fiber optic cable capped at both ends with connectors that allow rapid and convenient connection to CATV systems, optical switches, and other telecommunication equipment. Its robust protective layer ensures reliable connectivity between optical transmitters, receivers, and terminal boxes.

Performance Characteristics

Low insertion loss
High return loss
Excellent repeatability
Superior interchangeability
Outstanding environmental adaptability

Technical Specifications

Connector Type	ST/UPC Multimode
Connector Type	LC/UPC Multimode
Zipcord Cable	62.5/125 μm Multimode
Cable Jacket (OD: 3.0mm)	Orange Color, PVC Material
Insertion Loss	< 0.5 dB
Fiber Extension	-0.05μm < H < +0.05μm
Ferrule End-face Radius	10 < R < 30mm
Apex Offset	< 50 μm
Increase in Insertion Loss after 500 Mating	0.2 dB Max
Operation Temperature	-20℃ to +70℃
Storage Temperature	-20℃ to +80℃
Humidity (non-condensing)	95% RH

Competitive Advantages

Comprehensive quality control from raw materials to final products
Advanced R&D focused on customer growth and success
24/7 customer support and effective communication
Rapid and professional response to inquiries
Over 1000 cable, connector, and assembly variants
Guaranteed on-time delivery
