Duplex ST to SC Multimode Fiber Optic Patch Cord with 62.5/125 um Core and PVC or LSZH Jacket for Telecommunication Networks

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	ST to SC Duplex Multimode

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 working days
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	YOFC, G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Filling:	Aramid Yarn	Jacket:	PVC Or LSZH
Color:	Orange	Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	duplex patch cord , fiber optical patch cord

Product Description

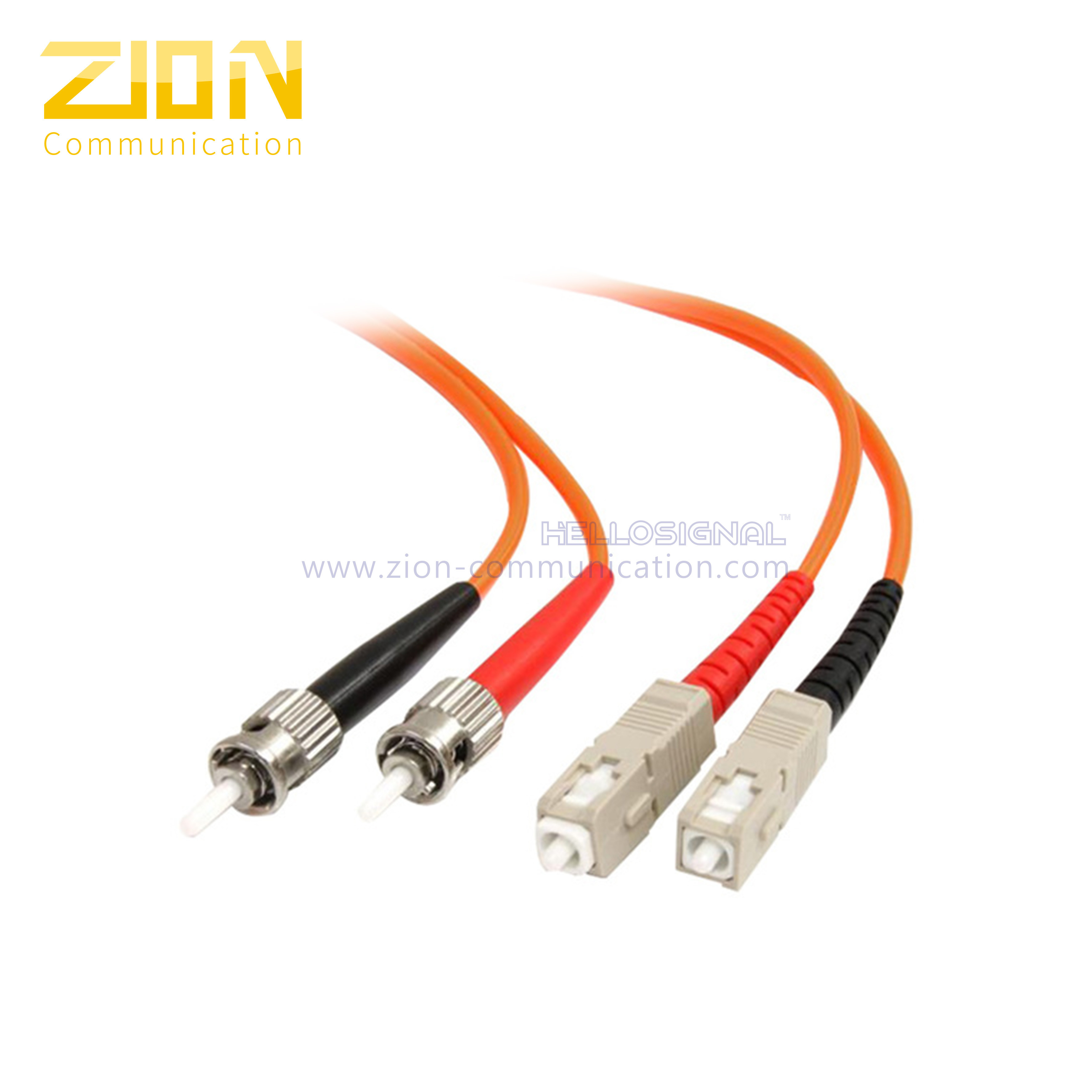

Duplex ST to SC Multimode Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

Inquire Now Duplex ST to SC Multimode Fiber Optic Patch Cord with 62.5/125 um Core and PVC or LSZH Jacket for Telecommunication Networks 0

Product Overview

A fiber optic patch cord is a fiber optic cable capped at both ends with connectors that allow it to be rapidly and conveniently connected to CATV, optical switches, or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and terminal box.

Key Features

Low insertion loss
High return loss
Good repeatability
Good interchange
Excellent environmental adaptability

Quick Specifications

Fiber Optic Patch Cord
Fiber Optic Jumper
ST to SC Duplex
ST/UPC Multimode
SC/UPC Multimode
62.5/125 um Multimode
3.00mm O.D.
Orange Color
PVC or LSZH material
ISO, CE, RoHS, UL certified

Technical Specifications

Parameter	Specification
Connector Type	ST/UPC Multimode
Connector Type	SC/UPC Multimode
Zipcord Cable	62.5/125 um Multimode
Cable Jacket (OD: 3.0mm)	Orange Color, PVC material
Insertion Loss	< 0.5 dB
Fiber Extension	-0.05um < H < + 0.05um
Ferrule End-face Radius	10 < R < 30mm
Apex Offset	< 50 um
Increase in insertion loss after 500 mating	0.2 dB Max
Operation Temperature	-20℃ to +70 ℃
Storage Temperature	-20℃ to +80 ℃
Humidity (non-condensing)	95% RH

Quality Assurance

Incoming material inspected by QC
Manufacturing Process Control
Daily/weekly/monthly worker training
Work instructions manual at each station
5S system implementation
Machine maintenance procedures
Quality Control and Final Inspection

Company Advantages

R&D focused on future growth technologies
24/7 customer support availability
Professional and prompt inquiry response
Over 1000 cable, connector, and assembly products
On-time delivery guarantee
