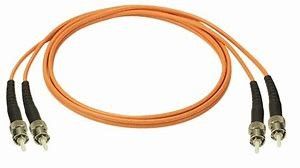

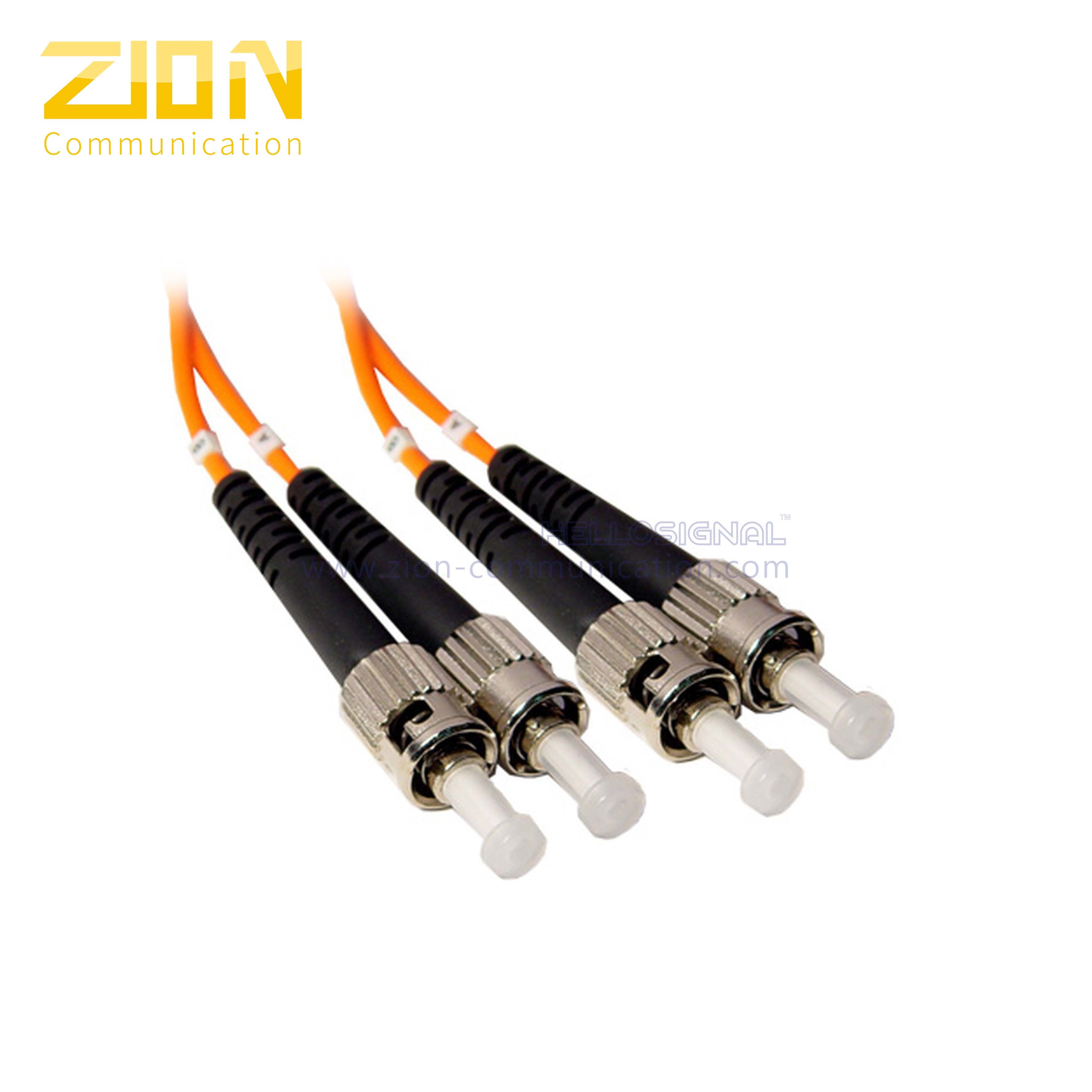

ST to ST Duplex Fiber Optic Patch Cord 62.5 / 125 Multimode with 3.0mm PVC Jacket

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: ST to ST Duplex Multimode
Minimum Order Quantity: 1,000 PCS
Packaging Details: 1 PC/Plastic Bag, PCS/Carton
Delivery Time: Normally 10 workingdays
Payment Terms: T/T, L/C
Supply Ability: 30,000 PCS / Month
Detail Information
Fiber Unit: YOFC, G.652D Or G.657A Tight Buffer Fiber: Tight Buffer Fiber
Filling: Aramid Yarn Jacket: PVC Or LSZH
Color: Orange Package: 1 PC/Plastic Bag, PCS/Carton
Highlight:

multimode fiber optic cable

,

fiber optical patch cord


Product Description



SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.





FIBER OPTIC PATCH CORD




ST to ST Duplex Fiber Optic Patch Cord 62.5 / 125 Multimode with 3.0mm PVC Jacket





Quick Details

  • Fiber Optic Patch Cord
  • Fiber Optic Jumper
  • ST to ST Duplex
  • 62.5 / 125 um Multimode
  • 3.0mm O.D.
  • Orange Color
  • PVC or LSZH material
  • PE Bag / Carton
  • ISO, CE, RoHS, UL



Description



A fiber optic patch cord is a fiber optic cable capped at either and with connectors that

allow it to be rapidly and conveniently connected to CATV , an optical switch or other

telecommunication equipment. Its thick layer of protection is used to connect the

optical transmitter , receiver and the terminal box.



Fiber optic patch cords are characterized by:

Low insertion loss

High return loss

Good repeatability

Good interchange

Excellent environmental adaptability







Specification
Connector Type ST/UPC Multimode
Connector Type

ST/UPC Multimode

Zipcord Cable 62.5 / 125 um Multimode
Cable Jacket ( OD: 3.0mm ) Orange Color , PVC Material
Shrink Tube

Perfomance
Insertion Loss < 0.5 dB
Fiber Extention -0.05um < H < + 0.05um
Ferrule End - face Radius 10 < R < 30mm
Apex Offset < 50 um
Increase in insertion loss after 500 mating 0.2 dB Max
Operation Temperature -20℃ to +70 ℃
Storage Temperature -20℃ to +80 ℃
Humidity (non- condensing) 95% RH





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and Zion communication.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery
