High-Precision Fiber Optic Cleaver for Single-Mode Fiber with Long Blade Life for FTTH & Splicing

Basic Information

Place of Origin:	NINGBO CHINA
Brand Name:	OEM
Model Number:	Fiber Optic Tool Kits

Minimum Order Quantity:	10 boxes
Packaging Details:	1pcs/box
Delivery Time:	5-25 Days

Get Best Price Contact Now

Detail Information

Highlight:

High-Precision Fiber Optic Cleaver

Single-Mode Fiber Cleaver

Long Blade Life FTTH Cleaver

Product Description

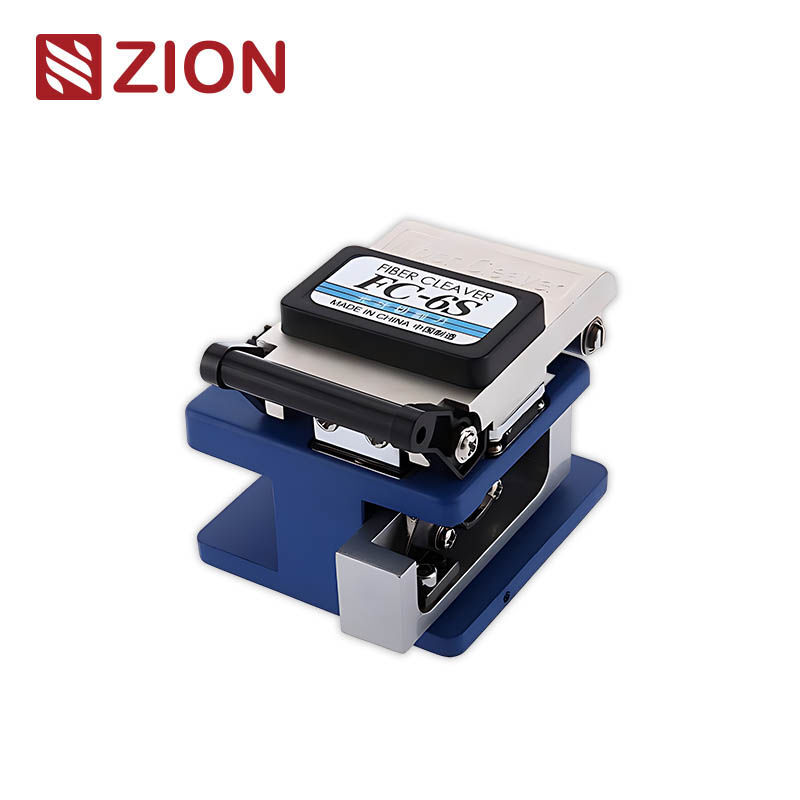

Fiber Optic Cleaver for FTTH & Splicing

High-Precision Single-Mode Fiber Cleaving

This fiber optic cleaver delivers consistent, high-quality cleaves to ensure minimal splice loss and reliable optical performance. The compact, durable design and extended blade lifespan make it ideal for both field installations and workshop applications.

Technical Specifications

Parameter	Specification
Applicable Fiber Type	Single-mode
Fiber Diameter	125 µm
Coating Diameter	250 µm - 900 µm
Typical Cleave Angle	≤ 1°
Cleave Length (250 µm Fiber)	9 - 16 mm
Cleave Length (900 µm Fiber)	10 - 16 mm
Blade Lifetime	Up to 36,000 cleaves
Dimensions	63 × 76 × 63 mm
Weight	430 g

Key Features

High-precision cleaving for optimal optical performance
Extended blade life up to 36,000 cleaves
Compact and portable design for field use
Suitable for various coating diameters (250-900 µm)
Consistent cleave angles under 1 degree
