Home > Products> Optical Fiber System> ZCOSC09FW Optitap SC09 SC Fiber Optic Fast Connector Field Installable Waterproof IP68 with Low Insertion Loss

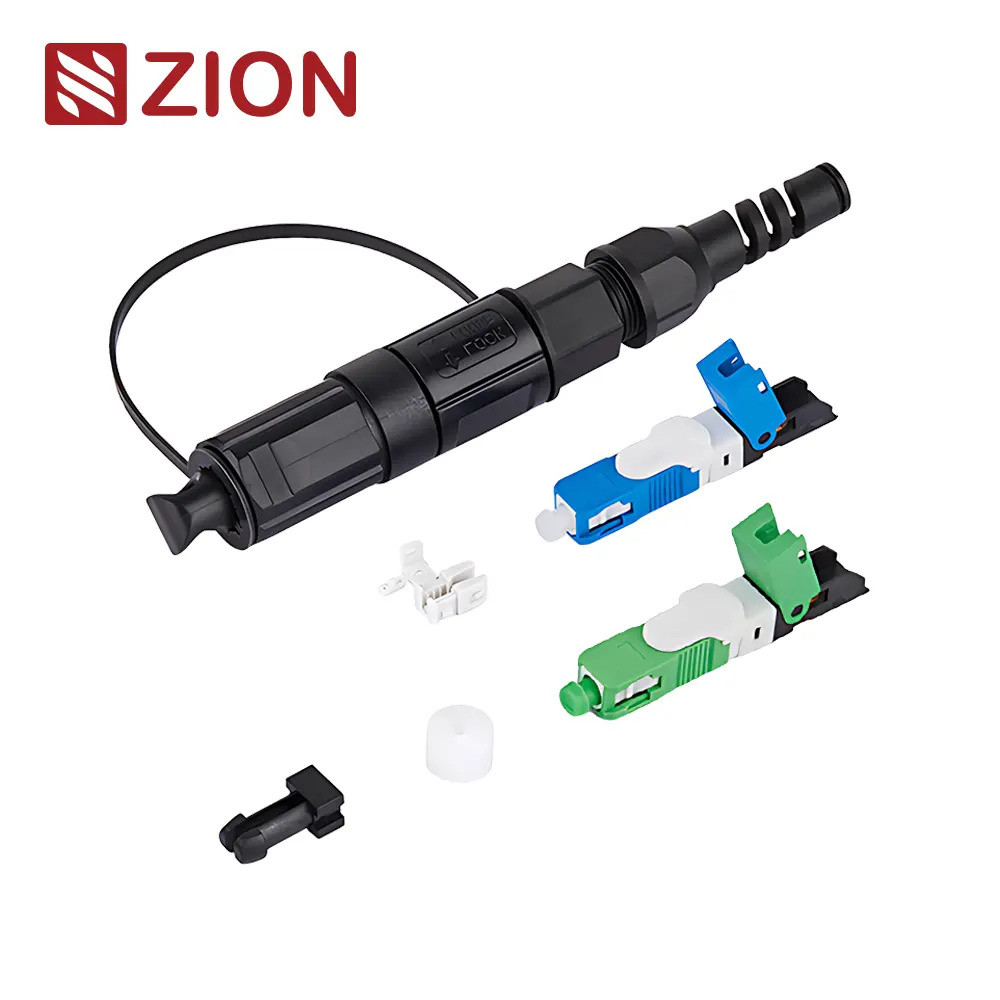

ZCOSC09FW Optitap SC09 SC Fiber Optic Fast Connector Field Installable Waterproof IP68 with Low Insertion Loss

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Highlight:

SC fiber optic fast connector

Field fiber optic fast connector

Waterproof fast connector

Product Description

ZCOSC09FW Optitap SC09 SC Fiber Optic Fast Connector Field Installable Waterproof

Zion Code and Description

Zion Code	Zion Description
7234047	ZCOSC09FW Optitap SC09 SC Field Installable Fast Waterproof Connector

Product Features

Cost effective solution for in-house termination
Low insertion loss and added loss
Height of attenuation
IP68 water, dust proof and corrosion resistant
Mechanical performance: IEC 61754-4 standard
ROHS and REACH materials compliant

Product Description

Mini IP SC Series Field Installable Fast Waterproof Connector is a new design outdoor waterproof fiber optical connector compatible with Huawei Mini SC connector/adapter. It's mainly used for FTTH outdoor installation. It's small and easy to be installed with IP68 grade. Mini SC fast connector is an excellent solution with Huawei Device and does not require termination in laboratory. It can be field assembled very easily to save time and shorten project duration.

SC FAST Field Fiber Optic Connector

Technical Parameters

Item	ZCOSC09FW
Length	52mm
Mode	Single mode or Multi mode
Insertion Loss (dB)	AVG≤0.3dB MAX≤0.5dB
Return Loss (dB)	UPC≥50dB / APC≥55dB
Operating Temperature (℃)	-20~+75℃
Storage Temperature (℃)	-40~+85℃
Mating Times	500 Times
Cable Diameter	DROP CABLE : 2.01.6mm/ 2.03.0mm/2.0*5.0mm

Applications

FTTH & Outdoor Fiber Terminal End
Harsh Environment
FTTA BBU RRU
Data Video Transmission
Optical Fiber Access Of Mobile Base Station

OEM/ODM Service

ZION Communication has rich experiences in producing OEM/ODM cases because of our professional R&D team.

Customized Logo
Label/PE bag/Carton design
