SC Fast Connector Mini Waterproof IP68 Field Installable with Low Insertion Loss for FTTH Outdoor Applications

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Highlight:

SC fast connect fiber connectors

Mini fast connect fiber connectors

Waterproof fiber optic fast connector

Product Description

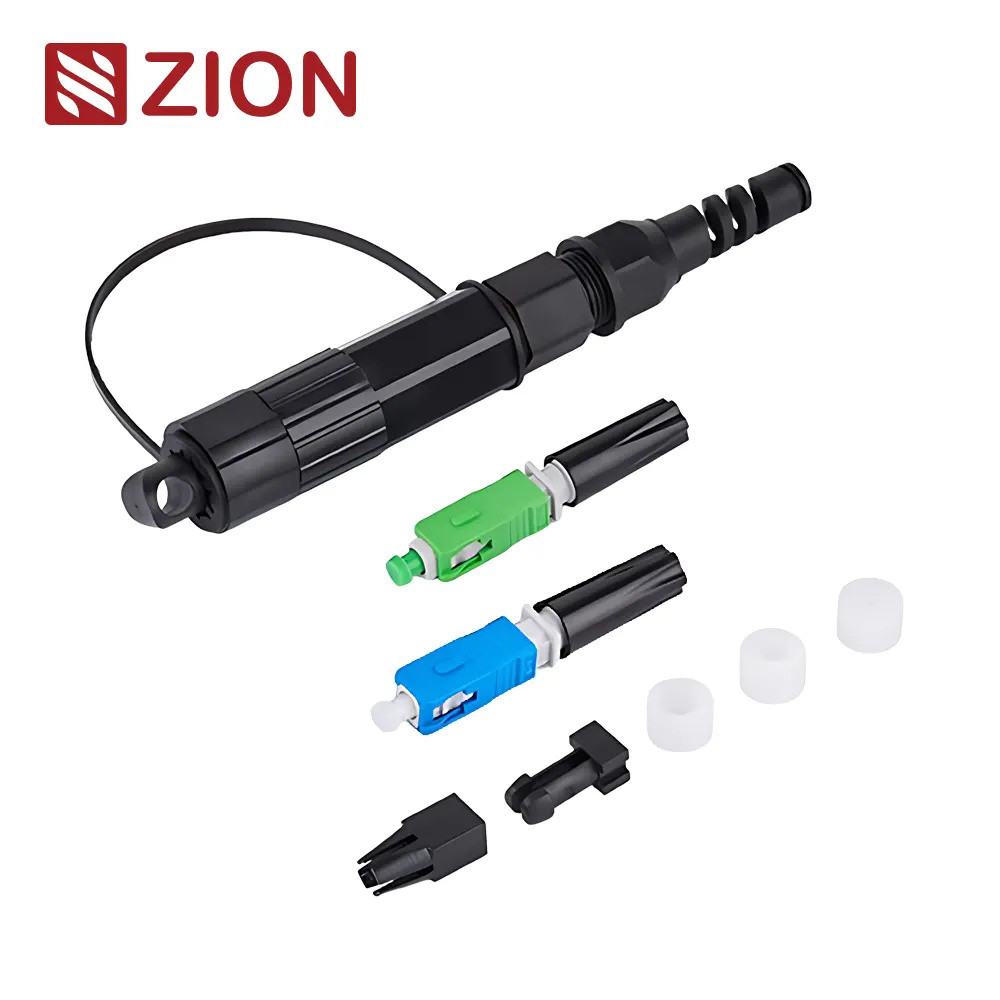

ZCSC21MW SC21 SC Fast Connect Fiber Connectors Mini Waterproof

Product Identification

Zion Code	Zion Description
7234046	ZCSC21MW SC21 SC Fast Connector for Mini Waterproof Connector

Key Features

● Cost effective solution for in-house termination

● Low insertion loss and added loss

● Height of attenuation performance

● IP68 water, dust proof and corrosion resistant

● Mechanical performance: IEC 61754-4 standard

● ROHS and REACH materials compliant

Product Overview

Mini IP SC Series Field Installable Fast Waterproof Connector is a new design outdoor waterproof fiber optical connector compatible with Huawei Mini SC connector/adapter. It's primarily used for FTTH outdoor installation applications. This compact connector features IP68 grade protection and can be easily field assembled without requiring laboratory termination, significantly reducing project timelines.

SC FAST Field Fiber Optic Connector Specifications

Technical Parameters

Parameter	ZCSC21MW
Working wavelength	1310 nm, 1490 nm, 1550 nm
Mode	Single mode or Multi mode
Insertion Loss (dB)	AVG≤0.3dB MAX≤0.5dB
Return Loss (dB)	UPC≥50dB / APC≥55dB
Operating Temperature (℃)	-20~+75℃
Storage Temperature (℃)	-40~+85℃
Mating Times	500 Times
Cable Diameter	Drop cable: 21.6mm/23.0mm/2.0*5.0mm Round cable: 5.0mm/3.0mm/2.0mm

Applications

FTTH & Outdoor Fiber Terminal End
Harsh Environment Installations
FTTA BBU RRU
Data Video Transmission
Optical Fiber Access of Mobile Base Station

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom manufacturing solutions.

• Customized Logo Implementation

• Custom Label/PE bag/Carton Design
