ZCSC21-U50 SC UPC Fast Assembly Fiber Optic Quick Connector with Embedded Structure and Reusable Design

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Highlight:

SC UPC Fast Assembly Connector

SC UPC fiber optic quick connector

Embedded fast connect fiber connectors

Product Description

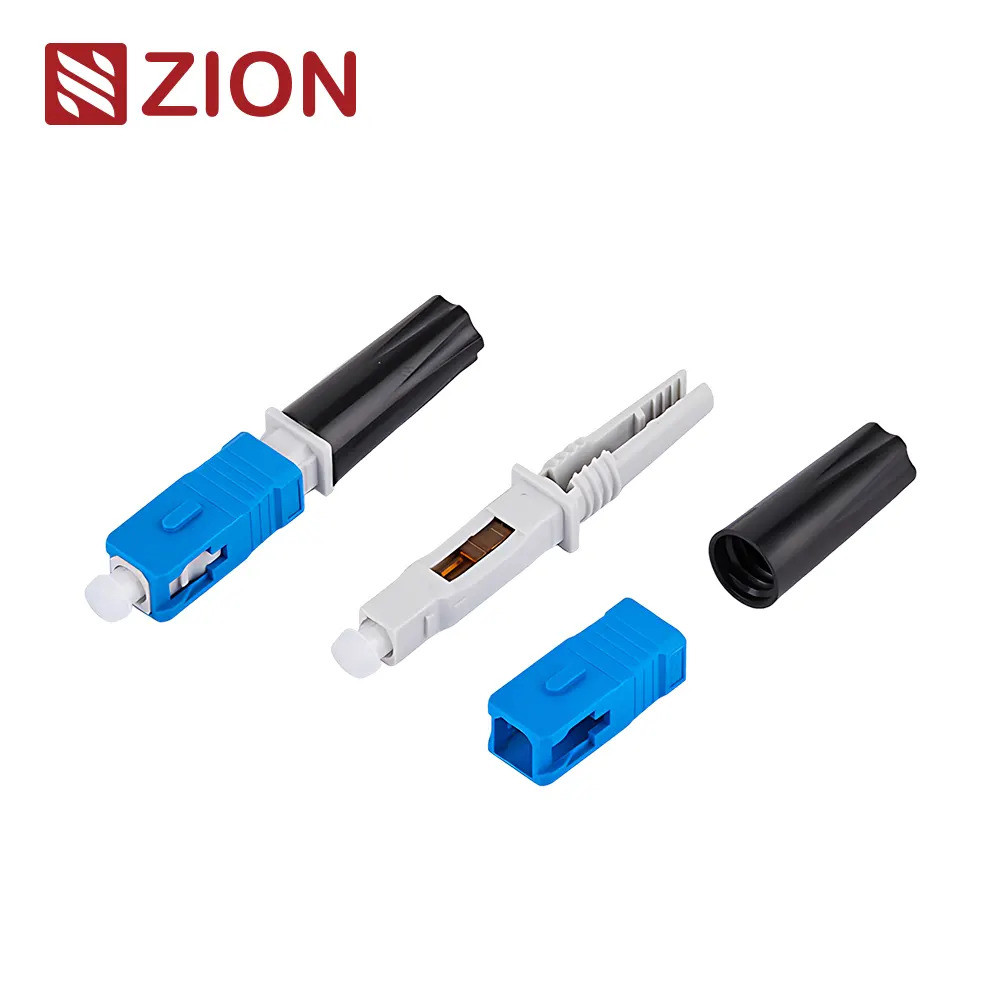

ZCSC21-U50 SC UPC Fast Assembly Fiber Optic Quick Connector Embedded

Product Identification

Zion Code	Zion Description
7234045	ZCSC21-U50 SC UPC Fast Assembly Connector

Key Features

High cost-effective fiber optic fast connector ensuring installation quality and efficiency
Unique crimping design with injected glue - no grinding or consumables required during installation
Embedded fiber optic structure for superior performance
High installation quality, success rate, and installation speed
Reusable design with easy operation
Convenient and portable for field use

Product Overview

ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optic fibers or optic cables to form a continuous optic path. It has been widely used in optic fiber transmission lines, optic fiber distribution frames, and optic fiber testing instruments and meters. These connectors feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range, making them your optimal choice for fiber optic connectivity.

SC FAST Field Fiber Optic Connector Specifications

Technical Parameters

Parameter	ZCSC21-U50
Length	50mm
Ferrules	SC-SM/UPC
Insertion Loss (dB)	AVG≤0.3dB MAX≤0.5dB
Return Loss (dB)	UPC≥50dB / APC≥55dB
Operating Temperature (℃)	-20~+75℃
Storage Temperature (℃)	-40~+85℃
Mating Times	500 Times
Cable Diameter	Drop cable: 2.03.0mm/2.05.0mm Round cable: 5.0mm/3.0mm/2.0mm/0.9mm (0.9 with tail)

Applications

FTTH & Outdoor Fiber Terminal End
Harsh Environment Installations
FTTA BBU RRU
Data Video Transmission
Optical Fiber Access of Mobile Base Station

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom manufacturing.

Customized Logo Implementation
Label/PE Bag/Carton Design Services
