Home > Products> Optical Fiber System> ZCSC21-A50 SC APC Fiber Quick Connector for FTTH with Fast Assembly Reusable Design and High Installation Success Rate

ZCSC21-A50 SC APC Fiber Quick Connector for FTTH with Fast Assembly Reusable Design and High Installation Success Rate

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Highlight:

SC APC fiber quick connector

Ftth fiber quick connector

Ftth fast connect fiber connectors

Product Description

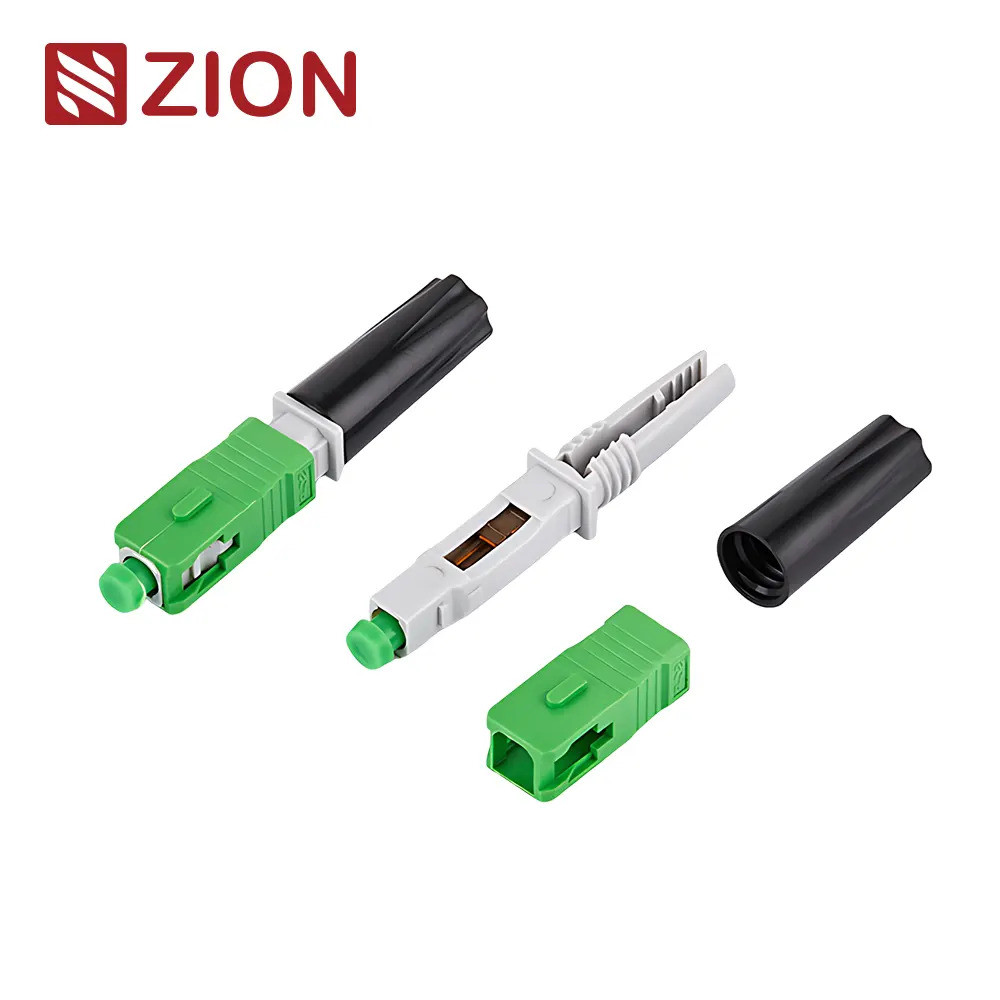

ZCSC21-A50 SC APC Fiber Quick Connector For FTTH

Product Identification

Zion Code	Zion Description
7234044	ZCSC21-A50 SC APC Fast Assembly Connector

Key Features

High cost-effective fiber optic fast connector ensuring installation quality and efficiency
Original physical design with injected glue and grinding - no consumables required during installation
Embedded fiber optic structure for enhanced performance
High installation quality, success rate, and installation speed
Reusable design with easy operation
Convenient and portable for field applications

Product Overview

ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optic fibers or optic cables to form a continuous optic path. It has been widely used in optic fiber transmission lines, optic fiber distribution frames, and optic fiber testing instruments and meters. These connectors feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range, making them the optimal choice for your fiber optic connectivity needs.

SC FAST Field Fiber Optic Connector Specifications

Technical Parameters

Parameter	ZCSC21-A50
Length	50mm
Ferrules	SC-SM/APC
Insertion Loss (dB)	AVG≤0.3dB MAX≤0.5dB
Return Loss (dB)	UPC≥50dB / APC≥55dB
Operating Temperature (℃)	-20~+75℃
Storage Temperature (℃)	-40~+85℃
Mating Times	500 Times
Cable Diameter	Drop cable: 2.03.0mm/2.05.0mm Round cable: 5.0mm/3.0mm/2.0mm/0.9mm (0.9 with tail)

Applications

FTTH & Outdoor Fiber Terminal End
Harsh Environment Installations
FTTA BBU RRU Systems
Data Video Transmission Networks
Optical Fiber Access for Mobile Base Stations

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom manufacturing solutions.

Customized Logo Implementation
Label/PE Bag/Carton Design Customization
