Home > Products> Optical Fiber System> ZCSC18-A58 Reusable SC APC Fiber Fast Connector with Fast Assembly and High Installation Success Rate for FTTH

ZCSC18-A58 Reusable SC APC Fiber Fast Connector with Fast Assembly and High Installation Success Rate for FTTH

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Highlight:

Reusable fast connector sc apc

FTTH fiber fast connector

sc apc fast connect fiber connectors

Product Description

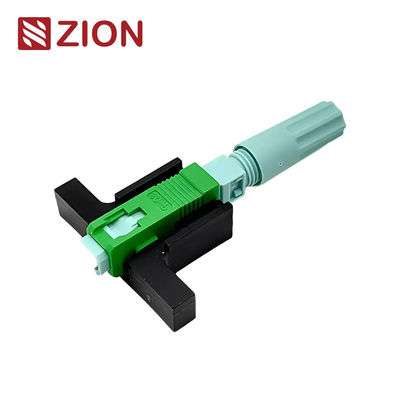

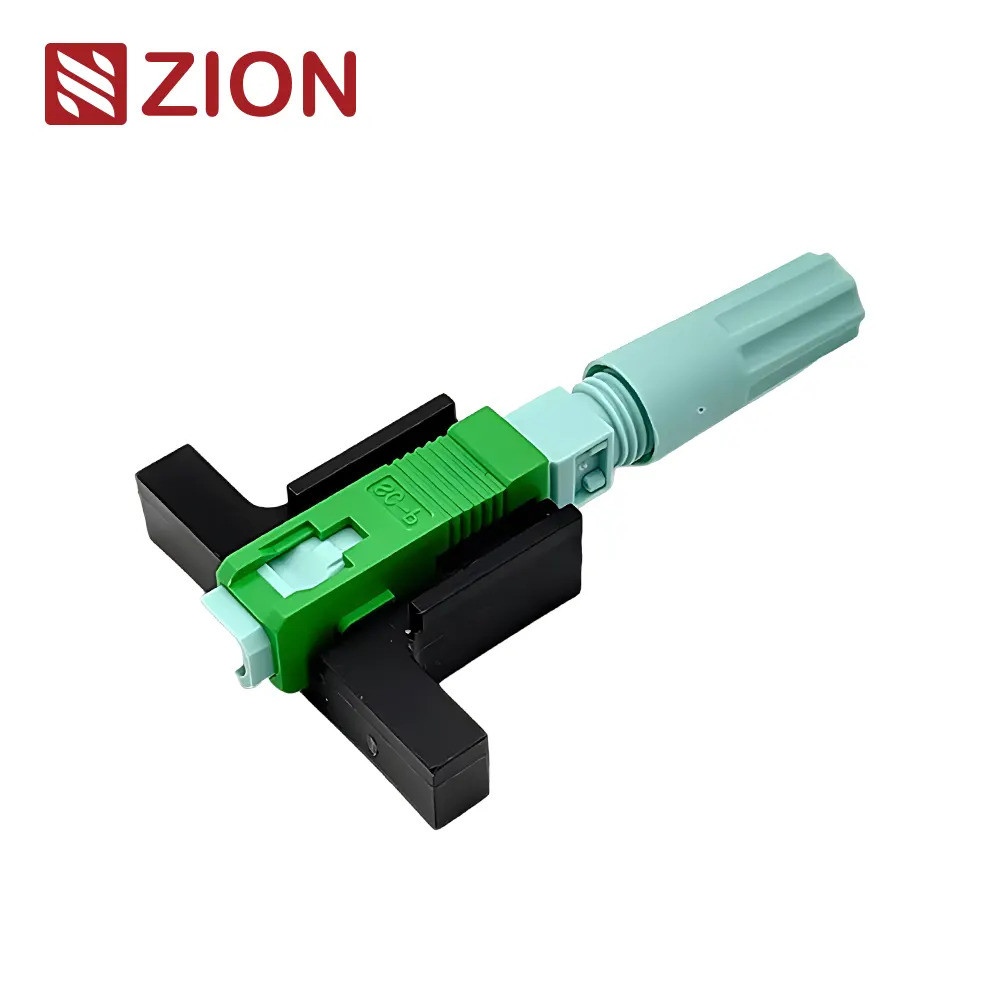

ZCSC18-A58 SC APC Reusable Fiber Fast Connector In FTTH

Zion Code and Description

Zion Code	Zion Description
7234042	ZCSC18-A58 SC APC Fast Assembly Connector

Product Features

High cost-effective fiber optic fast connector ensuring installation quality and efficiency
Original unique physical design with injected glue and grinding - no consumables required during installation
Embedded fiber optic structure for enhanced performance
High installation quality, success rate, and installation speed
Reusable design with easy operation
Convenient and portable for field use

Product Overview

ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optic fibers or optic cables to form a continuous optic path. It has been widely used in optic fiber transmission lines, optic fiber distribution frames, and optic fiber testing instruments and meters. These connectors feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range, making them your optimal choice for fiber optic connectivity solutions.

SC FAST Field Fiber Optic Connector Specifications

Technical Parameters

Parameter	ZCSC18-A58
Length	58mm
Ferrules	SC-SM/APC
Insertion Loss (dB)	AVG≤0.3dB MAX≤0.5dB
Return Loss (dB)	UPC≥45dB / APC≥50dB
Operating Temperature (℃)	-20~+75℃
Storage Temperature (℃)	-40~+85℃
Mating Times	500 Times
Cable Diameter	Drop cable: 2.03.0mm/2.05.0mm Round cable: 5.0mm/3.0mm/2.0mm/0.9mm

Applications

FTTH & Outdoor Fiber Terminal End
Harsh Environment Installations
FTTA BBU RRU Systems
Data Video Transmission
Optical Fiber Access of Mobile Base Station

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom manufacturing solutions.

Customized Logo Implementation
Label/PE Bag/Carton Design Services
