ZCSC09-U50 SC UPC Fast Assembly Reusable Fiber Optic Fast Connector with High Installation Success Rate

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Highlight:

SC UPC optical fiber fast connector

Assembly optical fiber fast connector

Product Description

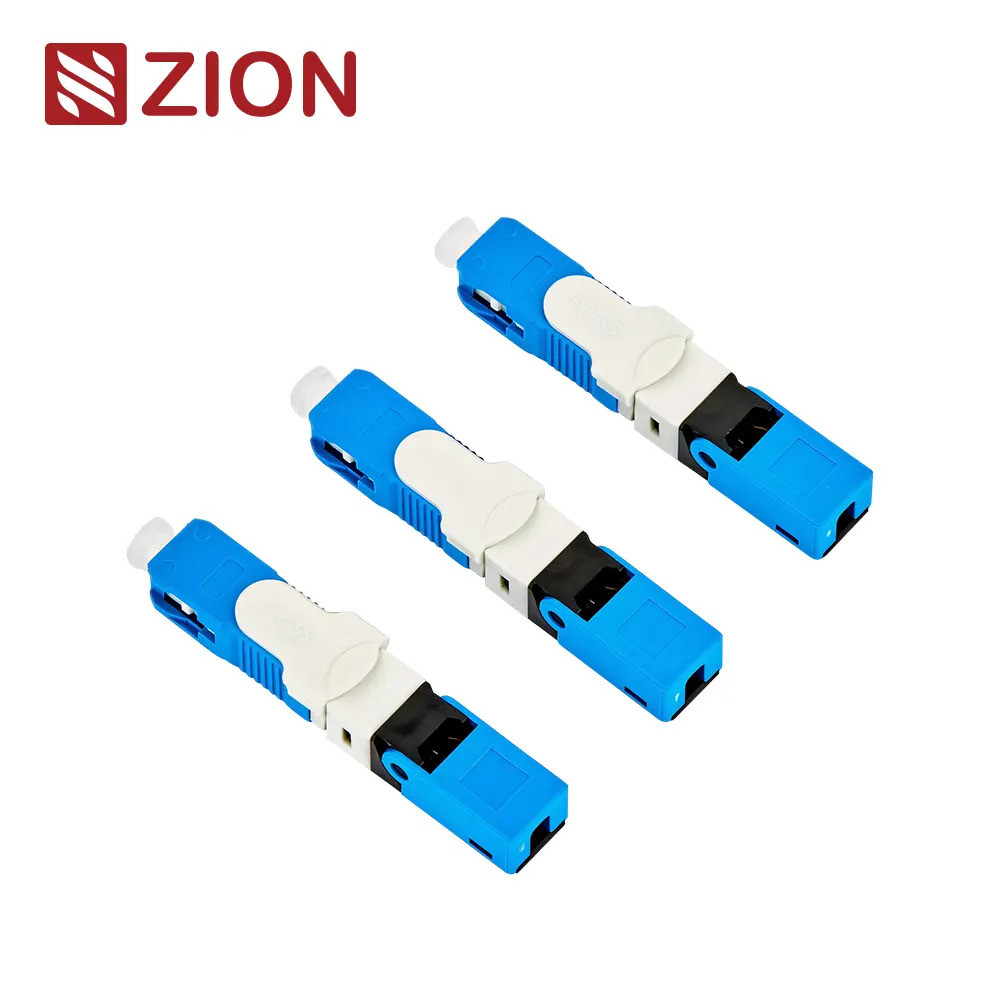

ZCSC09-U50 SC UPC Assembly Optical Fiber Fast Connector

Zion Product Codes

Zion Code	Zion Description
7234033	ZCSC09-U50 SC UPC Fast Assembly Connector

Product Features

High cost-effective fiber optic fast connector ensuring installation quality and efficiency
Original crimping design with injected glue - no grinding or consumables required during installation
Embedded fiber optic structure for superior performance
High installation quality, success rate, and installation speed
Reusable design with easy operation
Compact and convenient for field use

Product Overview

ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optical fibers or optical cables to form a continuous optical path. It has been widely used in optical fiber transmission lines, optical fiber distribution frames, and optical fiber testing instruments. Our connectors feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range, making them your optimal choice for fiber optic connectivity.

SC FAST Field Fiber Optic Connector Specifications

Technical Parameters

Parameter	ZCSC09-U50
Length	50mm
Ferrules	SC-SM/UPC
Insertion Loss (dB)	AVG≤0.3dB MAX≤0.5dB
Return Loss (dB)	UPC≥50dB / APC≥55dB
Operating Temperature (℃)	-20~+75℃
Storage Temperature (℃)	-40~+85℃
Mating Times	500 Times
Cable Diameter	Drop cable: 23.0mm / 2.05.0mm / 2.0*1.6mm

Applications

FTTH & Outdoor Fiber Terminal End
Harsh Environment Installations
FTTA BBU RRU Connections
Data Video Transmission Systems
Optical Fiber Access for Mobile Base Stations

OEM/ODM Services Available

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team. We provide:

Customized Logo Implementation
Label/PE Bag/Carton Design Services
