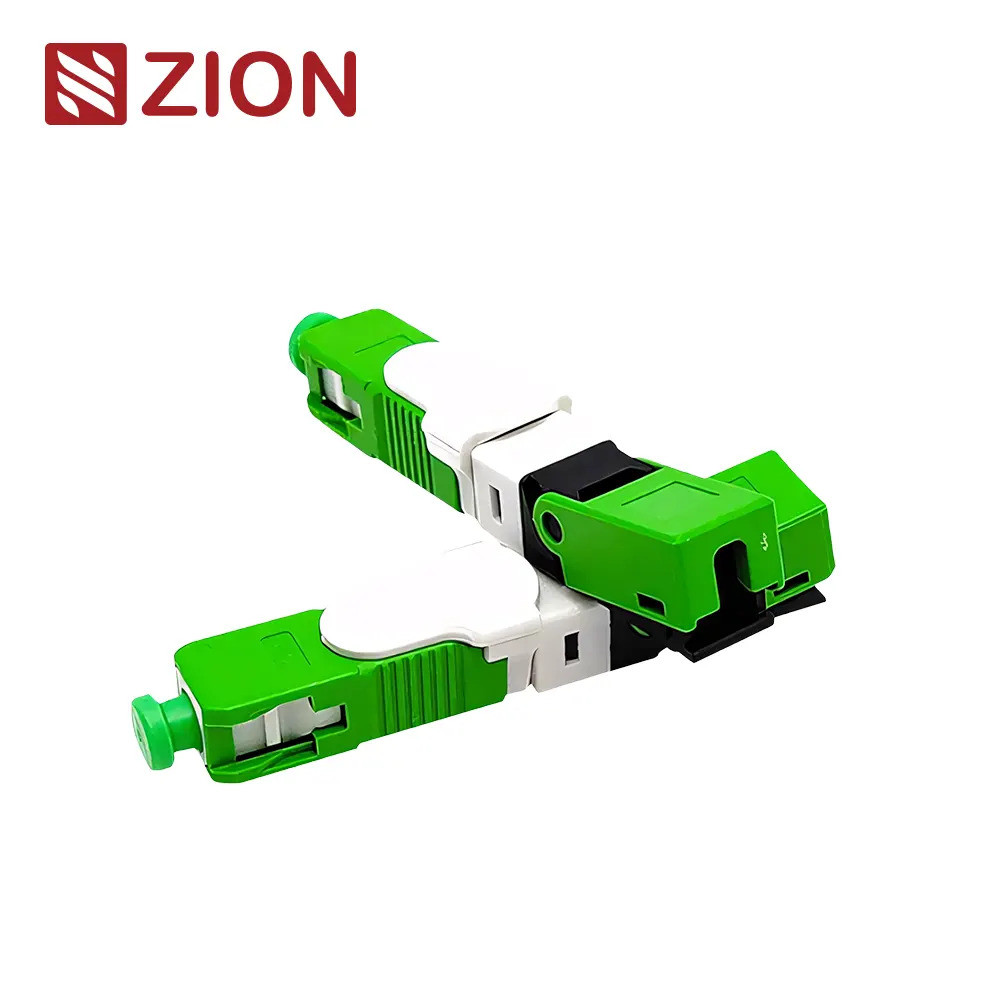

ZCSC09-A50 SC APC Fast Assembly Reusable Fiber Optic Connector with High Installation Success Rate

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Highlight:

SC quick connect fiber optic connectors

APC quick connect fiber optic connectors

Product Description

ZCSC09-A50 SC APC Fast Assembly Quick Connect Fiber Optic Connectors

Product Identification

Zion Code	Zion Description
7234032	ZCSC09-A50 SC APC Fast Assembly Connector

Key Features

High cost-effective fiber optic fast connector ensuring installation quality and efficiency

Original crimping design with injected glue and grinding - no consumables required

Embedded fiber optic structure for superior performance

High installation quality, success rate, and speed

Reusable design with easy operation

Compact and convenient for field use

Product Overview

ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optic fibers or optic cables to form a continuous optic path. It has been widely used in optic fiber transmission lines, optic fiber distribution frames, and optic fiber testing instruments and meters. These connectors feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range, making them your optimal choice for reliable connectivity.

SC FAST Field Fiber Optic Connector Specifications

Technical Parameters

Parameter	ZCSC09-A50
Length	50mm
Ferrules	SC-SM/APC
Insertion Loss (dB)	AVG≤0.3dB MAX≤0.5dB
Return Loss (dB)	UPC≥50dB / APC≥55dB
Operating Temperature (℃)	-20~+75℃
Storage Temperature (℃)	-40~+85℃
Mating Times	500 Times
Cable Diameter	Drop cable: 23.0mm / 2.05.0mm / 2.0*1.6mm

Applications

FTTH & Outdoor Fiber Terminal End
Harsh Environment Installations
FTTA BBU RRU Systems
Data Video Transmission
Optical Fiber Access of Mobile Base Station

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team. We provide customized solutions including:

Customized Logo Implementation
Label/PE Bag/Carton Design Services
