ZCSC07-U50 SC UPC Fast Assembly Connector with High Installation Quality Reusable Embedded Fiber Optic Structure for FTTH

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Highlight:

sc upc quick connector

sc fiber optic fast connector

Product Description

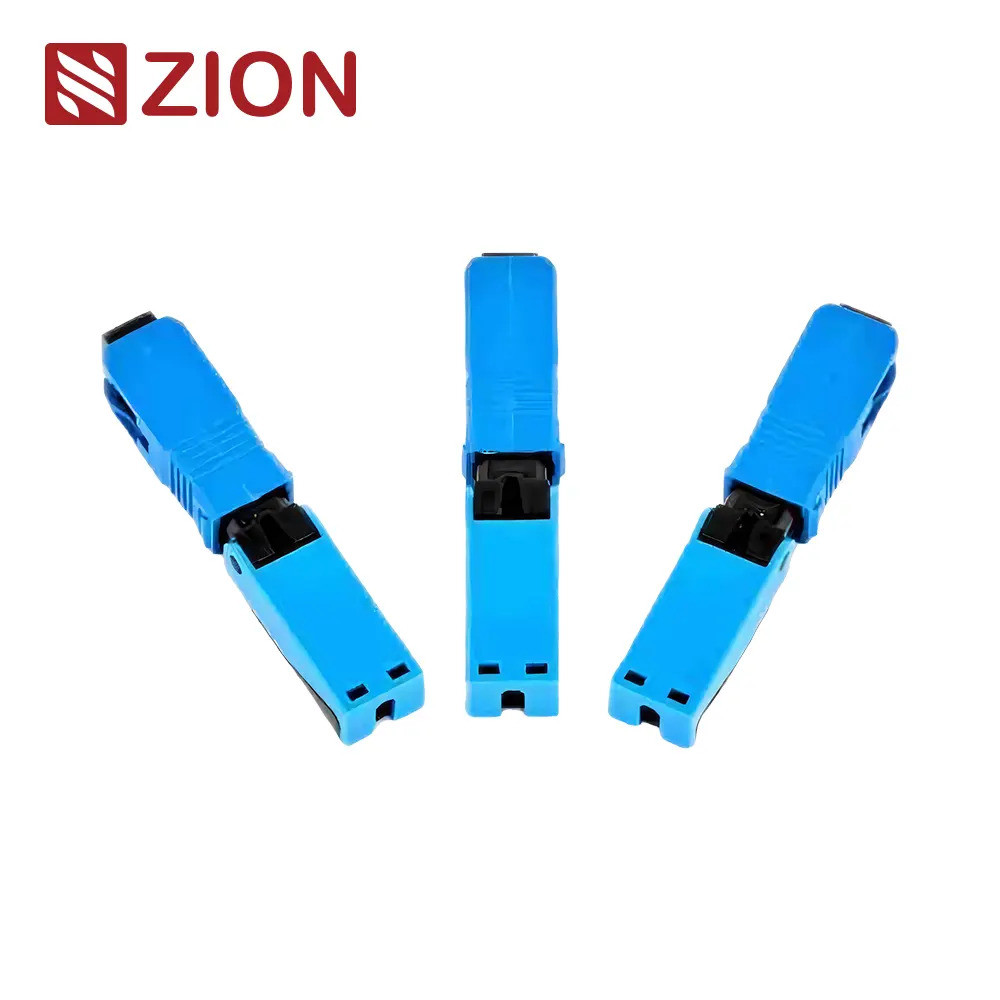

ZCSC07-U50 SC UPC Fast Assembly Connector For Fiber Optic

Product Identification

Zion Code	Zion Description
7234031	ZCSC07-U50 SC UPC Fast Assembly Connector

Key Features & Benefits

High cost-effective fiber optic fast connector ensuring installation quality and efficiency
Original crimping design with injected glue and grinding - no consumables required during installation
Embedded fiber optic structure for enhanced performance
High installation quality, success rate, and installation speed
Reusable design with easy operation
Compact and convenient for field use

Product Overview

ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optic fibers or optic cables to form a continuous optic path. It has been widely used in optic fiber transmission lines, optic fiber distribution frames, and optic fiber testing instruments and meters. As one of the most commonly used optic passive devices, our connectors feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range.

SC FAST Field Fiber Optic Connector Specifications

Technical Parameters

Parameter	ZCSC07-U50
Length	50mm
Ferrules	SC-SM/UPC
Insertion Loss (dB)	AVG≤0.3dB MAX≤0.5dB
Return Loss (dB)	UPC≥50dB / APC≥55dB
Operating Temperature (℃)	-20~+75℃
Storage Temperature (℃)	-40~+85℃
Mating Times	500 Times
Cable Diameter	Drop cable: 2.03.0mm/2.05.0mm

Applications

FTTH & Outdoor Fiber Terminal End
Harsh Environment Installations
FTTA BBU RRU
Data Video Transmission Systems
Optical Fiber Access of Mobile Base Stations

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team. Customization options include:

Customized Logo Implementation
Label/PE Bag/Carton Design
