SC APC Fast Assembly Connector with Long Life and High Installation Quality for Fiber Optic Systems

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Highlight:

sc quick connector

sc apc fast connector

Product Description

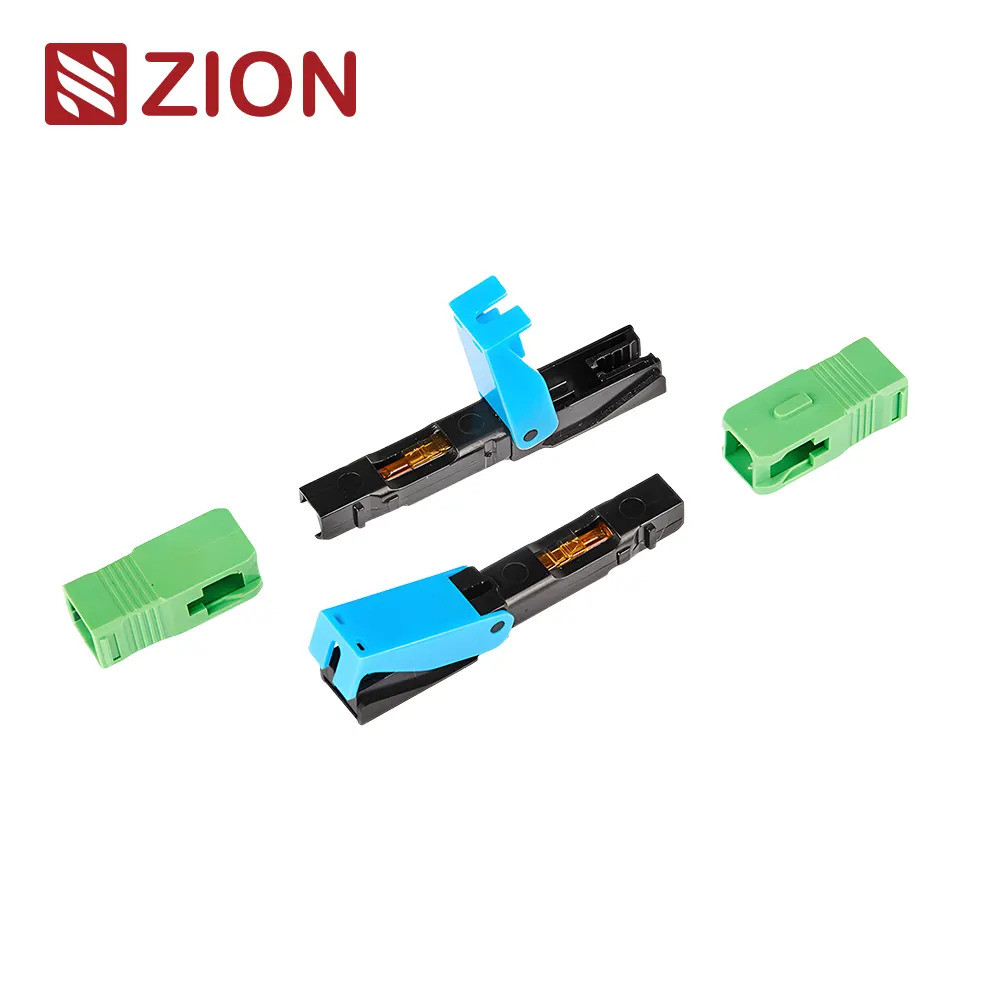

ZCSC07-A50 SC APC Fast Assembly Connector Long Life

Product Identification

Zion Code	Zion Description
7234030	ZCSC07-A50 SC APC Fast Assembly Connector

Key Features & Benefits

High cost-effective fiber optic fast connector ensuring installation quality and efficiency
Original crimping design with injected glue and grinding - no consumables required during installation
Embedded fiber optic structure for enhanced performance
High installation quality, success rate, and installation speed
Reusable design with easy operation
Portable and convenient for field use

Product Overview

ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optical fibers or optical cables to form a continuous optical path. It has been widely used in optical fiber transmission lines, optical fiber distribution frames, and optical fiber testing instruments. The connectors feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range.

SC FAST Field Fiber Optic Connector Specifications

Technical Parameters

Parameter	ZCSC07-A50
Length	50mm
Ferrules	SC-SM/APC
Insertion Loss (dB)	AVG≤0.3dB MAX≤0.5dB
Return Loss (dB)	UPC≥50dB / APC≥55dB
Operating Temperature (℃)	-20~+75℃
Storage Temperature (℃)	-40~+85℃
Mating Times	500 Times
Cable Diameter	Drop cable: 2.03.0mm / 2.05.0mm

Applications

FTTH & Outdoor Fiber Terminal End
Harsh Environment Installations
FTTA BBU RRU Systems
Data Video Transmission
Optical Fiber Access for Mobile Base Stations

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team. We provide:

Customized Logo Implementation
Label/PE Bag/Carton Design Services
