Home > Products> Optical Fiber System> ZCSC04-A50 SC APC Fast Assembly Fiber Optic Connector with High Installation Success Rate Reusable and Embedded Fiber Optic Structure

ZCSC04-A50 SC APC Fast Assembly Fiber Optic Connector with High Installation Success Rate Reusable and Embedded Fiber Optic Structure

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Highlight:

SC APC fiber optic fast connector

Assembly fiber optic fast connector

Product Description

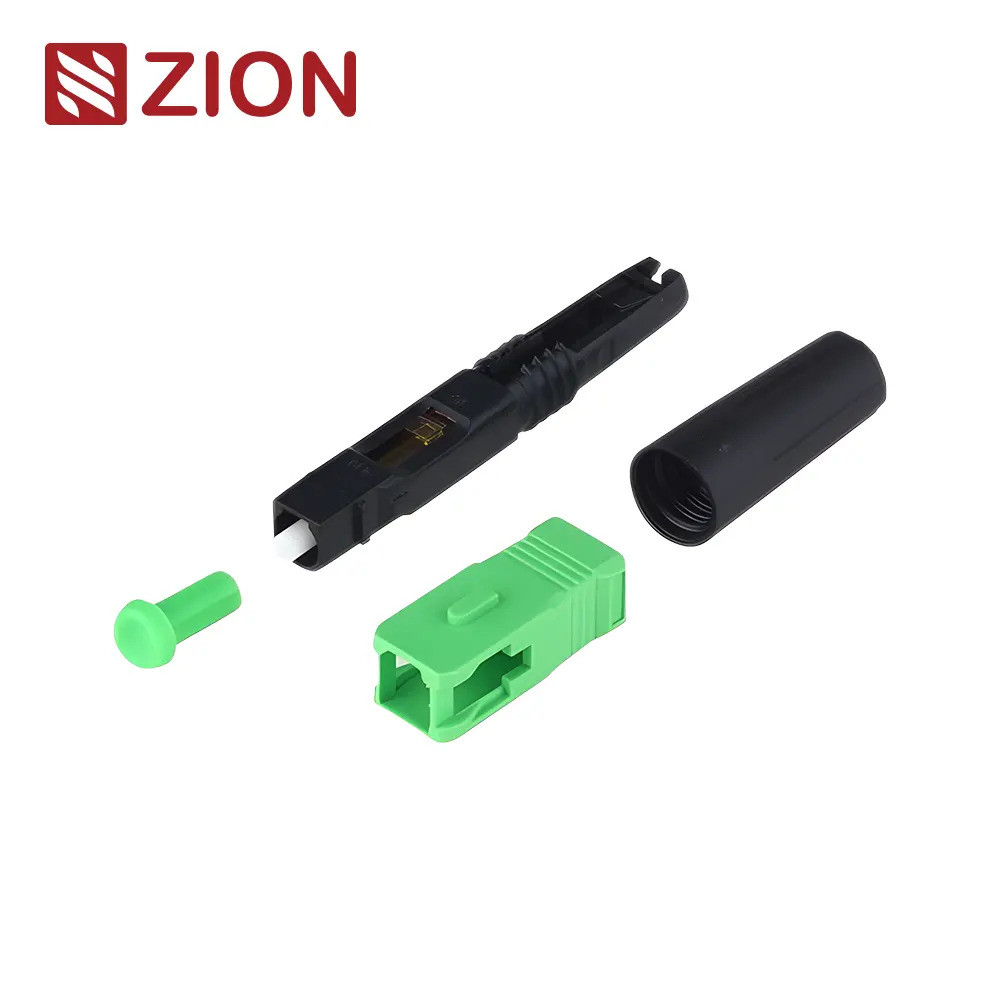

ZCSC04-A50 SC APC Assembly Fiber Optic Fast Connector

Zion Code and Description

Zion Code	Zion Description
7234028	ZCSC04-A50 SC APC Fast Assembly Connector

Product Features

High cost-effective fiber optic fast connector ensuring installation quality and efficiency
Original unique physical design with injected glue and grinding - no consumables required during installation
Embedded fiber optic structure
High installation quality, success rate, and installation speed
Reusable design with easy operation
Convenient and portable

Product Overview

ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optic fibers or optic cables to form a continuous optic path. It has been widely used in optic fiber transmission lines, optic fiber distribution frames, and optic fiber testing instruments and meters. These connectors feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range, making them your optimal choice.

SC FAST Field Fiber Optic Connector Specifications

Technical Parameters

Parameter	ZCSC04-A50
Length	50mm
Ferrules	SC-SM/APC
Insertion Loss (dB)	AVG≤0.3dB MAX≤0.5dB
Return Loss (dB)	UPC≥50dB / APC≥55dB
Operating Temperature (℃)	-20~+75℃
Storage Temperature (℃)	-40~+85℃
Mating Times	500 Times
Cable Diameter	Drop cable: 2.03.0mm/2.05.0mm Round cable: 0.9mm (0.9 with tail)

Applications

FTTH & Outdoor Fiber Terminal End
Harsh Environment Applications
FTTA BBU RRU
Data Video Transmission
Optical Fiber Access of Mobile Base Station

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom manufacturing.

Customized Logo
Label/PE bag/Carton design
