SC UPC Fast Assembly Connector - Reusable Fiber Optic Fast Connector with High Installation Success Rate and Embedded Fiber Optic Structure

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Highlight:

SC UPC Assembly Fast Connector

Convenient To Carry fast connector

Product Description

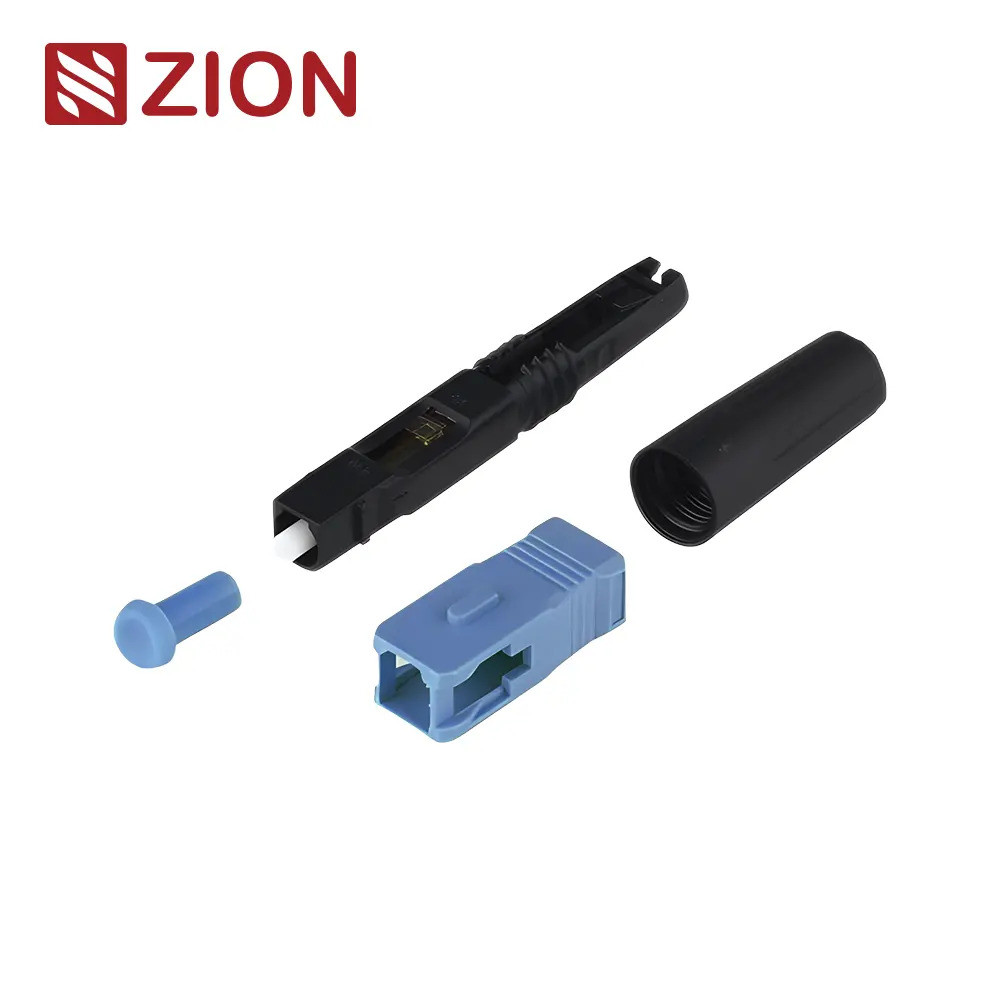

ZCSC04-U50 SC UPC Assembly Fast Connector

Product Identification

Zion Code	Zion Description
7234028	ZCSC04-U50 SC UPC Fast Assembly Connector

Key Features

Cost-Effective High-performance fiber optic fast connector ensuring installation quality and efficiency

Innovative Design Unique crimping mechanism with injected glue and grinding - no consumables required

Embedded Structure Advanced embedded fiber optic design for superior performance

High Success Rate Exceptional installation quality, success rate, and speed

Reusable Easy operation with reusable capability and convenient portability

Product Overview

ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optic fibers or optic cables to form a continuous optic path. Widely used in fiber optic transmission lines, distribution frames, and testing instruments, it represents one of the most essential passive devices in current use. Our connectors feature high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range - making them your optimal choice.

SC FAST Field Fiber Optic Connector Specifications

Technical Parameters

Parameter	ZCSC04-U50
Length	50mm
Ferrules	SC-SM/UPC
Insertion Loss (dB)	AVG≤0.3dB MAX≤0.5dB
Return Loss (dB)	UPC≥50dB / APC≥55dB
Operating Temperature (℃)	-20~+75℃
Storage Temperature (℃)	-40~+85℃
Mating Times	500 Times
Cable Diameter	Drop cable: 2.03.0mm/2.05.0mm Round cable: 0.9mm (0.9 with tail)

Applications

FTTH & Outdoor Fiber Terminal End
Harsh Environment Installations
FTTA BBU RRU Systems
Data Video Transmission
Optical Fiber Access for Mobile Base Stations

OEM/ODM Services

ZION Communication leverages our professional R&D team to provide comprehensive OEM/ODM solutions with extensive production experience.

Customized Logo Integration
Complete Label/PE Bag/Carton Design Services
