G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours For High Performance Connectivity

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	MTRJ

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G652D , G657A1/2 , G655	Connector:	MTRJ
Jacket:	LSZH Or PVC...	Color:	12 Colours As Per IEC 60304
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	MTRJ Connector Fiber Patch Cord , Fiber Optic Patch Cord 12 Colours , G652D Fiber Patch Cord

Product Description

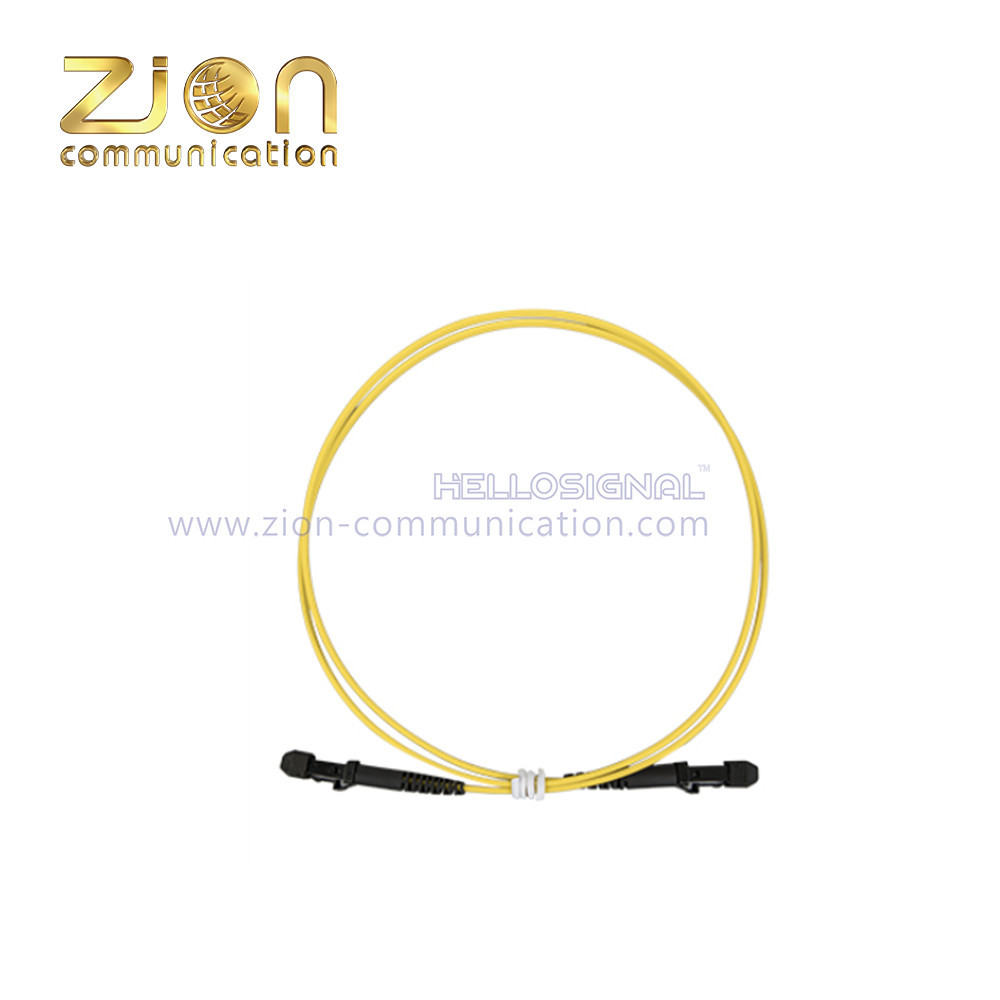

G652D MTRJ To MTRJ Fiber Optic Patch Cord With 12 Colours

High-performance G652D MTRJ to MTRJ fiber optic patch cord available in 12 distinct colors. Our comprehensive range includes SC, LC, FC, ST, APC, and UPC connectors in 0.9mm, 2.0mm, and 3.0mm diameters for both single mode and multimode applications, featuring PVC and LSZH jacket materials.

Fiber Patch Cord - MTRJ Patch Cords

MTRJ SM

MTRJ MM

Structure Information

Cord Type	Patch Cord & Pigtail Specifications
A Side	Connector Type: SC / LC / ST / FC / D4 / E2000 / MU Ferrule Type: UPC \| APC
B Side	Connector Type: SC / LC / ST / FC / D4 / E2000 / MU Ferrule Type: UPC \| APC
Fiber Model	SM: G652D \| G657A1 \| G657A2 \| G657B3 \| G655 MM: OM1 \| OM2 \| OM3-150 \| OM3-300 \| OM4-550 \| OM5
Cable Diameter	Φ0.9mm \| Φ2.0mm \| Φ3.0mm
Core Number	SX \| DX
Jacket	Material: PVC \| LSZH \| OFNR \| RE \| TPU Color: Yellow \| Blue \| Green \| Customized
Cable Length	1m \| 2m \| 3m \| 5m \| 10m

Technical Specification

Parameter	Single Mode	Multimode
Insertion Loss (Typical)	≤0.2 dB	≤0.2 dB
Insertion Loss (Maximum)	≤0.3 dB	≤0.3 dB
Return Loss	APC: ≥60 dB UPC: ≥50 dB	APC: ≥35 dB UPC: ≥35 dB
Mating Durability	≤0.2 dB
Durability	≥1000 times
Operating Temperature	-20°C to 85°C (-40°C to 85°C extended)
