MU APC Female to Male Fixed Fiber Optic Attenuator with 1-25dB Range and High Return Loss

MU APC Female to Male Fixed Fiber Optic Attenuator with 1-25dB Range and High Return Loss
MU APC Female to Male Fixed Fiber Optic Attenuator with 1-25dB Range and High Return Loss
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Mating Durability（cycle）: ≥1000 Max Optical Input Power(mw): 200
Attenuation Tolerance(dB): 1～5db±0.5db &6～25db±10% Vibration Hz(2hr): 10～55
Operating Temperature (℃）: -5 ~ +85 Storage Temperature (℃）: -40 ~ +75
Highlight:

MU APC Male Optical Attenuator

,

Plug In Fiber Optic Attenuator

,

MU APC Female Optical Attenuator

Product Description

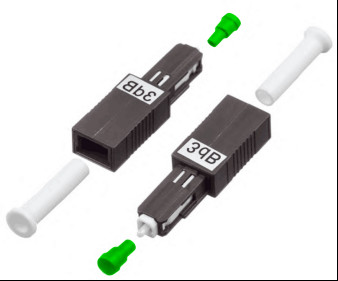

MU APC Female to MU APC Male Plug-In Fixed Fiber Optic Attenuator (1-25dB)
MU APC Female to Male Fixed Fiber Optic Attenuator with 1-25dB Range and High Return Loss 0
Product Overview

The MU APC Female to MU APC Male Plug-In Fixed Fiber Optic Attenuator provides precise control of optical signal levels with attenuation values ranging from 1 to 25dB. Designed for high-density installations, this attenuator ensures stable performance and reliable signal management in fiber optic networks.

Product Specifications
Zion Code 7236009
Zion Description MU APC Female to MU APC male Plug-in Fixed Fiber Optical Attenuator(1-25dB)
Product Features
  • Precise Attenuation Values
  • Low PDL & Insertion Loss
  • Precise Reflection Polishing
  • Fast Connection
  • Stable attenuation, highly Reliable
  • Compliant with industry green initiatives (ROHS)
  • GR910 Compliant
Technical Specifications
Parameter MU, E2000
Operating Wavelength (nm) SM: 1310-1550, MM: 850
Insertion Loss (dB) ≤ 0.6
Return Loss (dB) UPC≥50db, APC≥60db, PC≥35db
Repeatability (dB) ≤ 0.2
Resolution (dB) ≤ 0.1
Wavelength Dependent Loss (dB) WDL≤ 0.3 (C & L Band)
Polarization Dependent Loss (dB) PDL≤ 0.2
Temperature Dependent Loss (dB) TDL≤ 0.2
Tolerance for 1-5dB Attenuation (dB) ±0.5
Tolerance for 6-25dB Attenuation ±10%
Mating Durability (cycles) ≥1000
Max Optical Input Power (mw) 200
Vibration (hz, 2hr) 10～55
Operating Temperature (℃) -5 ~ +85
Storage Temperature (℃) -40 ~ +75
Applications

Fiber optic attenuators are essential components used to reduce optical signal energy, prevent receiver distortion from excessive input power, and enable precise power level adjustments in various applications including:

  • CWDM & DWDM Systems
  • Data Center Networks
  • CATV Systems
  • Test Equipment and Instrumentation
Related Products
MU APC Female to Male Fixed Fiber Optic Attenuator with 1-25dB Range and High Return Loss 1
MU APC Female to MU APC Male (1-25dB)
Packaging

Standard carton sizes: 34×22×15 cm, 44×34×24 cm, 54×39×34 cm. Custom packaging options available.

OEM/ODM Services

Customized solutions including logo, label, PE bag, and carton design services available.
