1310-1550nm 2/3/5/7/10 dB SC LC FC ST/APC UPC Low Insertion Loss High Return Loss OPTIC ATTENUATOR
| Zion Code | Zion Description | |||||||

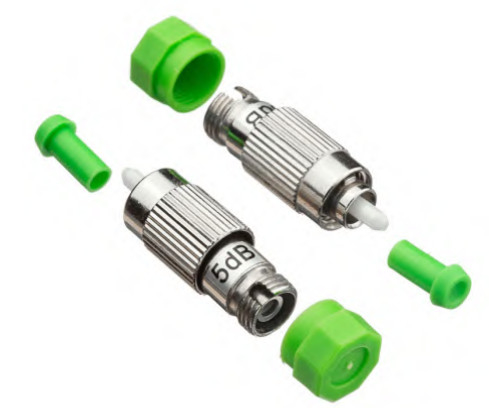

| 7236007 | FC APC Female to FC APC male Plug-in Fixed Fiber Optical Attenuator(1-25dB) | |||||||
| Female to male Fixed attenuators from OMC offer defined control of optical signals in both integrated and add-on products. Depending on the project or need, fixed attenuators can limit (attenuate) the amount of light passing through to the exact levels your project or application requirement. These precise attenuation levels provide for highly accurate performance. | ||||||||
Features
| Precise Attenuation Values | ||||||||
| Low PDL&Insertion Loss | ||||||||
| Precise Reflection Polishing | ||||||||
| Fast Connection | ||||||||
| Stable attenuation, highly Reliable | ||||||||
| Complies with industry green initiative such as ROHS | ||||||||
| GR910 Compliant |
Attenuator Application:
ZION COMMUNICATIONS’ Fiber Optic Attenuator is a kind of optical device that can reduce the energy of optical signal. It is used to attenuate the input optical power and avoid the distortion caused by the optical receiver due to the super strong input optical power.Fiber Optic Attenuator, as a kind of optical passive device, is used for debugging optical power performance, debugging and calibration of optical fiber instrument in optical communication system, and optical fiber signal attenuation. The product is made of attenuating fiber doped with metal ions, which can adjust the optical power to the required level.Mainly used in: 1.CWDM&DWDM,2. data center networks,3. CATV systems,4.Test Equipment |
||||||||
| Connector Type | LC, SC, FC, ST | |||||||
| |
LC optical fiber attenuator: used in LC optical fiber interface, the connector to connect SFP module, it is made by the easy-to-operate modular jack (RJ) latch mechanism. (Routers are commonly used) | |||||||
| |
SC optical fiber attenuator: applied to SC optical fiber interface, it looks very similar to RJ-45 interface, but the SC interface is flatter, the obvious difference is the contact piece inside, if it is 8 thin copper contacts, then It is an RJ-45 interface, if it is a copper column, it is an SC fiber interface. | |||||||
| |
FC optical fiber attenuator: applied to FC optical fiber interface, the external strengthening method is a metal sleeve, and the fastening method is a turnbuckle. Generally used on the ODF side (most used on the distribution frame) | |||||||
| |
ST optical fiber attenuator: applied to ST optical fiber interface, commonly used in optical fiber distribution frame, the shell is round, and the fastening method is turnbuckle. (For 10Base-F connection, the connector is usually ST type. Often used in optical fiber distribution frames) | |||||||
Characteristics:
| Parameter | FC, SC, LC,ST | |||||||
| Operating Wavelength(nm) | 1310-1550 | |||||||
| Insertion Loss (dB) | ≤ 0.6 | |||||||
| Return Loss (dB) | ≥45 | |||||||
| Repeatability (dB) | ≤ 0.2 | |||||||
| Resolution (dB) | ≤ 0.1 | |||||||
| Wavelength dependent loss(dB) | WDL≤ 0.3(CorLBand) | |||||||
| Polarization dependent loss(dB) | PDL≤ 0.2 | |||||||
| Temperature dependent loss(dB) | TDL≤ 0.2 | |||||||
| Tolerance for 1-5dB Attenuation(dB) | ±0.5 | |||||||
| Tolerance for 6-30dB Attenuation(nm) | ±10 | |||||||
| Mating Durability(cycle) | ≥1000 | |||||||
| Response time(dB/ms) | 3 | |||||||
| Attenuation control accuracy(dB) | ±0.5 | |||||||
| Supply voltage(DC) | ± 5V | |||||||
| Operating Temperature (℃) | -5 ~ +65 | |||||||
| Storage Temperature (℃) | -40 ~ +75 | |||||||
Named Rule
Packaging
| This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized. | ||||||||
OEM/ODM service for you
| OMC’s LC Female to LC male Fixed attenuator are available for SM UPC (1-25dB) and SM APC (1-25dB) |
| ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team. |
| • Customized Logo | |||||||
| • Label/PE bag/Carton design |
 |
