SC UPC Female to Male Fiber Optic Attenuator with Low Insertion Loss High Return Loss and Precise Attenuation Control

SC UPC Female to Male Fiber Optic Attenuator with Low Insertion Loss High Return Loss and Precise Attenuation Control
SC UPC Female to Male Fiber Optic Attenuator with Low Insertion Loss High Return Loss and Precise Attenuation Control
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Mating Durability（cycle）: ≥1000 Response Time(dB/ms): 3
Attenuation Control Accuracy(dB): ±0.5 Supply Voltage(DC): ± 5V
Operating Temperature (℃）: -5 ~ +65 Storage Temperature (℃）: -40 ~ +75
Highlight:

Fiber Optical Attenuator Low Insertion Loss

,

2dB Fiber Optical Attenuator

,

Fiber Optic Attenuator 25dB

Product Description

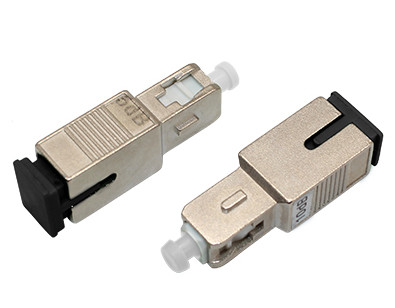

SC UPC Female to SC UPC Male Fiber Optical Attenuator
Precision fiber optic attenuator with low insertion loss for signal control in optical communication systems.
SC UPC Female to Male Fiber Optic Attenuator with Low Insertion Loss High Return Loss and Precise Attenuation Control 0
Product Overview
SC UPC Female to SC UPC Male Plug-In Fixed Fiber Optical Attenuator (1-25dB) provides defined control of optical signals with precise attenuation levels for highly accurate performance.
Zion Code Zion Description
7237004 SC UPC Female to SC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
SC UPC Female to Male Fiber Optic Attenuator with Low Insertion Loss High Return Loss and Precise Attenuation Control 1
Key Features
  • Precise Attenuation Values
  • Low PDL & Insertion Loss
  • Precision Reflection Polishing
  • Fast Connection
  • Stable attenuation, highly reliable
  • Compliant with industry green initiatives including ROHS
  • GR910 Compliant
Applications
Fiber Optic Attenuators reduce optical signal energy to prevent receiver distortion from excessive input power. Used for optical power performance debugging, instrument calibration, and signal attenuation in:
  • CWDM & DWDM Systems
  • Data Center Networks
  • CATV Systems
  • Test Equipment
SC UPC Female to Male Fiber Optic Attenuator with Low Insertion Loss High Return Loss and Precise Attenuation Control 2
Connector Types
Connector Type Description
LC Used in LC fiber interfaces with modular jack latch mechanism (commonly used in routers)
SC Applied to SC fiber interfaces, similar to RJ-45 but with copper contact pins
FC Applied to FC fiber interfaces with metal sleeve and turnbuckle fastening (typically used on ODF side)
ST Applied to ST fiber interfaces with round shell and turnbuckle fastening (common in fiber distribution frames)
Technical Specifications
Parameter FC, SC, LC, ST
Operating Wavelength (nm) 1310-1550
Insertion Loss (dB) ≤ 0.6
Return Loss (dB) ≥45
Repeatability (dB) ≤ 0.2
Resolution (dB) ≤ 0.1
Wavelength Dependent Loss (dB) WDL≤ 0.3 (C & L Band)
Polarization Dependent Loss (dB) PDL≤ 0.2
Temperature Dependent Loss (dB) TDL≤ 0.2
Tolerance for 1-5dB Attenuation (dB) ±0.5
Tolerance for 6-30dB Attenuation (nm) ±10
Mating Durability (cycles) ≥1000
Response Time (dB/ms) 3
Attenuation Control Accuracy (dB) ±0.5
Supply Voltage (DC) ± 5V
Operating Temperature (°C) -5 to +65
Storage Temperature (°C) -40 to +75
Related Products
Zion Code Product Code Description
7237001 ZC11FXAADXX LC APC Female to LC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237002 ZC11FXBBDXX LC UPC Female to LC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237003 ZC11FXCCDXX SC APC Female to SC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237004 ZC11FXDDDXX SC UPC Female to SC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237005 ZC12FXEEDXX ST APC Female to ST APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237006 ZC11FXFFDXX ST UPC Female to ST UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237007 ZC11FXGGDXX FC APC Female to FC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237008 ZC11FXHHDXX FC UPC Female to FC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
Packaging & Customization
Standard protective packaging with labeled cartons (34×22×15 cm, 44×34×24 cm, 54×39×34 cm). Custom packaging, logos, and OEM/ODM services available.
